- Summary
- Specifications
- Dimension(L*W*H):10190*2500*3700mm
- Weight:20000kg
- Power(W):203KW
- Model Number:HB30K
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Power Type:Diesel
- Certification:CE/ISO9001
- weight:20000.000kg
- Condition:New
- Moving Type:Other
- Color:Red
- Max. vertical conveying distance:30m
- Max. horizontal conveying distance:25.7m
- Productivity:100m3/h
- Theoretical Productivity:100m3/h
- Slewing radius:25.7m

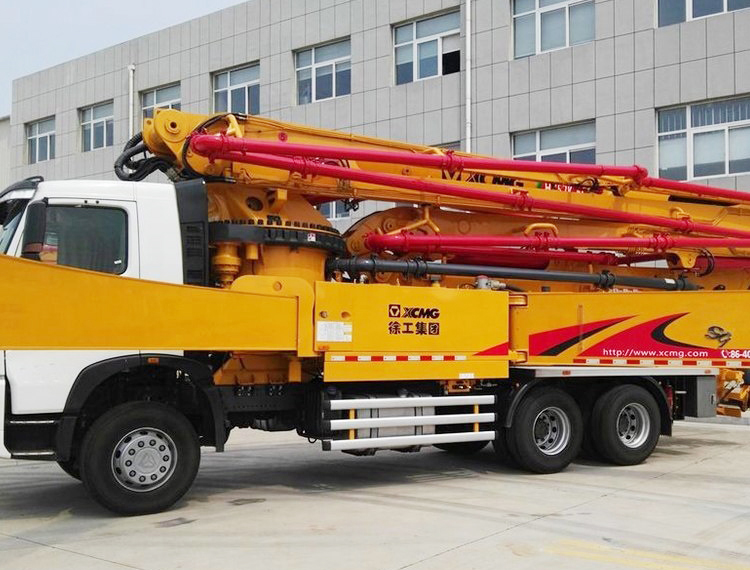

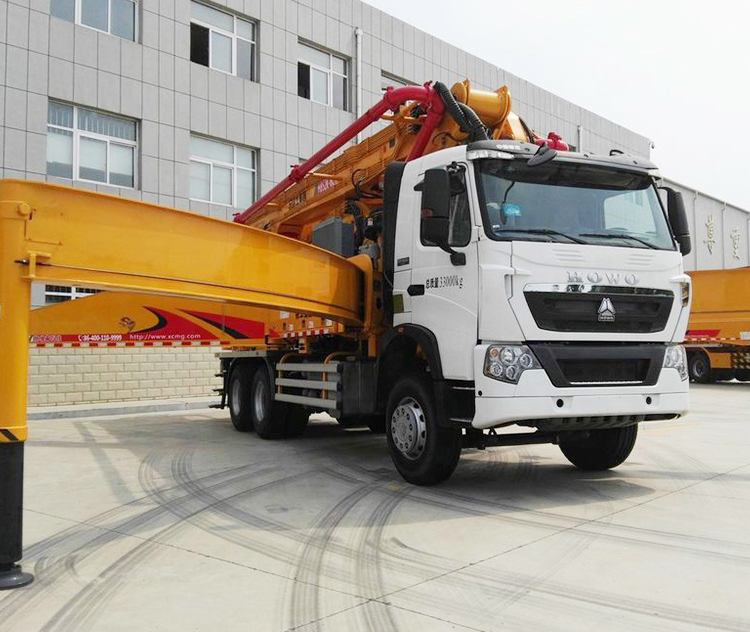

30m concrete pump truck HB30K China mini small truck
mounted concrete pump truck.
The HB30K concrete pump truck is equipped with more
advanced boom structure technology, more efficient skirt valve pump technology,
more stable supporting leg structure technology, more stable reversing buffer
technology, more reliable full hydraulic reversing technology, ultra-low
pressure loss hydraulic system technology, and more safe and intelligent
electrical control technology.
1.XCMG V7 series truck mounted concrete pump is a new
generation equipment which is developed by XCMG and SCHWING Germany technology.
2.It is highly reliable and durable with seven technical
highlights. More advanced boom structure technology, More efficient rock valve
pumping technology, Steadier stabilizer structure technology, Steadier
reversing buffering technology, more reliable fully-hydraulic reversing
technology, Ultra-low-pressure loss hydraulic system technology, safer and
smarter electrical control system.
Advantages and highlights:
* Large diameter (230 mm) Φ, large displacement (100 /
hour) pumping systems.
* Material absorption can reach more than 85%.
* Effectively reduce emissions with the reversing,
vulnerability of longer life.
* The pumping system adopts electric control reversing,
reversing faster and the system impact smaller.
* The actual pumping efficiency is more than 5% higher
than the conventional hydraulic control reversing system.
|
Description |
Unit |
Parameter value |
|
|
Outline dimension |
mm |
10190×2500×3700 |
|
|
Overall weight |
kg |
20000 |
|
|
Chassis |
Model |
ZZ5207M521GC1 |
|
|
Max. speed |
km/h |
90 |
|
|
Max. grade-ability |
% |
35 |
|
|
Wheelbase |
mm |
5200 |
|
|
Tire |
11.00R20 |
||
|
Engine |
Model |
MC07.28-30 |
|
|
Max. power |
kW |
203 |
|
|
Max. torque |
N·m/(r/min) |
1100/1200-1800 |
|
|
Displacement |
L |
6.87 |
|
|
Emission
standard |
Eruo III |
||
|
Pumping system |
Theoretical output |
m³/h |
100 |
|
Concrete
pumping pressure |
MPa |
8 |
|
|
Theoretical pumping times |
Time/min |
25 |
|
|
Delivery
cylinder diameter ×stroke |
mm |
φ230×1600 |
|
|
Max. diameter of pumping concrete |
mm |
40 |
|
|
Filling height |
mm |
1550 |
|
|
Concrete slump range |
cm |
8~23 |
|
|
Placing boom |
Reach height |
m |
29.6 |
|
Reach depth |
m |
18 |
|
|
Slewingradius |
m |
25.7 |
|
|
Slewing angle |
° |
±270 |
|
|
Unfolding
angle of the 1st section |
° |
90 |
|
|
Unfolding angle of the 2nd section |
° |
180 |
|
|
Unfolding
angle of the 3rd section |
° |
250 |
|
|
Unfolding angle of the 4th section |
° |
235 |
|
|
Unfolding
angle of the 5th section |
° |
||
|

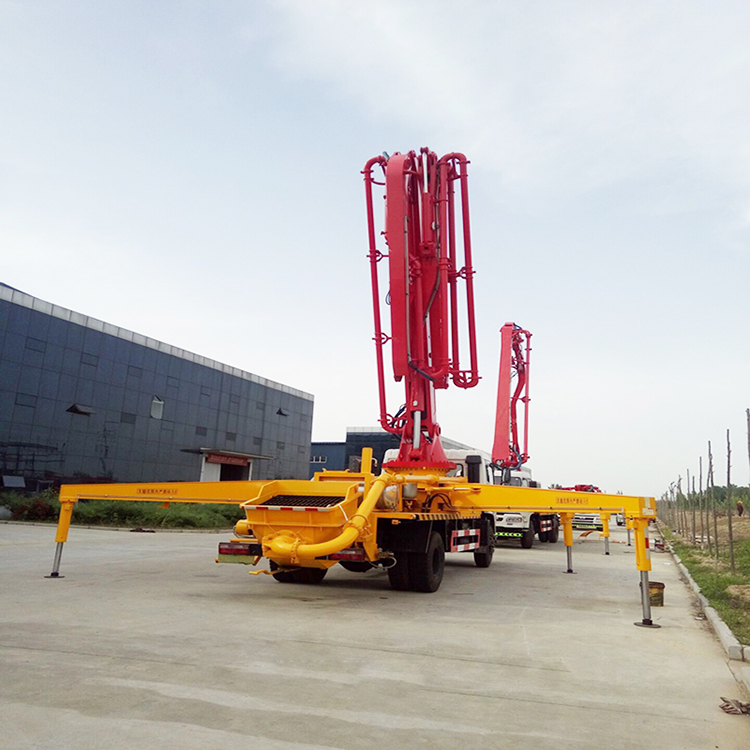

Stabilizer span |
Longitudinal span of stabilizer |
mm |
6100 |
|
Transverse
span of front stabilizer |
mm |
5555 |
|
|
Transverse span of rear stabilizer |
mm |
4810 |
|
|
Others |
Lubrication
method |
Automatic
lubrication |
|
|
Control method |
Manual/remote control |
||
|
Volume of
water box |
L |
400 |
|
