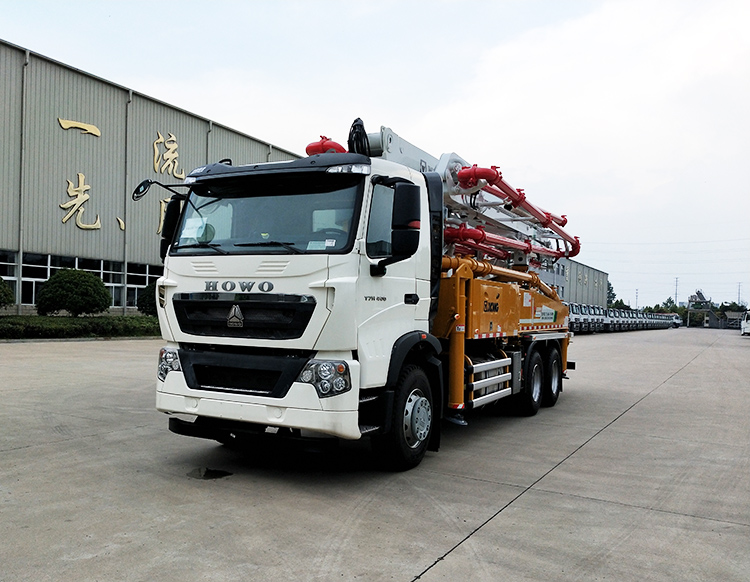

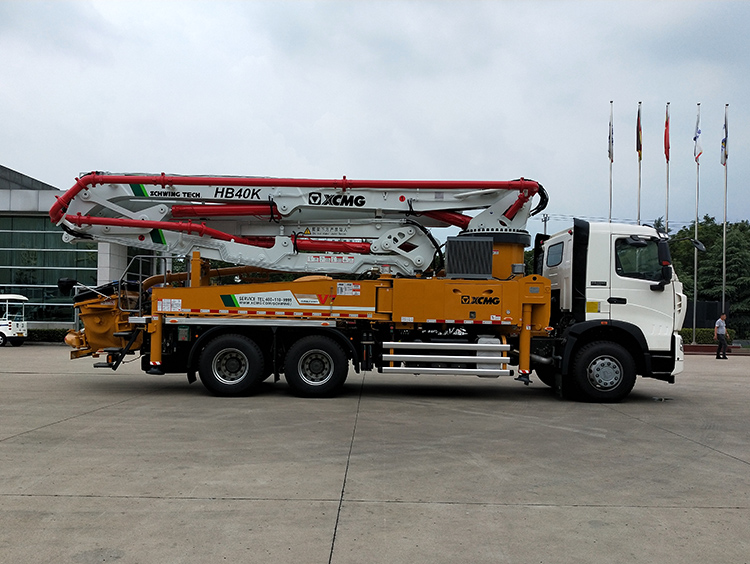

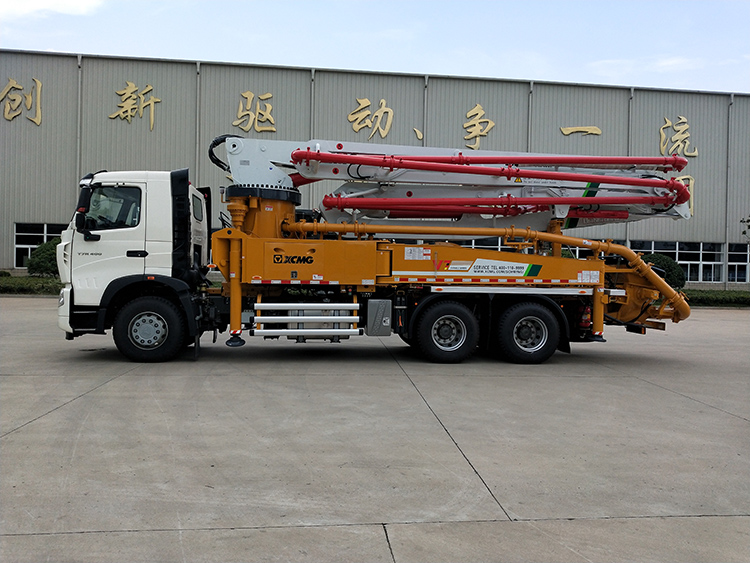

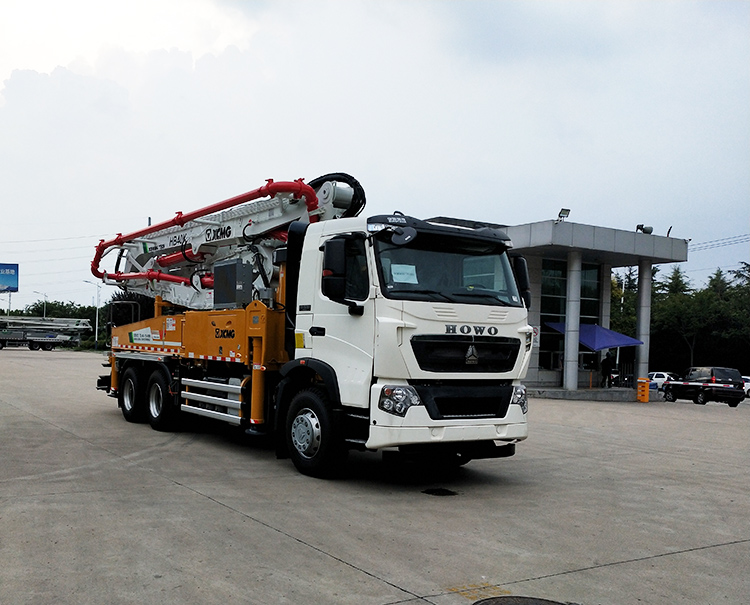

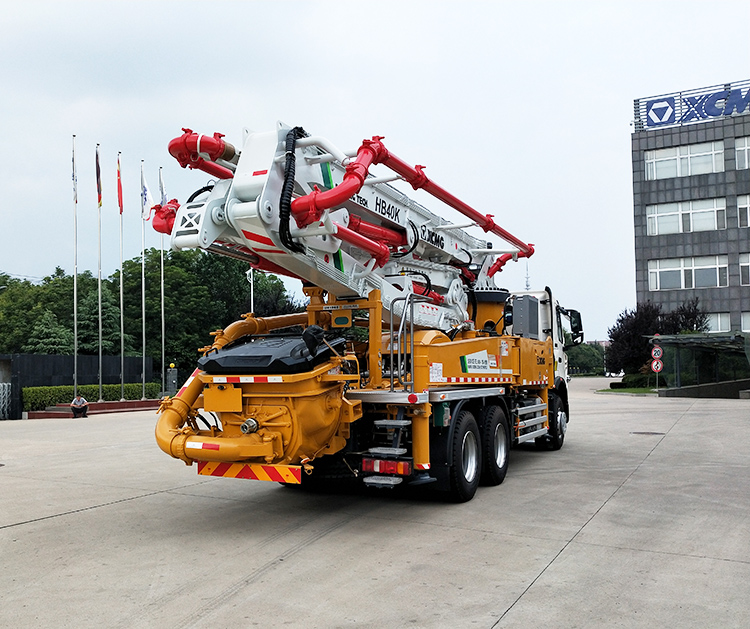

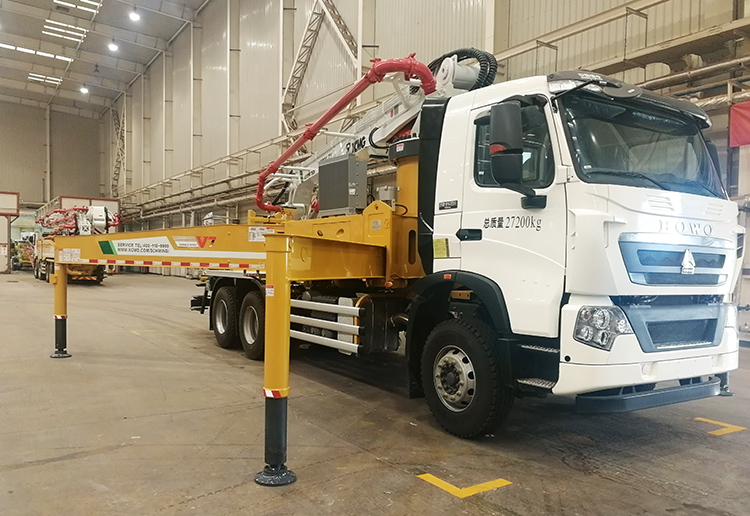

XCMG Schwing 40m China new concrete pump truck HB40V with Sinotruk HOWO chassis price

  • XCMG Schwing 40m China new concrete pump truck HB40V with Sinotruk HOWO chassis price
  • XCMG Schwing 40m China new concrete pump truck HB40V with Sinotruk HOWO chassis price
  • XCMG Schwing 40m China new concrete pump truck HB40V with Sinotruk HOWO chassis price
  • XCMG Schwing 40m China new concrete pump truck HB40V with Sinotruk HOWO chassis price
  • XCMG Schwing 40m China new concrete pump truck HB40V with Sinotruk HOWO chassis price
  • XCMG Schwing 40m China new concrete pump truck HB40V with Sinotruk HOWO chassis price

Share:
XCMG Schwing 40m China new concrete pump truck HB40V with Sinotruk HOWO chassis price
FOB for Concrete Mach Reference Price:Get Latest Price
$190000.00-$300000.00 1 / EA (Min. Order)
Model: HB40V
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG Schwing 40m China new concrete pump truck HB40V with Sinotruk HOWO chassis price
XCMG Schwing 40m China new concrete pump truck HB40V with Sinotruk HOWO chassis price
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
Summary
  • Dimension(L*W*H):11200*2525*3850mm
  • Weight:27200kg
  • Power(W):294kW
  • Model Number:HB40V
  • Brand Name:XCMG
  • Place of Origin:Jiangsu,China
  • Certification:CE/ISO9001
Specifications
  • weight:27200.000kg
  • Condition:New
  • Moving Type:Wheel
  • Color:Red
  • Emission:ChinaV
  • Theoretical:130m³/h
  • Reach height:39.1m
  • Reach depth:26.8n
  • Transfer tuble:Rock valve

XCMG Schwing 40m China new concrete pump truck HB40V with Sinotruk HOWO chassis price

XCMG Schwing 40m China new concrete pump truck HB40V with Sinotruk HOWO chassis.



The XCMG HB40V concrete pump truck is equipped with more efficient skirt valve pump technology, more stable reversing buffer technology, more reliable full hydraulic reversing technology.



It adopts Sinotruk HOWO chassis, which complies with China V emission standard, featuring with powerful output, large torque, high efficiency, energy conservation and strong off-road performance.



Advantages and highlights:



1.Ultimately Safe Boom.



2. Lower Structure of High Rigidity.



3.Hydraulic System of Outstanding Performance.



4.Effectively reduce emissions with the reversing, vulnerability of longer life.



5.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.





6.The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.

XCMG Schwing 40m China new concrete pump truck HB40V with Sinotruk HOWO chassis price

Category

Item

Unit

HB40V

Overall

Outline dimension

mm

11200×2525×3850

Overall weight

kg

27200

Brand

/

Sinotruk

Chassis

Model

/

ZZ5347V524HE1

Wheelbase

mm

4800+1400

Max.power

kW

294

Engine

Emission

/

ChinaV

Theoretical

m³/h

130

Pumping system

Concrete pumping pressure

Mpa

8

Theoretical pumping times

Times/min

2427

Placing boom

Reach height

m

39.1

Reach depth

m

26.8

Slewing radius

m

35.1

Others

Transfer tuble

/

Rock valve
