Summary
- Dimension(L*W*H):12510×2500×3990mm
- Weight:33000kg
- Power(W):297kw
- Model Number:HB48K
- Brand Name:XCMG
- Place of Origin:China
- Power Type:Diesel
- Certification:ISO9001
- Max.speed:90
Details
- Product Name:HB48K
- Display online time:2019-12-27
- weight:33000.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:wheel
- Chassis Manufacturer:Sinotruk
- Wheelbase:4800+1400mm
- Engine Max. power:297kw
- Emission standard:Eruo III
- Theoretical output:130m³/h
- Concrete pumping pressure:8MPa
- Theoretical pumping times:25Time/min
- Delivery cylinder diameter×stroke:φ260×2000mm
- Filling height:1580mm
- Placing boom structure:6RZ
- Reach height/depth/Slewing radius:47.5/34/43.5m
- Slewing angle:±270°

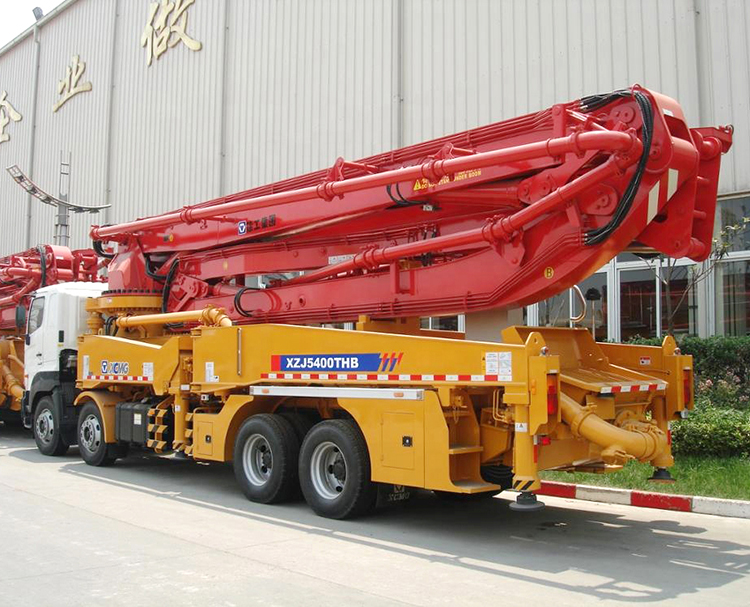

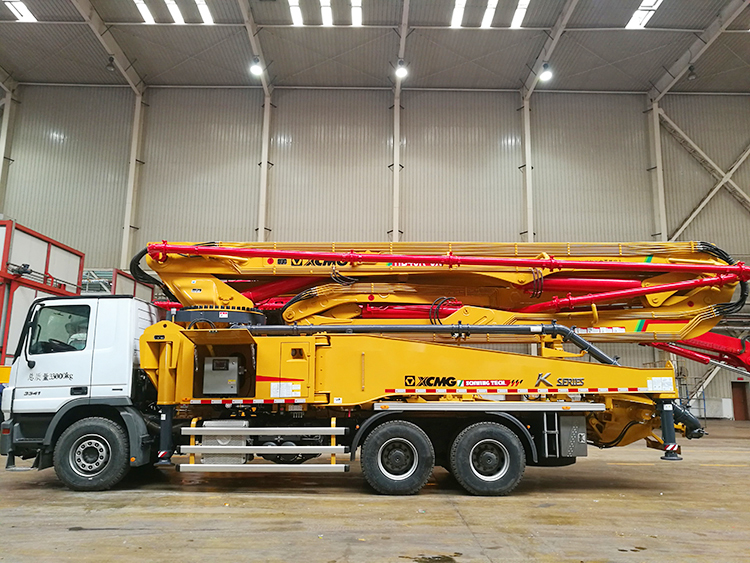

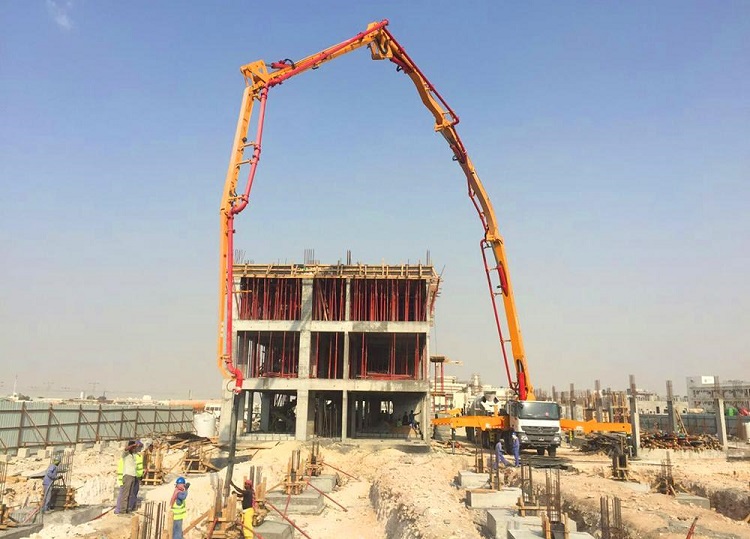

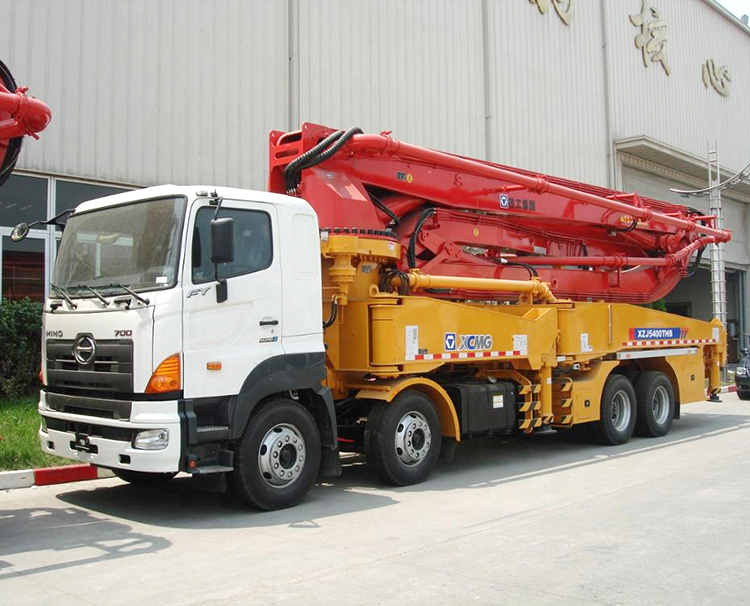

HB48K Truck-Mounted Concreted Boom Pumps
1、XCMG V7 series truck mounted concrete pump is a new generation equipment
which is developed by XCMG and SCHWING Germany technology.
2、It is highly reliable and durable with seven technical
highlights. More advanced boom structure technology ,More
efficient rock valve pumping technology, Steadier stabilizer structure
technology, Steadier reversing buffering technology, more reliable
fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system
technology, safer and smarter electrical control system.
Description
Unit
Parameter value
Outline dimension
mm
12510×2500×3990
Overall weight
kg
33000
Chassis
Model
ZZ5347V484MC1
Manufacturer
Sinotruk
Group Jinan Truck Co.
Max. speed
km/h
90
Max. grade-ability
%
40
Wheelbase
mm
4800+1400
Tire
315/80R22.5
Engine
Model
MC11.40-30
Max. power
kW
297
Max. torque
N·m/(r/min)
1900/1000~1400
Displacement
L
10.518
Emission standard
Eruo III
Pumping system
Theoretical output
m³/h
170
Concrete pumping pressure
MPa
8
Theoretical pumping times
Time/min
23~26
Delivery cylinder diameter ×stroke
mm
φ260×2000
Max. diameter of pumping concrete
mm
≤40
Filling height
mm
1580
Concrete slump range
cm
8~23
Placing boom
Reach height
m
47.5
Reach depth
m
34
Slewingradius
m
43.5
Slewing angle
°
±270
Unfolding angle of the 1st section
°
90
Unfolding angle of the 2nd section
°
180
Unfolding angle of the 3rd section
°
180
Unfolding angle of the 4th section
°
240
Unfolding angle of the 5th section
°
210
Unfolding angle of the 6th section
°
120
Stabilizer span
Longitudinal span of stabilizer
mm
8955
Transverse span of front stabilizer
mm
7884
Transverse span of rear stabilizer
mm
9940
Others
Transfer tube
Rock valve
Lubrication method
Automatic lubrication
Control method
Manual/remote control
Volume of water box
L
1300
Description |
Unit |
Parameter value |
|||
Outline dimension |
mm |
12510×2500×3990 |
|||
Overall weight |
kg |
33000 |
|||
Chassis |
Model |
ZZ5347V484MC1 |
|||
Manufacturer |
Sinotruk Group Jinan Truck Co. |
||||
Max. speed |
km/h |
90 |
|||
Max. grade-ability |
% |
40 |
|||
Wheelbase |
mm |
4800+1400 |
|||
Tire |
315/80R22.5 |
||||
Engine |
Model |
MC11.40-30 |
|||
Max. power |
kW |
297 |
|||
Max. torque |
N·m/(r/min)
|
1900/1000~1400
|
|||
Displacement |
L |
10.518 |
|||
Emission standard |
Eruo III |
||||
Pumping system |
Theoretical output |
m³/h |
170 |
||
Concrete pumping pressure |
MPa |
8 |
|||
Theoretical pumping times |
Time/min |
23~26
|
|||
Delivery cylinder diameter ×stroke
|
mm |
φ260×2000
|
|||
Max. diameter of pumping concrete |
mm |
≤40
|
|||
Filling height |
mm |
1580 |
|||
Concrete slump range |
cm |
8~23
|
|||
Placing boom |
Reach height |
m |
47.5 |
||
Reach depth |
m |
34 |
|||
Slewingradius |
m |
43.5 |
|||
Slewing angle |
° |
±270
|
|||
Unfolding angle of the 1st section |
° |
90 |
|||
Unfolding angle of the 2nd section |
° |
180 |
|||
Unfolding angle of the 3rd section |
° |
180 |
|||
Unfolding angle of the 4th section |
° |
240 |
|||
Unfolding angle of the 5th section |
° |
210 |
|||
Unfolding angle of the 6th section |
° |
120 |
|||
Stabilizer span |
Longitudinal span of stabilizer |
mm |
8955 |
||
Transverse span of front stabilizer |
mm |
7884 |
|||
Transverse span of rear stabilizer |
mm |
9940 |
|||
Others |
Transfer tube |
Rock valve |
|||
Lubrication method |
Automatic lubrication |
||||
Control method |
Manual/remote control |
||||
Volume of water box |
L |
1300 |
|||
|
Response Time : Within 24 hours
