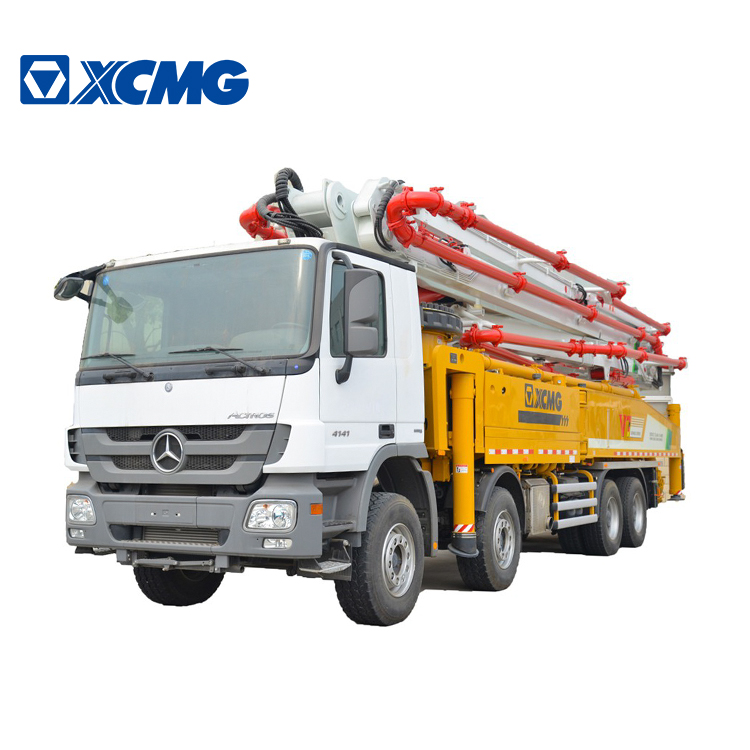

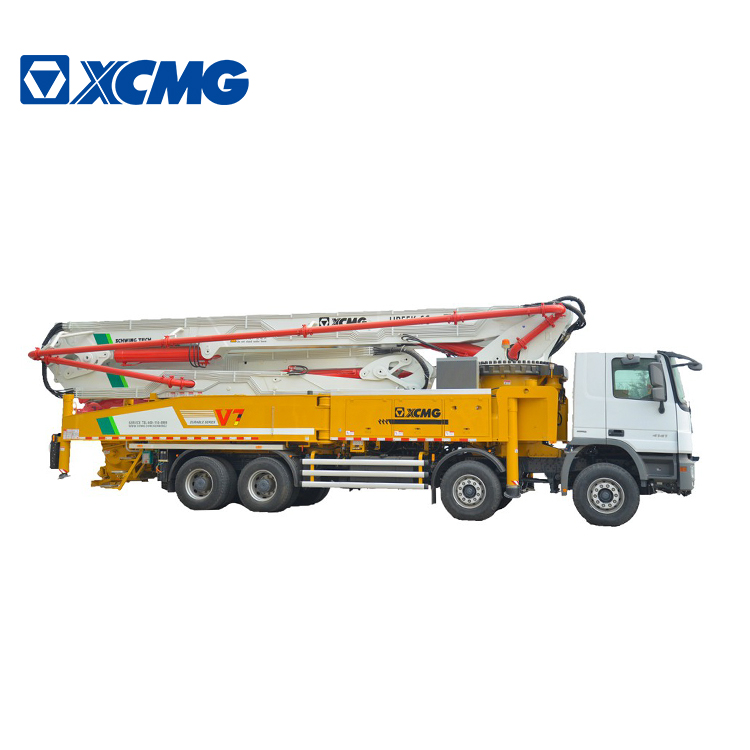

China brand 58m concrete pump machine HB58K concrete mixer pump truck with diesel engine

  • China brand 58m concrete pump machine HB58K concrete mixer pump truck with diesel engine
  • China brand 58m concrete pump machine HB58K concrete mixer pump truck with diesel engine
  • China brand 58m concrete pump machine HB58K concrete mixer pump truck with diesel engine
  • China brand 58m concrete pump machine HB58K concrete mixer pump truck with diesel engine
  • China brand 58m concrete pump machine HB58K concrete mixer pump truck with diesel engine
  • China brand 58m concrete pump machine HB58K concrete mixer pump truck with diesel engine

Share:
China brand 58m concrete pump machine HB58K concrete mixer pump truck with diesel engine
FOB for Concrete Mach Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Model: HB58K
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
China brand 58m concrete pump machine HB58K concrete mixer pump truck with diesel engine
China brand 58m concrete pump machine HB58K concrete mixer pump truck with diesel engine
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
Summary
  • Dimension(L*W*H):14300×2500×4000MM
  • Weight:44000KG
  • Power(W):305000W
  • Model Number:HB58K
  • Brand Name:XCMG
  • Place of Origin:JiangSu,China
  • Certification:CE/ISO9001
Specifications
  • weight:44000.000kg
  • Condition:New
  • Moving Type:Other
  • Color:Color

China brand 58m concrete pump machine HB58K concrete mixer pump truck with diesel engine

China brand 58m concrete pump machine HB58K concrete mixer pump truck with diesel engine.



XCMG V7 series truck mounted concrete pump is a new generation equipment which is developed by XCMG and SCHWING Germany technology.



It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.

China brand 58m concrete pump machine HB58K concrete mixer pump truck with diesel engine

Category

Item

Unit

HB58K

Overall

Outline dimension

km/h

14300×2500×4000

Overall weight

kg

44000

Chassis

Max. speed

km/h

85

Max. grade-ability

%

51.40%

Wheelbase

mm

2300+4000+1350

Engine

Model



OM501LA·IV/3

Max power

kw

305

Max. torque

N·m/(r/min)

2000/1080

Displacement

L

11.946

Pumping system

Theoretical output

m3/h

170

Concrete pumping pressure

Mpa

8

Theoretical pumping

time/min

21~23

Delivery cylinder diameter ×stroke

mm

260/2200

Max.diameter of pumping concrete aggregate

mm

≤40

Filling height

mm

1540
