XCMG Schwing concrete pump truck HB58V China new 58m concrete truck with scania chassis for sale
Summary
- Dimension(L*W*H):14520×2550×4000mm
- Weight:44000kg
- Power(W):332kW
- Model Number:HB58V
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- weight:44000.000kg
- Condition:New
- Moving Type:Other
- Color:Red
- Theoretical:180m³/h
- Reach height:57.5m
- Reach depth:40.5m
- Emission standard:China VI
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

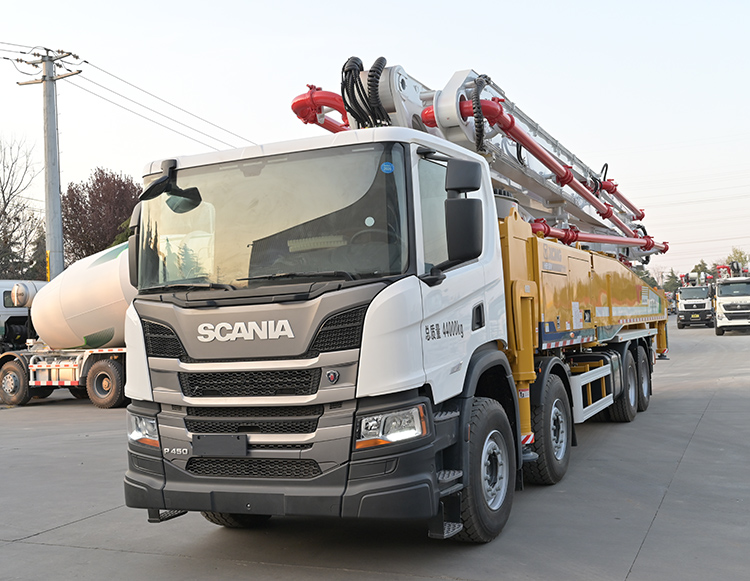

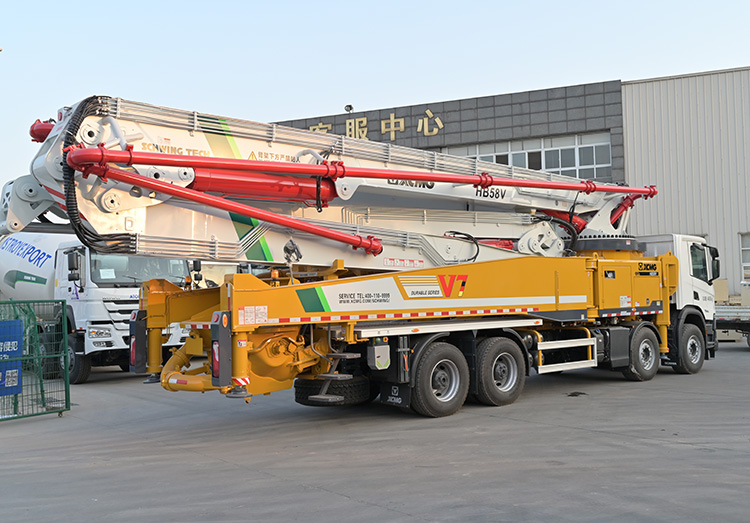

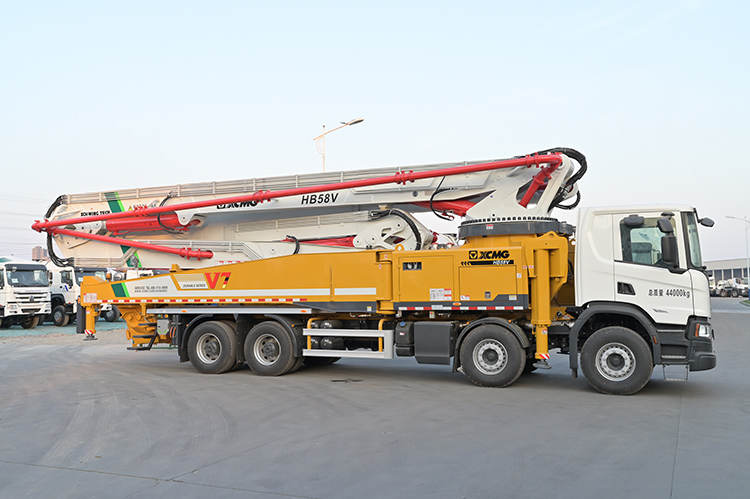

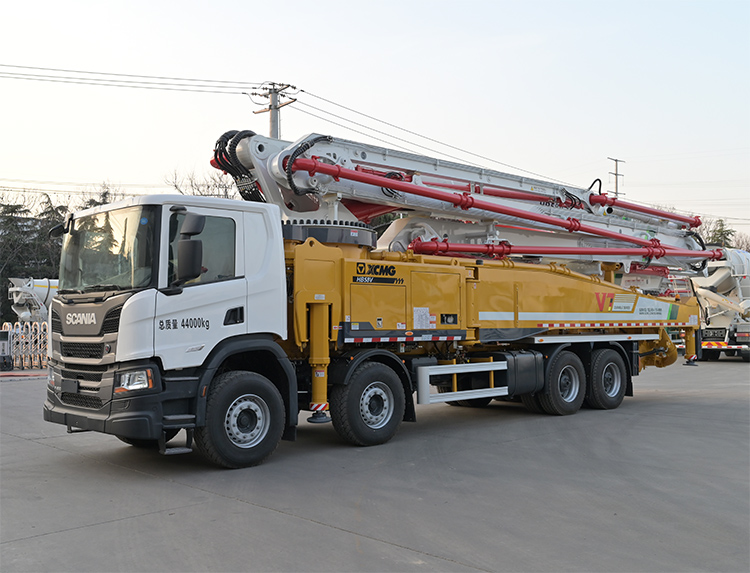

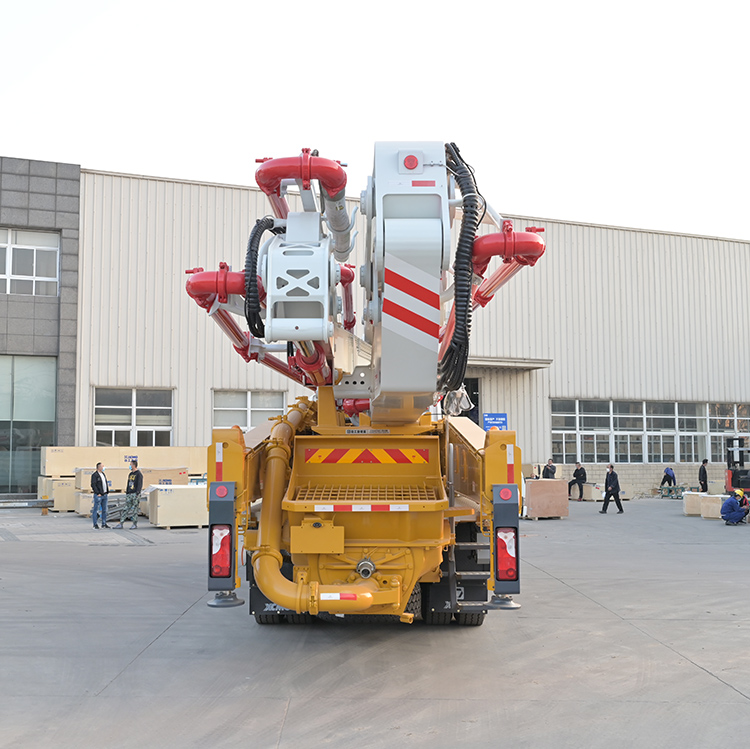

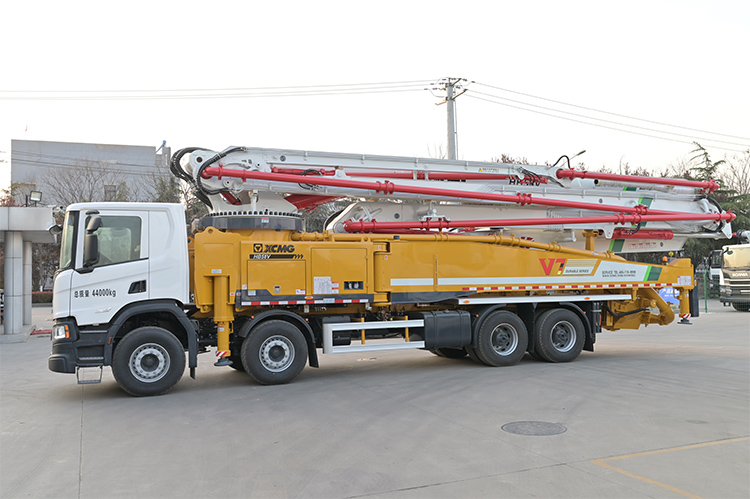

concrete pump truck HB58V China new 58m concrete truck
with scania chassis.
The HB58V concrete pump truck is a new concrete pump
truck with Schwing series independently developed by XCMG. It is the world's
longest boom pump truck with four-axle curved outriggers, the SCANIA chassis is adopted.
In the design, the SCANIA chassis is adopted, following the principle of
"high starting point, high technology, high performance, high reliability,
and high quality", with curved outriggers, intelligent boom damping
technology, and full hydraulic reversing technology, The industry's unique
skirt valve pumping system and other product highlights.
Advantages and highlights:
1.Ultimately Safe Boom.
2.Lower Structure of High Rigidity.
3.Hydraulic System of Outstanding Performance.
4.Effectively reduce emissions with the reversing,
vulnerability of longer life.
5.The pumping system
adopts electric control reversing, reversing faster and the system impact
smaller.
|
Category |
Item |
Unit |
HB58V |
|
Overall |
Outline
dimension |
mm |
14520×2550×4000 |
|
Overall weight |
kg |
44000 |
|
|
Brand |
/ |
SCANIA |
|
|
Chassis |
Model |
/ |
P 450 8×4 |
|
Wheelbase |
mm |
1990+4360+1350 |
|
|
Max.power |
kW |
332 |
|
|
Engine |
Emission
standard |
/ |
China VI |
|
Theoretical |
m³/h |
180 |
|
|
Pumping system |
Concrete pumping
pressure |
MPa |
10.2 |
|
Theoretical pumping times |
Times/min |
22～24 |
|
|
Delivery
cylinder diameter × stroke |
mm |
φ260×2200 |
|
|
Placing boom |
Reach height |
m |
57.5 |
|
Reach depth |
m |
40.5 |
|
|
Slewing radius |
m |
52.5 |
|
|
Slewing angle |
° |
±270 |
|
|
Others |
Transfer |
/ |
Rock valve/S valve |
