XCMG Schwing 62m Truck-mounted Concrete Boom Pump HB62V China Concrete Pump Truck for Sale
Summary
- Dimension(L*W*H):15370×2530×4000mm
- Weight:43870kg
- Power(W):331kW
- Model Number:HB62V
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Certification:CE/ISO9001
Specifications
- weight:43870.000kg
- Condition:New
- Moving Type:Other
- Color:Red
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

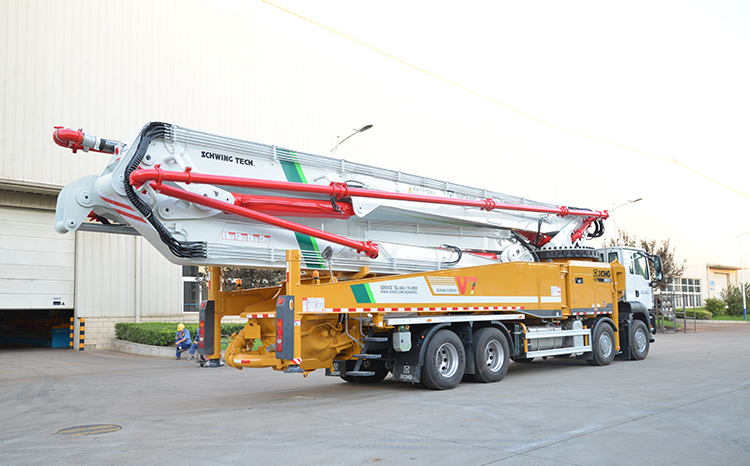

XCMG Schwing 62m Truck-mounted Concrete Boom Pump HB62V China Concrete Pump Truck.
4-axle ultimate concrete boom pump truck in industry.
It adopts X-type stabilizer structure, simple telescoping structure realizes few fault points and high reliability, and chassis of higher rigidity improves overall work stability.
The pumping system uses internationally patented rock valve technology, achieving easy pumping, gentler passageway, smaller resistance and lower oil consumption; one-side wear prolongs service life.
The application of SCHWING Germany’s hydraulic technology quintessence truly realizes fully-hydraulic reversing, in which self-adaption control in fully-hydraulic closed-loop is realized, with no need for any electrical components, more effective, steadier and zero-pollution.
It also uses many independent innovative technologies, such as MPS reversing buffering technology, ultra-low pressure loss hydraulic system technology, safer and smarter.
Category | Item | Unit | HB62V |
Overall | Outline dimension | mm | 15370×2530×4000 |
Overall weight | kg | 43870 | |
Chassis | Brand | / | SCANIA |
Model | / | P 450 8×4 | |
Wheelbase | mm | 1990+4360+1350 | |
Max.power | kW | 331 | |
Emission standard | / | China VI | |
Pumping system | Theoretical | m³/h | 180 |
Concrete pumping pressure | MPa | 10.2 | |
Theoretical pumping times | Times/min | 22～24 | |
Delivery cylinder diameter × stroke | mm | φ260×2200 | |
Placing boom | Reach height | m | 61.1 |
Reach depth | m | 43.6 | |
Slewing radius | m | 55.9 | |
Slewing angle | ° | ±270 | |
Others | Transfer | / | Rock valve/S valve |
