XCMG Schwing 67m big concrete pump with truck HB67V China concrete with sinotruk chassis truck price

  • XCMG Schwing 67m big concrete pump with truck HB67V China concrete with sinotruk chassis truck price
  • XCMG Schwing 67m big concrete pump with truck HB67V China concrete with sinotruk chassis truck price
  • XCMG Schwing 67m big concrete pump with truck HB67V China concrete with sinotruk chassis truck price
  • XCMG Schwing 67m big concrete pump with truck HB67V China concrete with sinotruk chassis truck price
  • XCMG Schwing 67m big concrete pump with truck HB67V China concrete with sinotruk chassis truck price
  • XCMG Schwing 67m big concrete pump with truck HB67V China concrete with sinotruk chassis truck price

Share:
XCMG Schwing 67m big concrete pump with truck HB67V China concrete with sinotruk chassis truck price
FOB for Concrete Mach Reference Price:Get Latest Price
$10000.00-$1000000.00 1 / EA (Min. Order)
Model: HB67V
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG Schwing 67m big concrete pump with truck HB67V China concrete with sinotruk chassis truck price
XCMG Schwing 67m big concrete pump with truck HB67V China concrete with sinotruk chassis truck price
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
Summary
  • Dimension(L*W*H):15815*2550*4000mm
  • Weight:53870kg
  • Power(W):397kW
  • Model Number:HB67V
  • Brand Name:XCMG
  • Place of Origin:Xuzhou, Jiangsu, China
  • Certification:CE/ISO9001
Specifications
  • weight:53870.000kg
  • Condition:New
  • Moving Type:Other
  • Color:Red
  • Wheelbase:1950+5200+1400+1500mm
  • Emission standard:China VI
  • Reach height:66.1m
  • Chassis Brand:Sinotruck sitrak

XCMG Schwing 67m big concrete pump with truck HB67V China concrete with sinotruk chassis truck price

XCMG Schwing 67m big concrete pump with truck HB67V China concrete with sinotruk chassis truck.

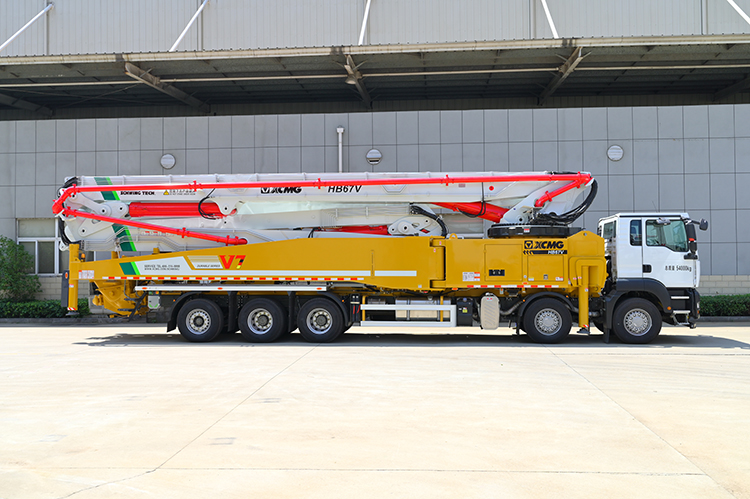

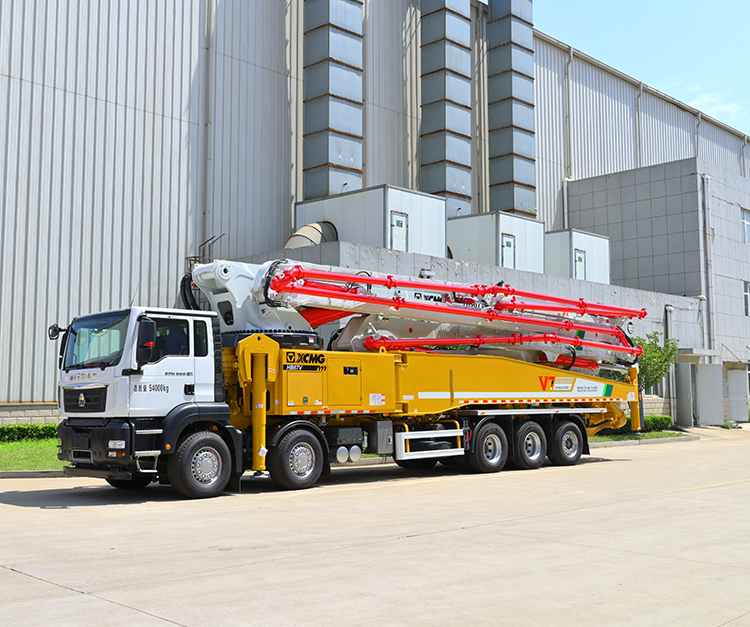

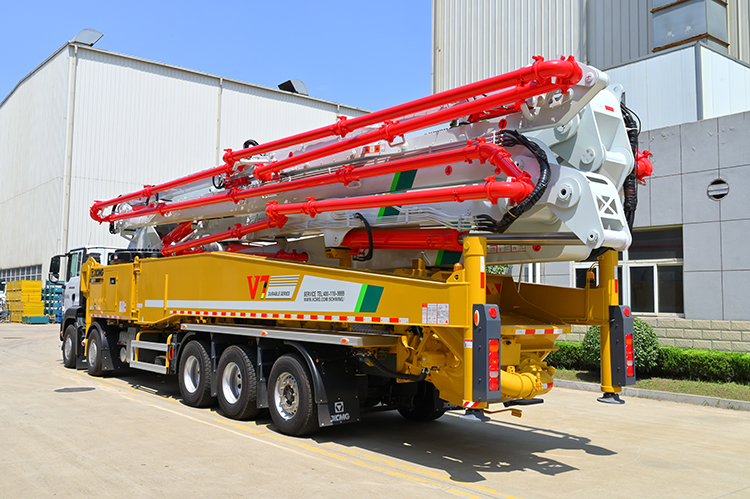

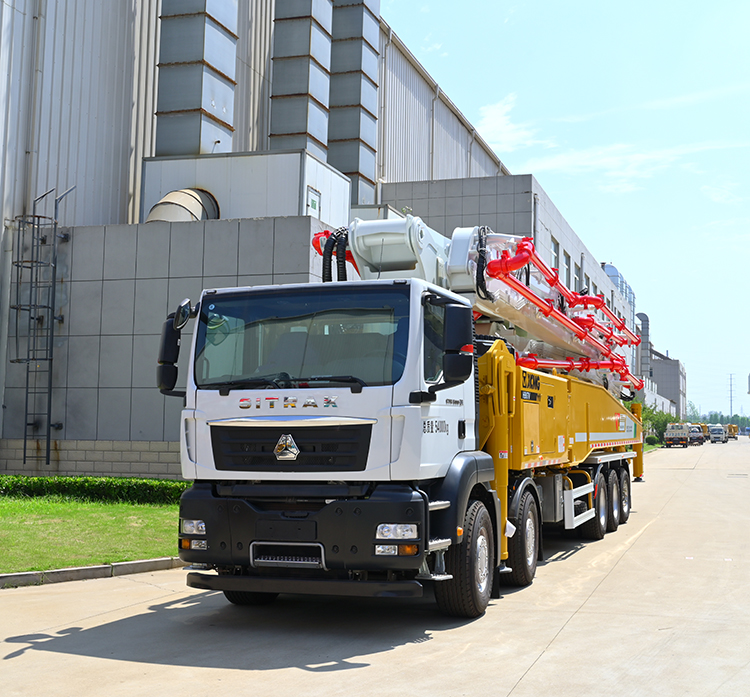

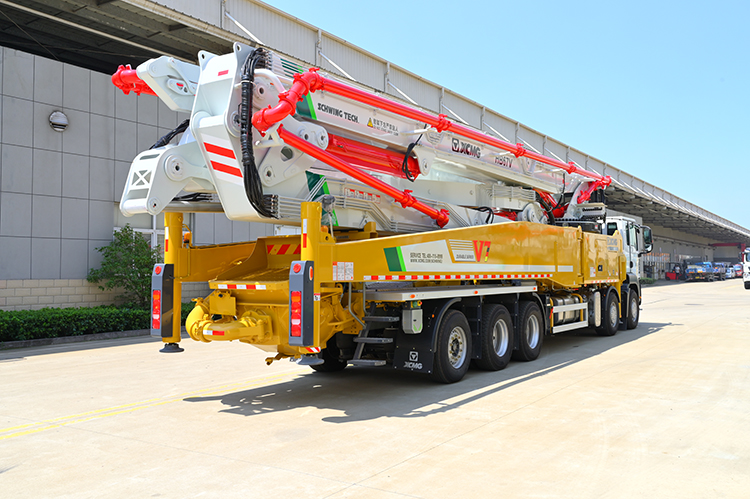

The XCMG HB67V concrete pump truck is equipped with more efficient skirt valve pump technology, more stable reversing buffer technology, more reliable full hydraulic reversing technology.



It adopts Sinotruk sitrak chassis, which complies with China 6 emission standard, featuring with powerful output, large torque, high efficiency, energy conservation and strong off-road performance.



Advantages and highlights:



1.Ultimately Safe Boom.



2. Lower Structure of High Rigidity.



3.Hydraulic System of Outstanding Performance.



4.Effectively reduce emissions with the reversing, vulnerability of longer life.



5.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.



6.The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.

XCMG Schwing 67m big concrete pump with truck HB67V China concrete with sinotruk chassis truck price

Category

Item

Unit

HB67V

Overall

Outline dimension

mm

15815*2550*4000

Overall weight

kg

53870

Chassis

Brand

/

Sinotruck sitrak

Model

/

ZZ5546V52MF1B

Wheelbase

mm

1950+5200+1400+1500

Max.power

kW

397

Emission standard

/

China VI

Pumping system

Theoretical

m³/h

180

Concrete pumping pressure

MPa

10.2

Theoretical pumping times

Times/min

2224

Placing boom

Reach height

m

66.1

Reach depth

m

48.6

Slewing radius

m

60.9

Others

Transfer

/

S valve

XCMG Schwing 67m big concrete pump with truck HB67V China concrete with sinotruk chassis truck priceXCMG Schwing 67m big concrete pump with truck HB67V China concrete with sinotruk chassis truck priceXCMG Schwing 67m big concrete pump with truck HB67V China concrete with sinotruk chassis truck priceXCMG Schwing 67m big concrete pump with truck HB67V China concrete with sinotruk chassis truck priceXCMG Schwing 67m big concrete pump with truck HB67V China concrete with sinotruk chassis truck priceXCMG Schwing 67m big concrete pump with truck HB67V China concrete with sinotruk chassis truck price
