Summary
  • Certification:CE/ISO9001
  • Dimension(L*W*H):6482*2100*2886mm
  • Weight:7400KG
  • Model Number:HBT9018K
  • Brand Name:XCMG
  • Place of Origin:Jiangsu, China
  • Power Type:Diesel
Specifications
  • weight:4700.000kg
  • Condition:New
  • Moving Type:Other

XCMG Official HBT9018K 186Kw trailer concrete pump price concrete pump machine for sale

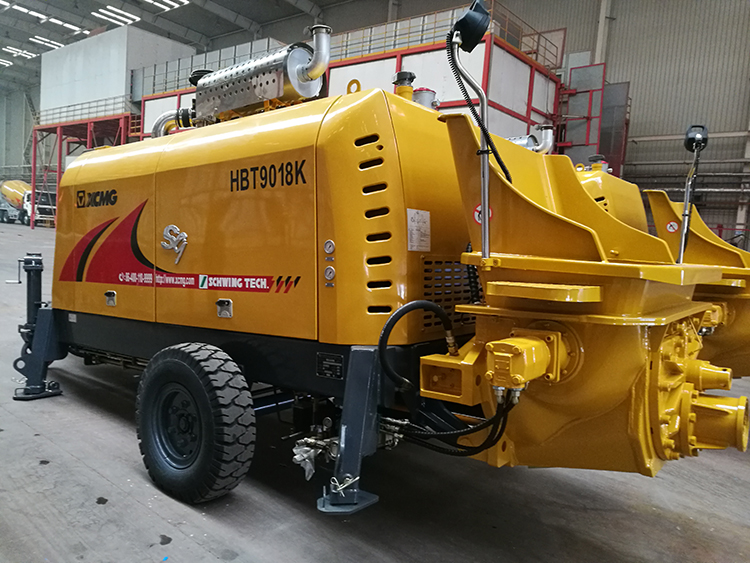

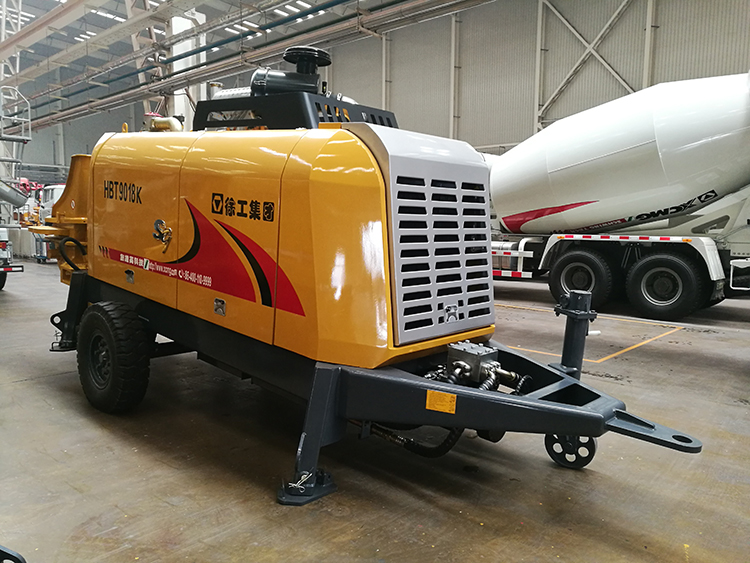

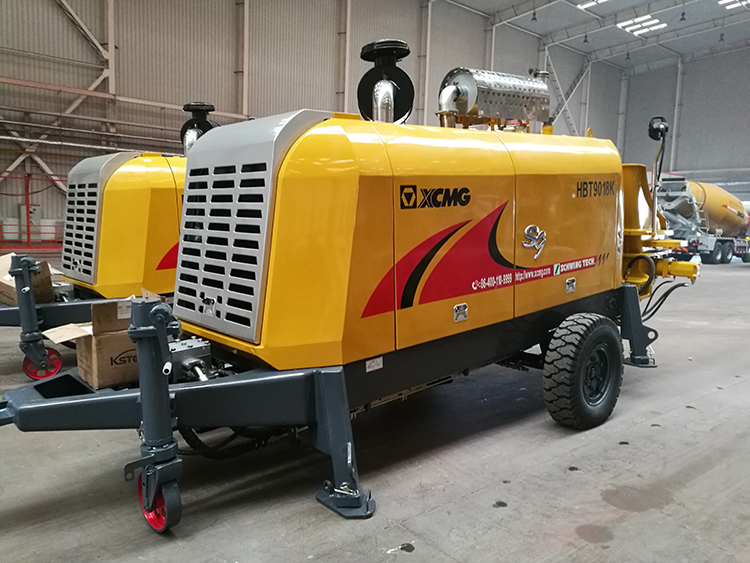

XCMG Official HBT9018K 186Kw trailer concrete pump price concrete pump machine.



1. By comprehensively incorporating Schwing switch-over control technology, the extraction and control of switch-over signal is totally done by hydraulic pressure, avoiding the unreliability brought by frequent electrical contact and harsh environment and reducing customers' later maintenance cost.



2. By adopting exclusive invariable reversing buffering technology in the industry, the pump displacement keeps unchanged during pumping and reversing and the main system unloads in low pressure, which thoroughly avoid such problems as long reversing time, great reversing impact and low service life of pump caused by frequent change of displacement during traditional reversing.



3. The use of equivalent bending moment design ensures uniform force, reliable sealing and greatly prolongs the service life of bearing ring, spectacle wear plate and cutting ring. The feature of unilateral wear makes the theoretical service life of rock valve once higher than that of S-valve.



4. The machine adopts the controller with color display, which can dynamically display and record various working parameters in real-time; main control functions are all finished directly by the controller, which reduces the use level of relay; and meanwhile with it, many intelligent control functions can be realized.



5. Piston change is easy, convenient and time-saving. Traditional piston needs to be changed by repeatedly mounting and dismounting linkage and pumping at low speed.



6. The system ensures the cleanness of hydraulic oil and thus generates higher operational reliability of hydraulic system, pump and other hydraulic elements.


XCMG Official HBT9018K 186Kw trailer concrete pump price concrete pump machine for sale

Description

Unit

Parameter value

Overall performance

Overall dimensions

mm

6482×2100×2886

Total curb mass

kg

7400

Concrete delivery value

m3/h

115/60

Max. output pressure

Mpa

18

Pulling speed

km/h

Three-level road 8km/h

Road above two-level16km/h

Delivery distance(vertical/horizontal)

m

250/1000

Hopper capacity/filling height

m3/mm

0.6/1370

Concrete slump range

mm

80-230

Concrete delivery cylinder diameter/stroke

mm

230/1600

Power system

Main motor (diesel engine)

Model

BF6M1013

Rated power

kw

186

Rated rev

r/min

2100

Manufacturer

DEUTZ

Hydraulic system

Type

Open type

Pressure of hydraulic system

Mpa

32

Main oil pump

Model and type

280

Rated working flow

L/min

560

Manufacturer

KAWASAKI

Pumping oil cylinder diameter /stroke

mm

170/1600

Capacity of hydraulic oil tank

L

600

Mixing system

Large torque at low speed
