12 ton hydraulic forklift crane truck HNFC120-450 with Cummins engine
Summary
- Max Lifting Height:3000mm
- Rated Loading Capacity:12000kg
- Power Source:Diesel
- Model Number:HNFC120-450
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
Specifications
- Weight:22000.000kg
- Condition:New
- Moving Type:Other
- Weight:22000kg
- Rated Power/Rotational Speed:110/2200kW/RPM
- Load Center:600mm
- Max. driving speed:23/26km/h
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
12 ton hydraulic forklift crane truck HNFC120-450 with Cummins
engine.

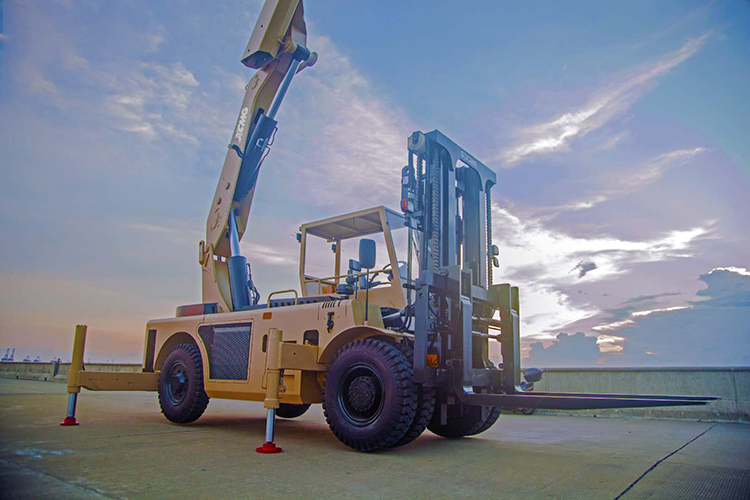

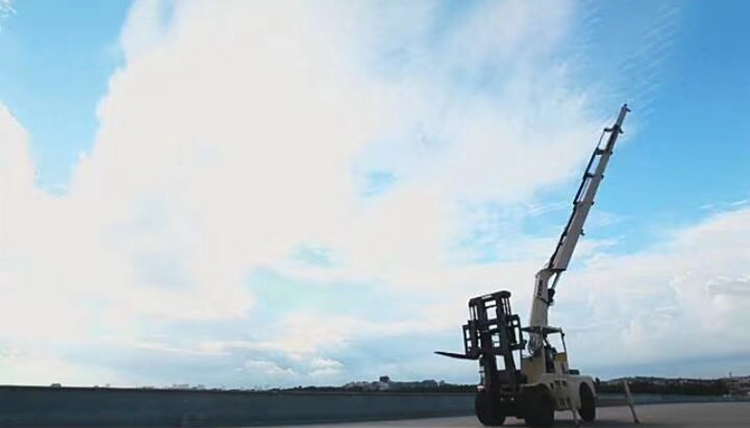

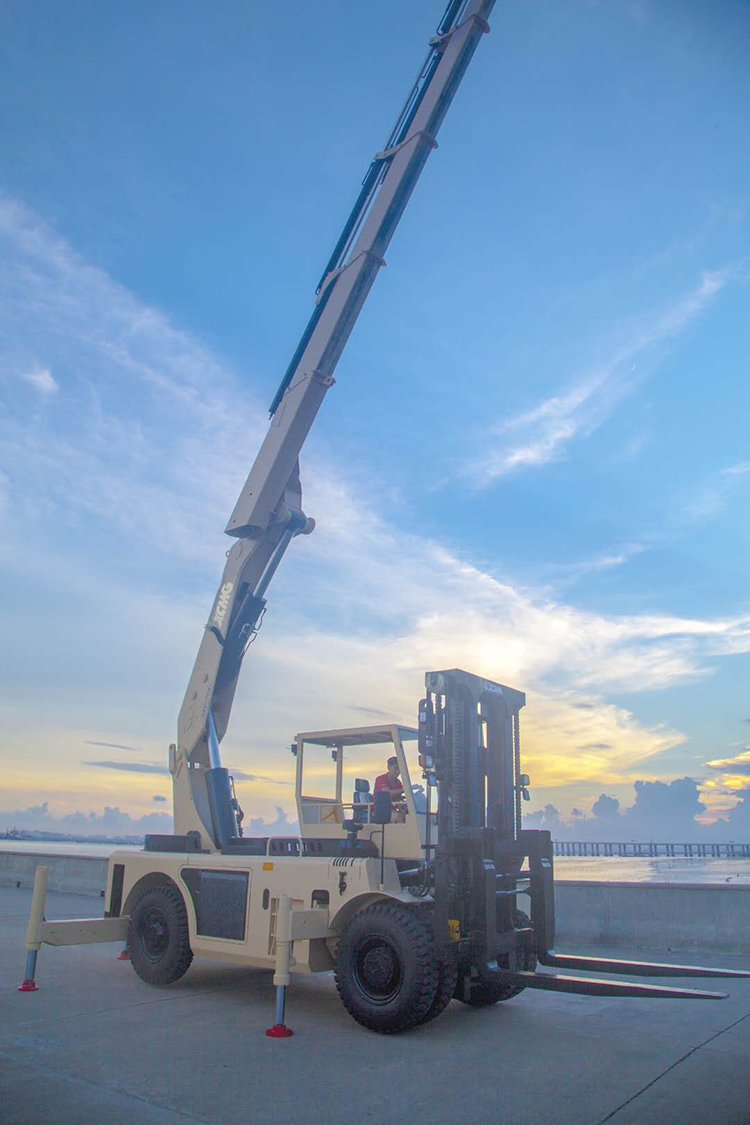

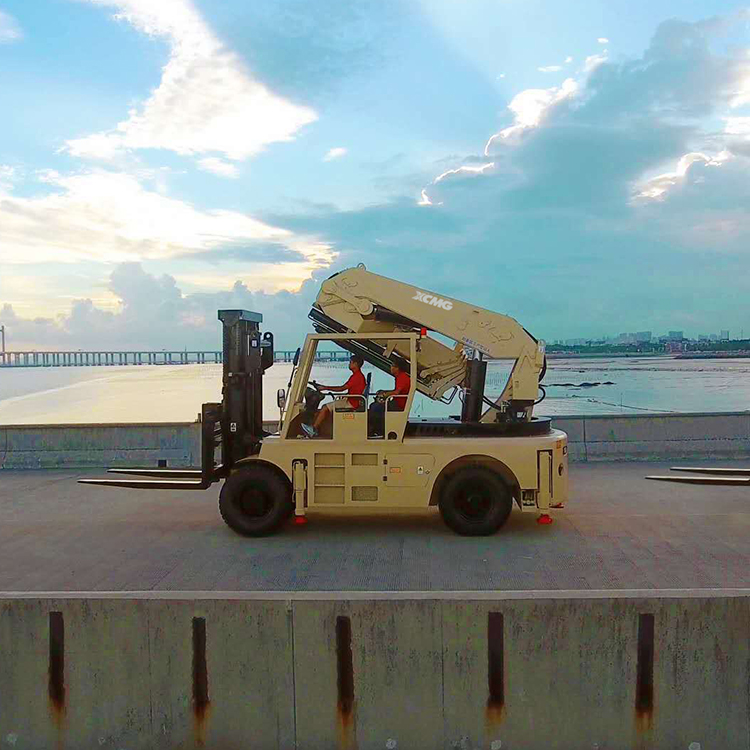

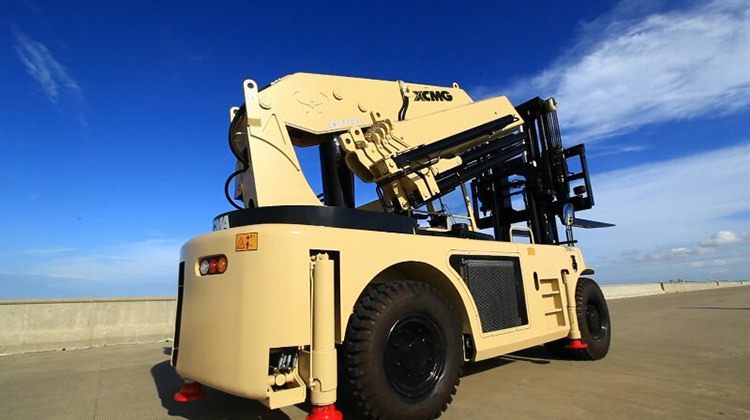

HNFC120-450 crane forklift is a kind of compound
innovation products which is developed. The rated load is 12 ton, Max. lifting
Moment of folding crane is 45 ton.m, The folding crane can be rotated at 360
degree.
Performance Characteristics:
1.Adopt Cummins or Yuchai diesel engine with strong
power, energy-saving and environmentally friendly, which can satisfy high
efficiency operation requirements.
2.Ensure the heat balance of whole machine.
3.Adopt Zhongnan transmission hydraulic gear box,
reliable double variables system.
4.Makes start-up of whole machine safer.
5.It is big load capacity and long-life span, reliable
brake and safe operation.
|
Category |
Items |
Unit |
HNFC120-450 |
|
|
Dimension |
Overall dimension |
mm |
7600*2250*3188 |
|
|
Standard lifting height |
mm |
3000 |
||
|
Load Center |
mm |
600 |
||
|
Wheel Base |
mm |
3250 |
||
|
Weight Parameter |
Weight |
kg |
22000 |
|
|
Rated Weight |
kg |
12000 |
||
|
Driving Parameter |
Rated Power/Rotational Speed |
kW/RPM |
110/2200 |
|
|
Max. driving speed (Full loading / empty loading |
km/h |
23/26 |
||
|
Outside Min. Turing radius |
mm |
6500 |
||
|
Mask Ground Clearance |
mm |
225 |
||
|
Out-trigger Ground Clearance |
mm |
320 |
||
|
Grade ability (With Load/without load) |
% |
15 |
||
|
Max. Hook Traction under full load |
kN |
70 |
||
|
Lifting operation parameter |
Rated lifting Load (Crane) |
kg |
12000 |
|
|
Max. Rated lifting torque |
Kg.m |
4500 |
||
|
Out-trigger distance |
Horizontal out-trigger |
mm |
1580 |
|
|
Vertical out-trigger |
mm |
4320 |
||
|
Crane Length |
Basic Crane |
mm |
5550 |
|
|
Longest Crane |
mm |
14830 |
||
|
Max. Lifting height |
Basic boom |
mm |
7000 |
|
|
Max. Full length Crane |
mm |
15500 |
||
|
Working speed |
Max. Swinging speed (unloaded/loaded) |
r/min |
1/1 |
|
|
Max. Lifting speed (loaded/unloaded) |
mm/s |
250/260 |
||
|
Max decline speed (loaded/unloaded) |
mm/s |
400/250 |
||
|
Angle time |
upward(unloaded/loaded) |
s |
40/50 |
|
|
lift downward(unloaded/loaded) |
s |
40/50 |
||
