- Summary
- Details
- Overall Dimensions:5288*2350*2715mm
- Max Lifting Height:10.3m
- Rated Loading Capacity:11000kg
- Power Source:Diesel
- Model Number:HNT-110
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
- Product Name:G5FD858B3A8378
- Display online time:2020-12-15
- weight:13000.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:other
- Operating weight:13000kg
- Wheel base:2988mm
- Min. ground clearance:310mm
- Min. turning radius:6800mm
- Max. grade ability:20%
- Max. travelling speed:25km/h
- Engine:Cummins

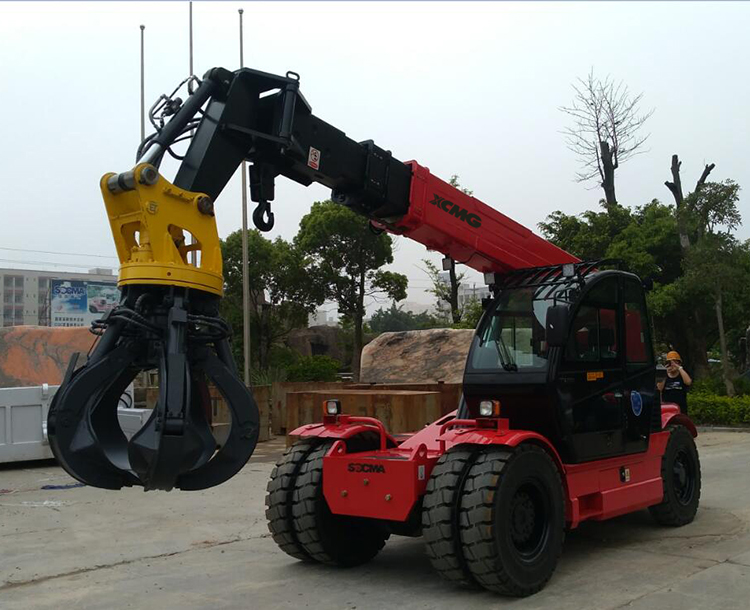

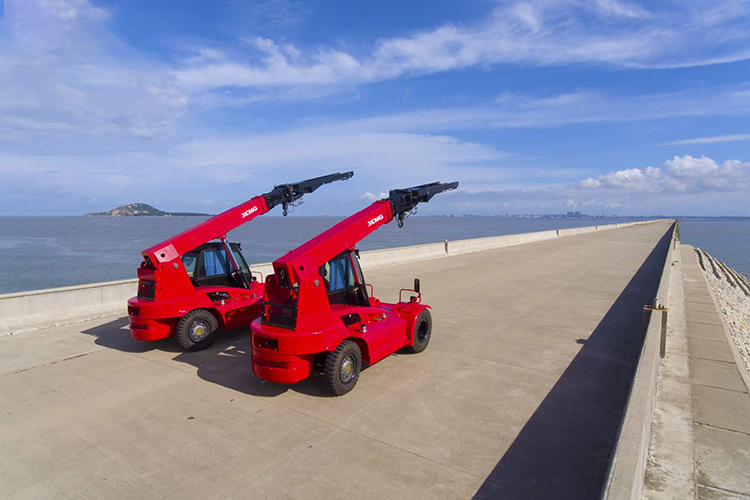

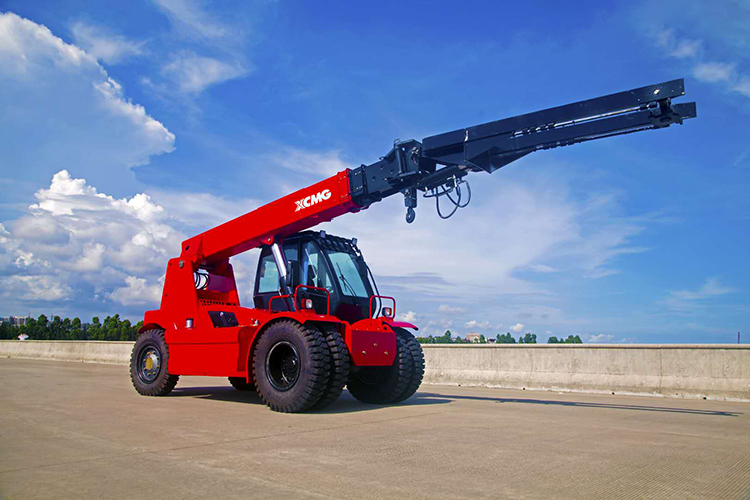

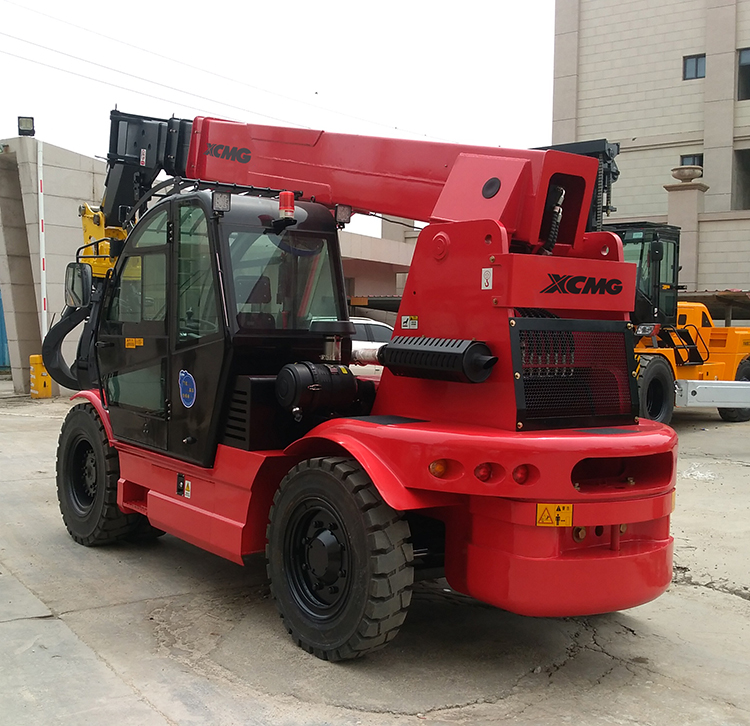

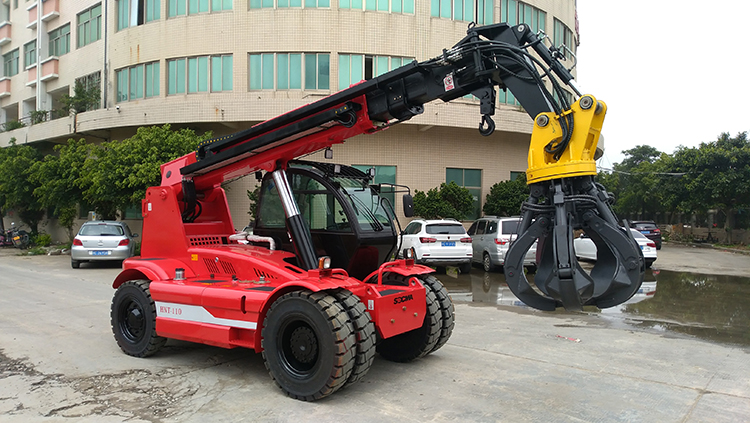

XCMG 11 ton Telehandler HNT-110 Telescopic Crane loader with
spreader.
HNT-110 telescopic crane loader, the chassis is
front-wheel drive, rear-wheel steering, rigid suspension.
Adopt hydro-mechanical transmission with two-speed
forward and two-speed reverse, full hydraulic power steering, and air-over-oil
type drum brake; the working device is composed of the three- -stage
quadrilateral telescopic boom and boom quick change device and hook.
This telescopic crane loader is not only applicable to
lift the stone slabs in containers, but also can be used as a general crane,
can be widely used in factory, dock, freight yard, forest farm, construction
material, ware-house, logistics and other industries. It is a loading and
unloading machine with wide adaptability and high efficiency.
|
Item
|
Unit |
Parameter |
|
Rated load |
kg |
11000 |
|
Operating weight |
kg |
13000 |
|
Main hook max.
lifting height |
mm |
7605 |
|
Max. lifting
height with full extended boom |
mm |
10300 |
|
Wheel base |
mm |
2988 |
|
Front wheel tread |
mm |
1638 |
|
Rear wheel tread |
mm |
1785 |
|
Min. ground clearance |
mm |
310 |
|
Overall dimension |
mm |
5288*2350*2715 |
|
Cab height |
mm |
2400 |
|
Rear overhang length |
mm |
1055 |
|
Main hook max. horizontal reach |
mm |
4800 |
|
Min. turning radius |
mm |
6800 |
|
Max. grade ability |
° |
≥20% |
|
Max. travelling speed |
km/h |
25 |
|
Front wheel |
11.00-20 |
|
|
Rear wheel |
9.00-20 |
|
|
Engine |
Cummins |
