XCMG Schwing 132kW truck mounted concrete spraying shotcrete machine HPC30V with HOWO chassis price
Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):9360*2500*3660mm
- Weight:18000kg
- Power(W):132kW
- Model Number:HPC30V
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Air Consumption:选配
Specifications
- weight:18000.000kg
- Condition:New
- Moving Type:Other
- Max. front spraying:14.8m
- Wind supply capacity:10~13m3/min
- Max. reach depth:7m
- Max. spraying width:29.6m
- Max. spraying height:18m
- Max. speed/hour:90km/h
- Turning radius:9.5m
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

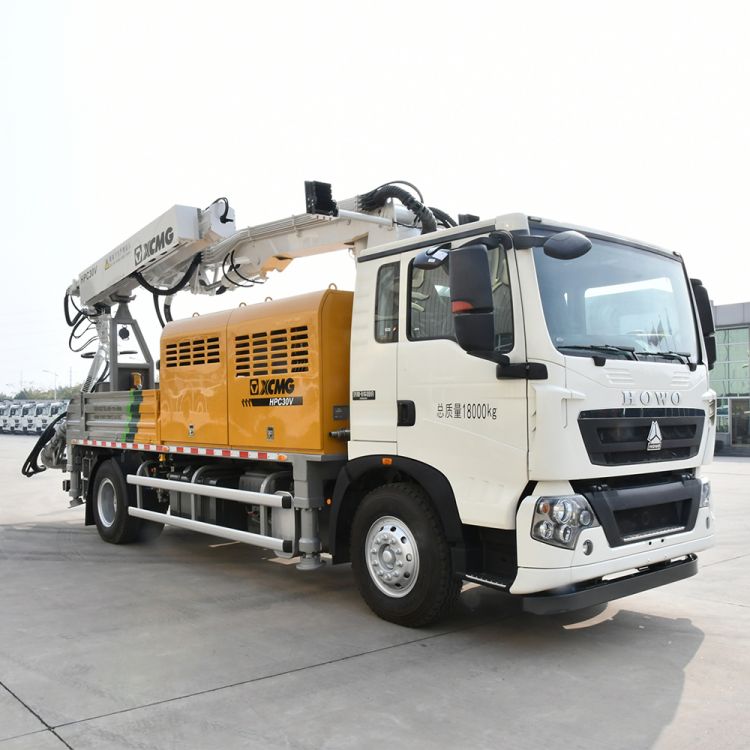

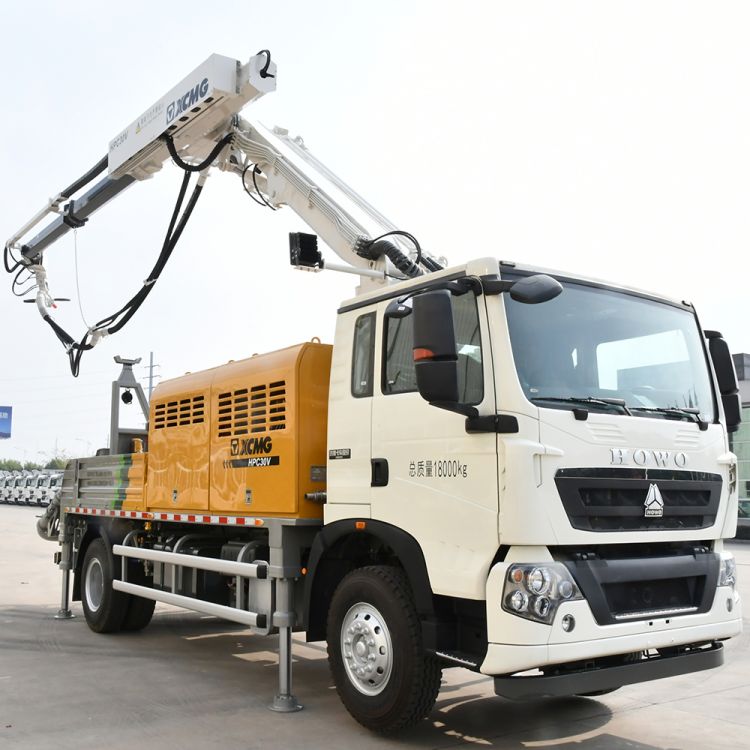

132kW truck mounted concrete spraying shotcrete machine
HPC30V with HOWO chassis.

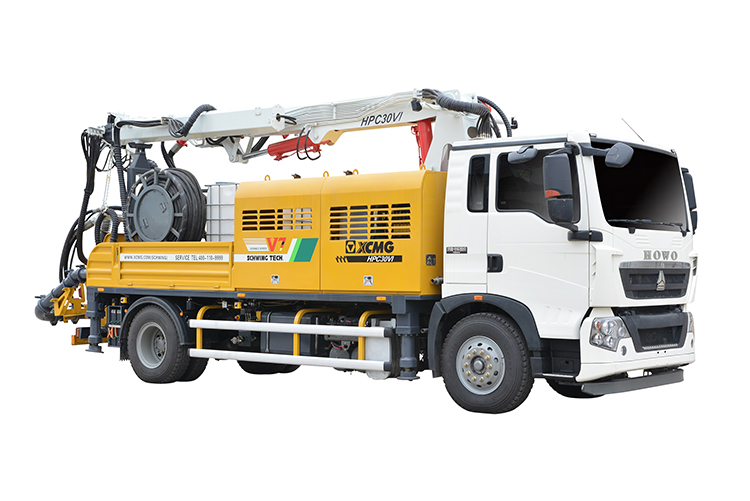

XCMG HPC30V Truck mounted concrete spraying shotcrete machine
can realize the max. spraying height of 18m, the farthest front spraying
distance of 15m and wider spraying range.
Performance and characteristic:
1. Besides the main power by motor, chassis power can
realize boom and outrigger telescoping.
2.The simultaneous operation of pumping system and
high-pressure water pump ensures more convenient and efficient cleaning of
overall machine.
3. Realize more flexible spraying operation without dead
angle and meet tunnel construction requirements to the greatest degree.
4. By incorporating Schwing's fully-hydraulic reversing
technology, short reversing time, small spraying impulse, low rebound ratio and
good spraying planeness are realized.
5. Quick-open type design can easily realize replacement
of delivery pipe, product maintenance and lubricant adding, etc.
|
Item |
Unit |
HPC30V |
|
Outline
dimension |
mm |
9360×2500×3660 |
|
Overall weight |
kg |
18000 |
|
Rated power of
engine |
kW/rpm |
132 /2400 |
|
Emission
standard |
—— |
China V |
|
Gradeability |
％ |
30 |
|
Turning radius |
m |
9.5 |
|
Max. speed/hour |
km/h |
90 |
|
Max. spraying
height |
m |
18 |
|
Max. spraying
width |
m |
29.6 |
|
Max. front
spraying distance |
m |
14.8 |
|
Min. permissible
tunnel height for spraying operation |
m |
4 |
|
Max. reach depth |
m |
7 |
|
Max. theoretical
spraying capacity |
m3/h |
30 |
|
Max. pumping
pressure |
MPa |
8 |
|
Hopper capacity |
L |
500 |
|
Wind supply
capacity |
m3/min |
10～13 |
|
Delivery
pressure |
MPa |
0.8 |
