- Summary
- Specifications
- Weight:15800.000kg
- Overall dimensions :9995X2500X3760mm
- Full load mass:15800kg
- Maximum speed:≥90
- Place of Origin:China
- Brand Name::XCMG

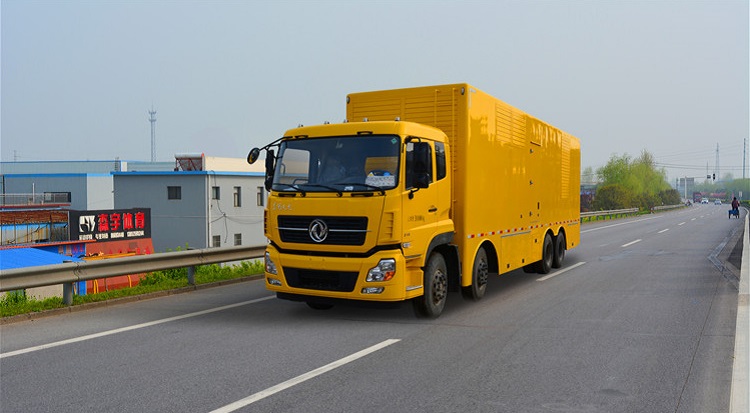

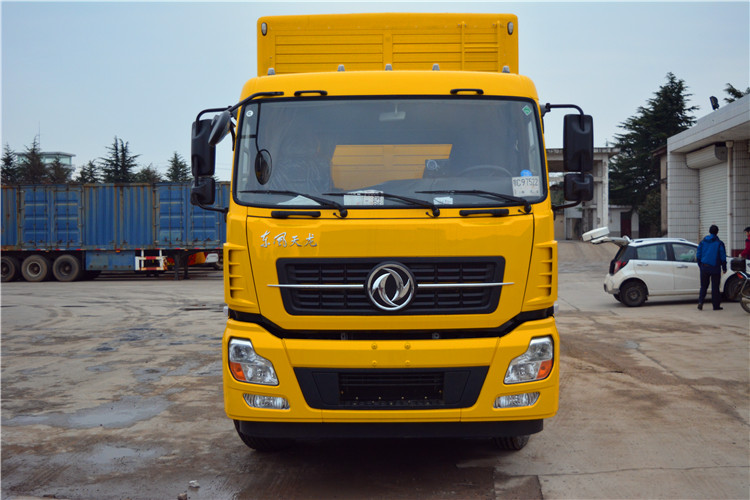

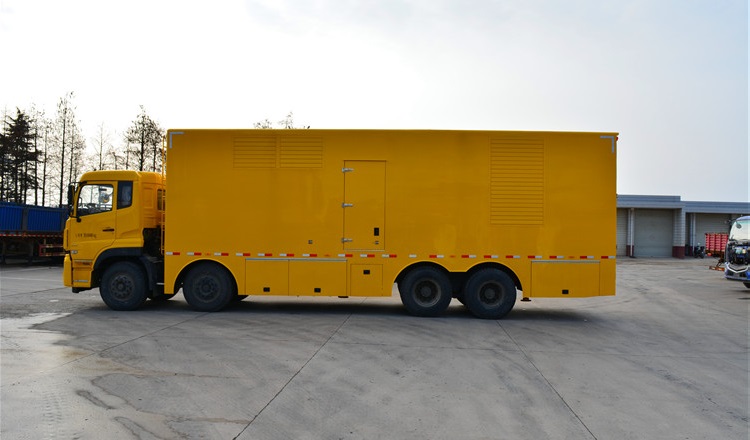

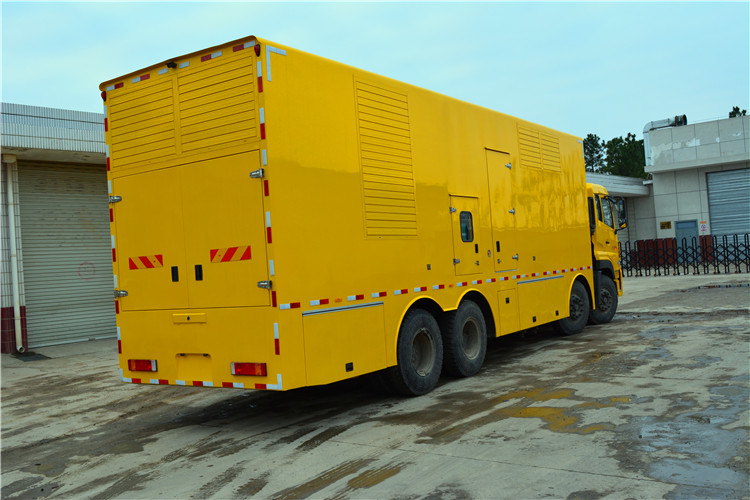

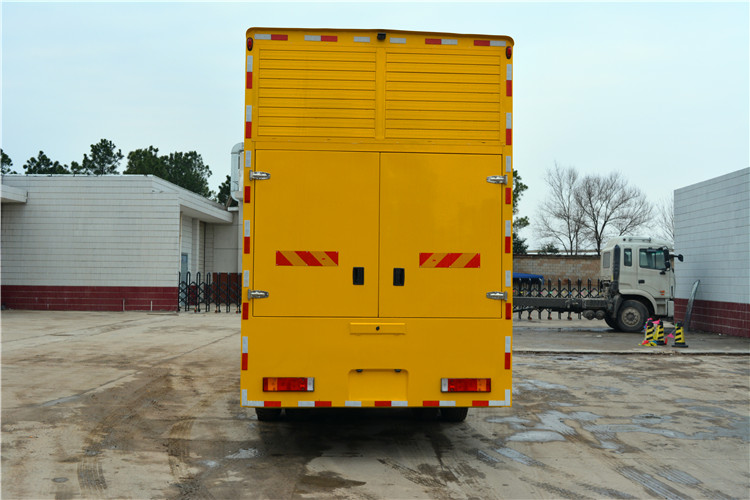

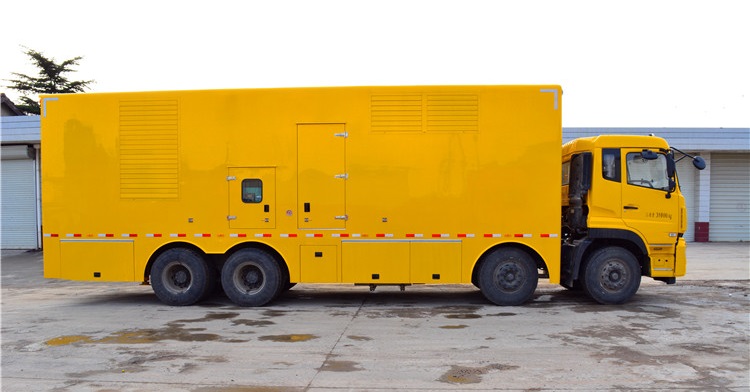

XCMG power supply
vehicle JKF5160XDYH emergency power supply vehicle with Dongfeng chassis.
The
JKF5160XDYH power supply vehicle is used for emergency power supply. It selects
the Dongfeng DFL5160XXYBX2V truck chassis as the power vehicle's support.
1.
Safety:
In
the design of the system, various conditions during driving and parking are
considered to ensure a high level of protection for equipment, vehicles and
personal safety.
2.
Economy:
Mature
products with high cost performance under the premise of ensuring performance
is choosed considering the customer's functional requirements.
3.
Comfort:
A
comfortable working environment for operators and users is provided consider
the work and rest of operators and users.
4. Shock
absorber system
The
main beam rubber damping pad is used between the car body and the chassis frame
for primary shock absorption, and the generator set and the car body use
multiple special shock absorbers for flexible secondary shock absorption
5. Noise
reduction engineering design
The
car body is equipped with exhaust air on both sides of the front, air intake on
both sides of the rear, and separate air exhaust noise reduction room to ensure
that the generator set generates electricity under normal working conditions.
|
Main
performance parameters of vehicle |
|
|
Overall dimensions (mm) |
9995X2500X3760 |
|
Full load mass(kg) |
15800 |
|
Maximum speed(km/h) |
≥90 |
|
Approach angle(°) |
20/9 |
|
Departure angle(°) |
20/10 |
|
The number of passengers (person) |
3 |
|
Front/rear suspension (mm) |
1430/2965,1430/2665,1430/2330 |
|
axes |
2 |
|
Wheelbase(mm) |
5600 |
|
Axle load |
5800/10000 |
