- Summary
- Specifications
Summary
- Model Number:JP25C2
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Size:11600*3870*2500mm
- Max Work Height:25m
- Fuel Type:Diesel
- Emission Standard:EURO 5
- Tank Capacity:7001 - 10000L
- Horsepower:351 - 450hp
- Transmission Type:Manual
- Drive Wheel:6x4
Specifications
- Weight:32350.000kg
- Condition:New
- Moving Type:Other

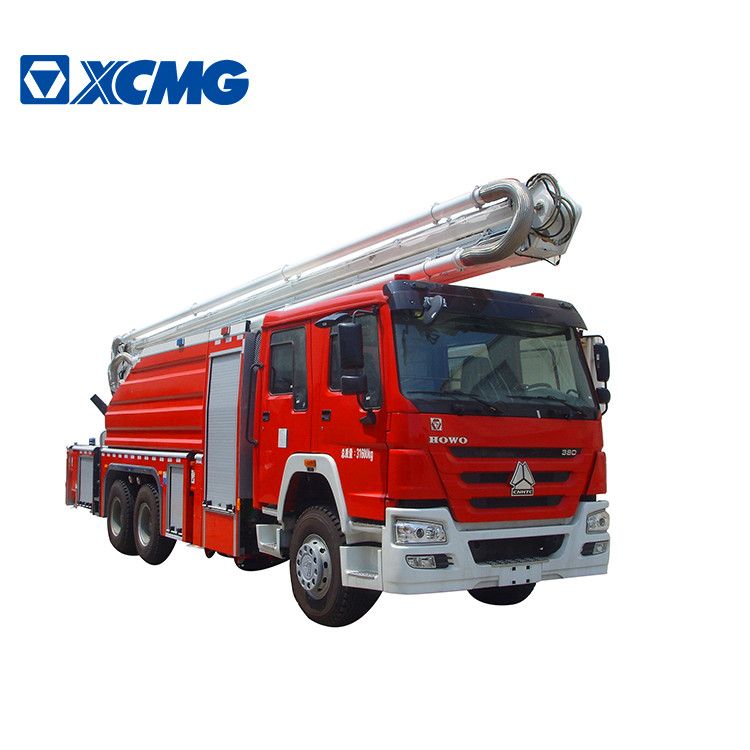

XCMG Official
Small Fire Truck 25m water and foam tower fire truck JP25C2 multi-purpose fire
fighting trucks.

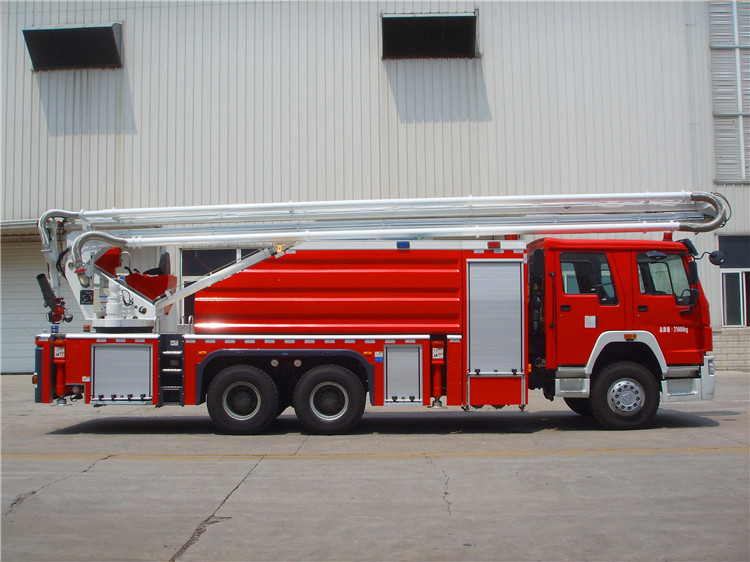

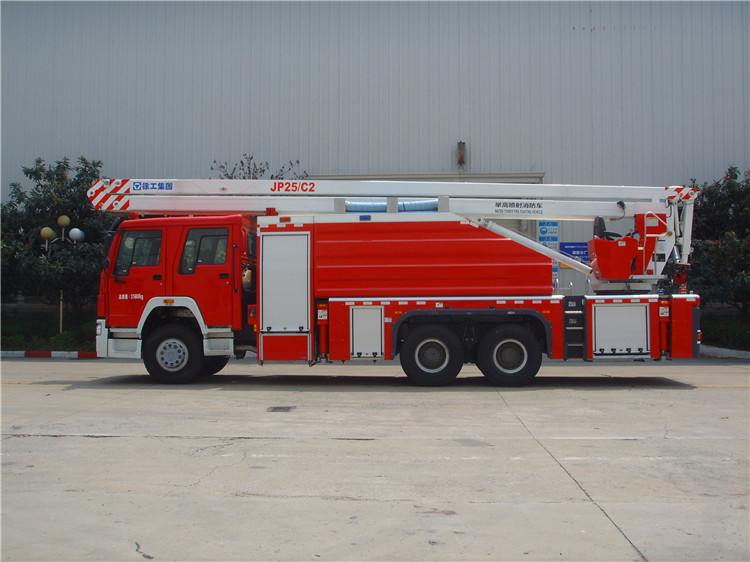

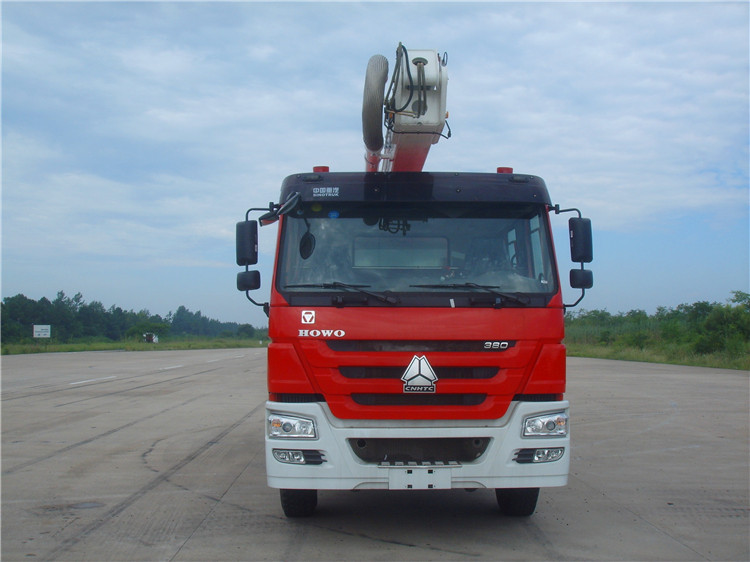

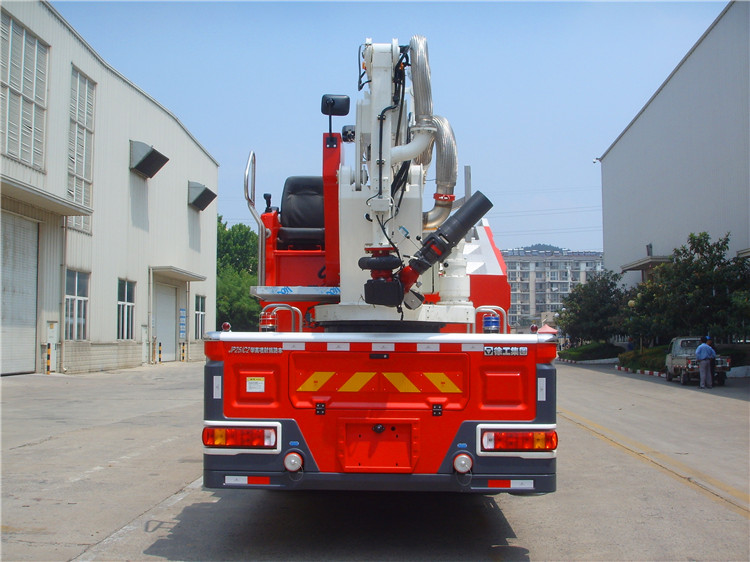

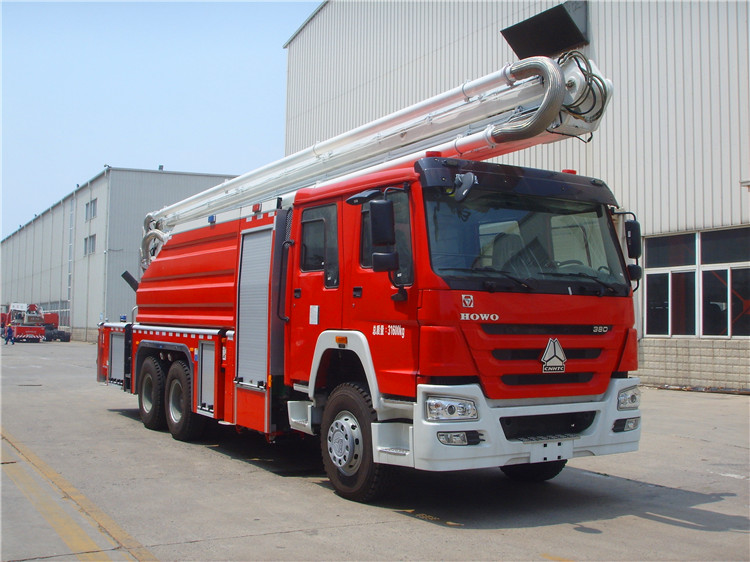

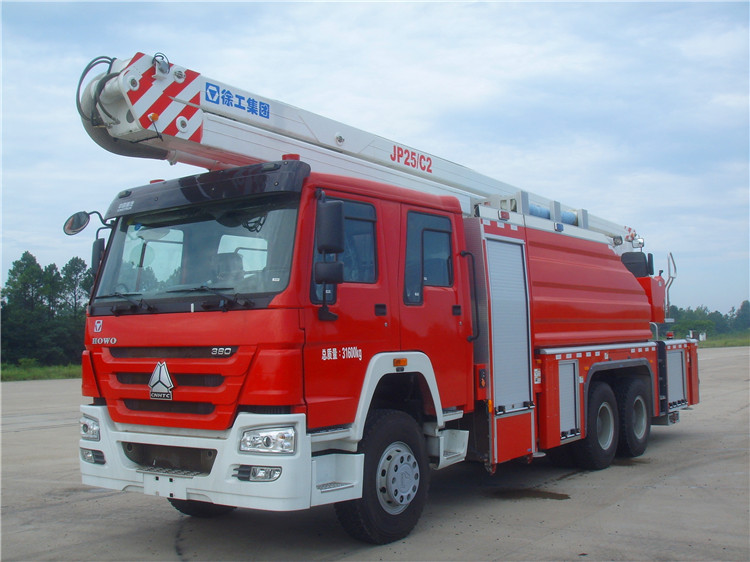

1.The JP25C2 Water Tower Fire Truck is a
new type of fire fighting vehicle that combines the functions of a water
tanker, a foam car, and a water tower truck. It is a multi-purpose fire
fighting vehicle with advanced domestic standards. The vehicle adopts
electro-hydraulic proportional and computer centralized control technology, and
is a fully hydraulically driven, 360-degree rotating, three-section folding arm
type fire fighting truck. The vehicle has advanced performance, stable
operation, fine motion, strong fire extinguishing ability, safe and reliable
operation, and advanced functions such as wired remote control. It can be
widely used in high-rise buildings in cities and towns, industrial and mining
enterprises, as well as in large-scale buildings such as petrochemical
companies, oil tanks, and warehouses.
2.This water tower truck uses vehicle chassis, the upper vehicle uses a full
swing, three folding arm structure. All the sports organizations adopt the way
of electric control and hydraulic drive, which makes the vehicle easy to
operate, flexible in action, safe and reliable, and practical. It uses a
computer to automatically control the extreme position of the deceleration and
stop, so that the operation is rapid, labor-saving, convenient, and stable, and
has a large range of speed, micro movement, accurate movement.
|
Main performance data |
||
|
Overall size : (L x W x H) |
11600×2500×3870mm |
|
|
Maximum total mass |
32350kg |
|
|
Maximum truck speed |
≥95km/h (Electronic speed limit) |
|
|
Minimum turning diameter |
≤23m |
|
|
Approach angle |
≥14° |
|
|
Departure angle |
≥9° |
|
|
Maximum climbing ability |
≥25% |
|
|
Outrigger span |
Outrigger longitudinal span |
5925mm |
|
Outrigger transversal span |
4830mm |
|
|
Electronic speed limit |
25m |
|
|
Max. working radius |
13m |
|
|
Range of amplitude of the boom |
Angle between the first section arm and the water
level: 0-85°; |
|
|
Angle between the first section arm and the second
section arm: 0-150°; |
||
|
Angle between the third section arm and the second
section arm: 80-170°. |
||
|
Turning range |
≤30s |
|
|
Leg deployment time |
≤60s |
|
|
Rotation speed of the boom |
0.5~1.5r/min |
|
|
Fire pump |
Rated flow |
80 L/s |
|
Rated pressure |
1.4MPa |
|
|
Fire monitor |
Model |
PLKD80-3480+5178+738 |
|
PLKD80+738 |
||
|
Rated flow |
80 L/s±8% |
|
|
Rated pressure |
0.8MPa |
|
|
Shoot range |
Water: 75m |
|
|
Foam: 70m |
||
