XCMG Official 32m Small Fire Truck JP32C4 multi-functional water and foam tower fire trucks for sale

  • XCMG Official 32m Small Fire Truck JP32C4 multi-functional water and foam tower fire trucks for sale
  • XCMG Official 32m Small Fire Truck JP32C4 multi-functional water and foam tower fire trucks for sale
  • XCMG Official 32m Small Fire Truck JP32C4 multi-functional water and foam tower fire trucks for sale
  • XCMG Official 32m Small Fire Truck JP32C4 multi-functional water and foam tower fire trucks for sale
  • XCMG Official 32m Small Fire Truck JP32C4 multi-functional water and foam tower fire trucks for sale
  • XCMG Official 32m Small Fire Truck JP32C4 multi-functional water and foam tower fire trucks for sale
  • XCMG Official 32m Small Fire Truck JP32C4 multi-functional water and foam tower fire trucks for sale

Share:
XCMG Official 32m Small Fire Truck JP32C4 multi-functional water and foam tower fire trucks for sale
FOB for OEM Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Model: JP32C4
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG Official 32m Small Fire Truck JP32C4 multi-functional water and foam tower fire trucks for sale
XCMG Official 32m Small Fire Truck JP32C4 multi-functional water and foam tower fire trucks for sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
Summary
  • Model Number:JP32C4
  • Brand Name:XCMG
  • Place of Origin:Jiangsu, China
  • Size:11800*2500*4000mm
  • Max Work Height:32m
  • Fuel Type:Diesel
  • Emission Standard:EURO 5
  • Tank Capacity:7001 - 10000L
  • Horsepower:351 - 450hp
  • Transmission Type:Manual
  • Drive Wheel:6x4
Details
  • weight:32600.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:New
  • Moving Type:Other

XCMG Official 32m Small Fire Truck JP32C4 multi-functional water and foam tower fire trucks for sale

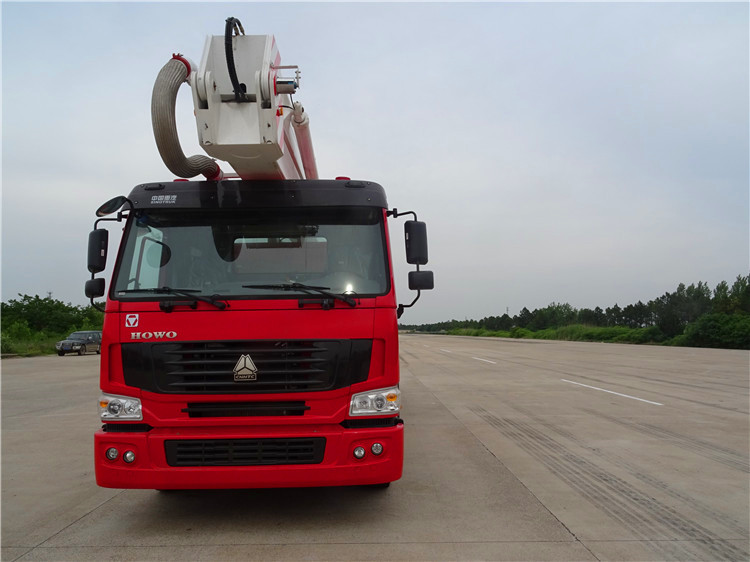

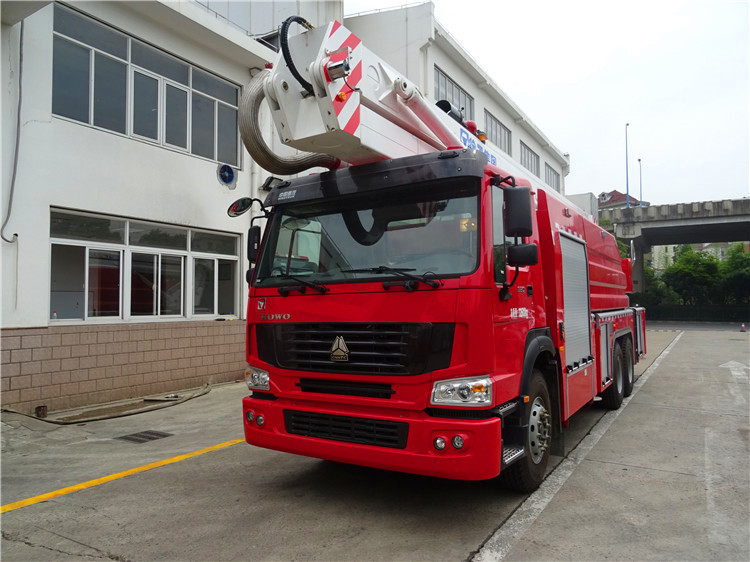

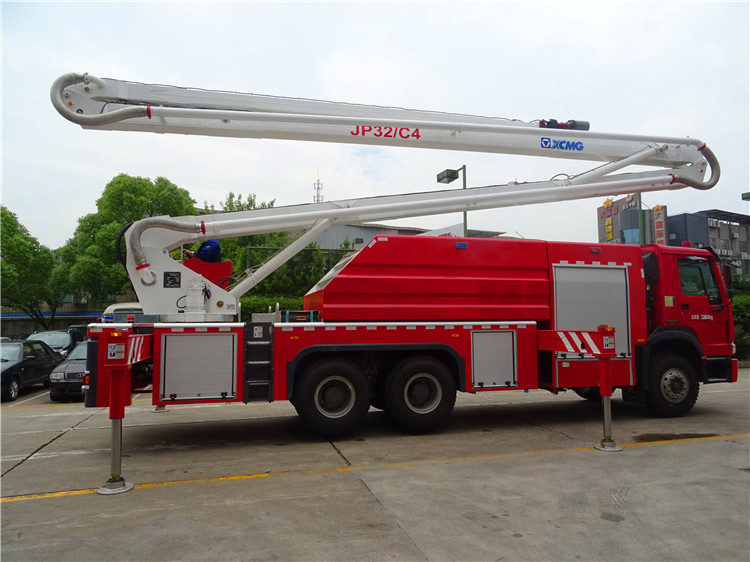

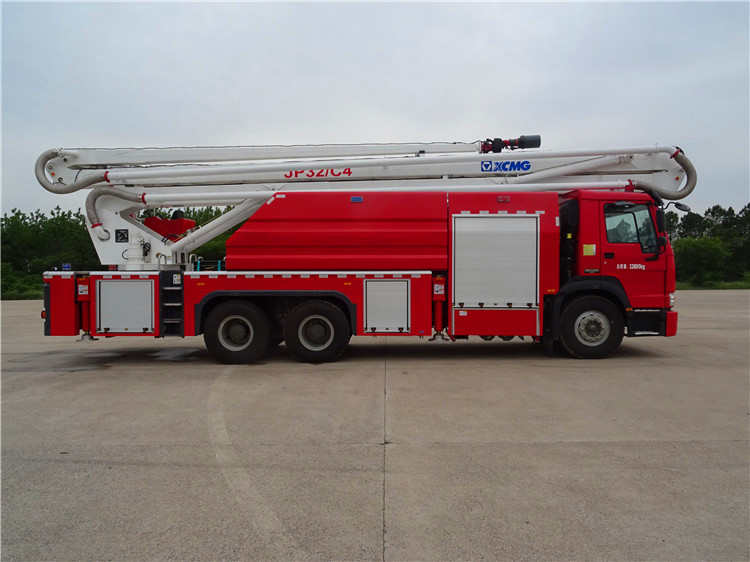

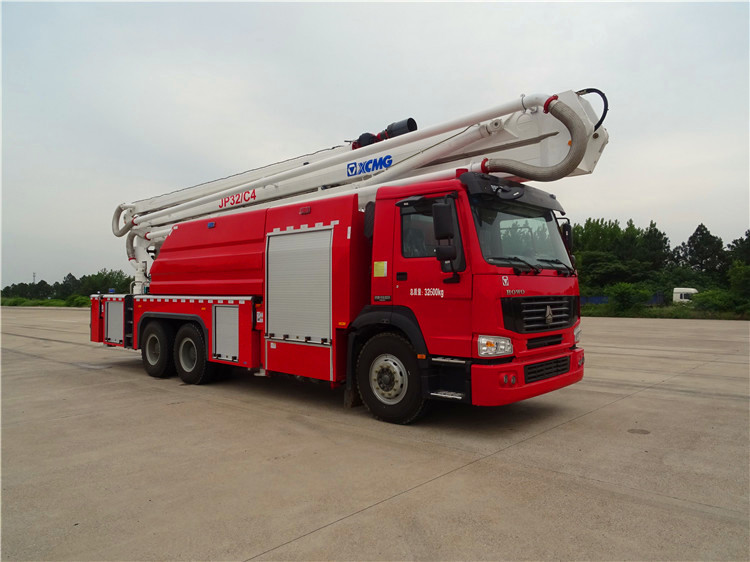

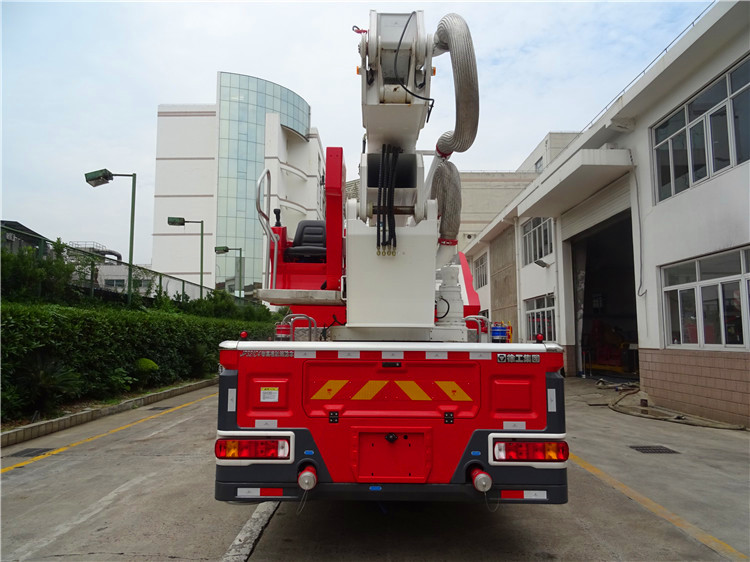

XCMG Official 32m Small Fire Truck JP32C4 multi-functional water and foam tower fire trucks.



1.The JP32/C4 water tower fire truck is a main battle vehicle that combines the functions of a water tanker, a foam vehicle, and a water tower truck. It is widely used in fire protection and rescue work of middle and high buildings such as towns, mines, oil fields and factories. It is the first choice for extinguishing fires in high and medium-rise buildings, rescue personnel in distress and rescue property.

2.It adopts SINOTRUK type II vehicle IV Chassis, which has a large carrying capacity, strong power and flexible maneuver. It has two power output units (PTO), one to drive the pump and the other to drive the pump. It adopts electro-hydraulic proportional and computer centralized control technology and is a fully hydraulically driven, 360° rotation, and three-section folding arm. The vehicle comes with US Darley company's water pump and 3480 +5178 + 738 fire water monitor. The maximum flow rate of fire fighting system can reach 80L/S, the effective range of water spray is greater than or equal to 75 meters. The large flow rate and large rush-saving radius can satisfy most of Class A and B fires.

3.It is equipped with a 40-meter cable remote control operating system, which is more suitable for extinguishing dangerous places such as oil tanks. At the same time, the vehicle comes with a water tank and a foam tank. The whole vehicle is equipped with a large-capacity fire-fighting liquid tank capable of carrying 8.6Kg, and can independently complete the fire fighting operation at a position far from the water source. This greatly enhances the fire fighting efficiency and provides powerful high-end fire fighting equipment for fighting fires.

XCMG Official 32m Small Fire Truck JP32C4 multi-functional water and foam tower fire trucks for sale

Main performance data

Overall size : (L x W x H)

11800×2500×4000mm

Full-load weight

32600KG

Maximum truck speed

≥90km/h

Minimum turning diameter

≤24m

Approach angle

≥14°

Departure angle

≥9°

Maximum gradeability

≥25%

Outrigger span

Outrigger longitudinal span

Outrigger transversal span

Maximum working height

32m

Max. working radius

19m

Changing angle of boom

First section arm (related to water level): 0-80°

Second section arm (related to first section arm):0°-140°

Third section arm (related to second section arm): 0°-210°

Turning range

360° full rotation

Leg deployment time

≤30s

Rated height of boom lifting

≤80s

Maximum turning speed

0.5~1.0r/min

Fire pump

Rated flow

80L/s

Rated pressure

1.4MPa

Fire monitor

Model

(Foam monitor)

(Water)

Rated flow

80L/s

80L/s

Rated pressure

0.8MPa

0.8MPa

Shoot range

≥70m

≥75m
