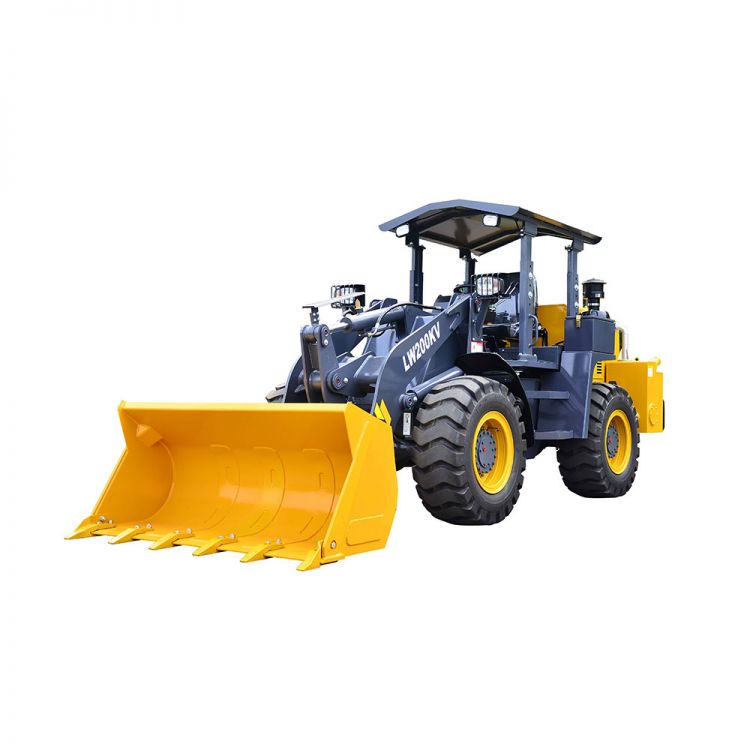

> XCMG Official LW200KV Mining Wheel Lo...
- Summary
- Specifications
Summary
- Rated Load:2000kg
- Dimension(Long* Breadth * High):5950x1960x2550mm
- Place of Origin:China
- Model Number:LW200KV
- Brand Name:XCMG
- Certification:IOS9001
Specifications
- weight:6400.000kg
- Condition:New
- Moving Type:Wheel
Description |
Specification |
Unit |
|
Rated operating load |
2000 |
kg |
|
Bucket capacity |
1 |
m³ |
|
Machine weight |
6400 |
kg |
|
Dump clearance at maximum lift |
2580 |
mm |
|
Reach at maximum lift |
960 |
mm |
|
Wheel base |
2300 |
mm |
|
Tread |
1490 |
mm |
|
Max. breakout force |
56 |
Kn |
|
Max. horse power |
45 |
Kn |
|
Hydraulic cycle time-raise |
5 |
s |
|
Total hydraulic cycle time |
9 |
s |
|
Min. circle radius over outside bucket |
5100 |
mm |
|
Min. turning radius over tyres |
4450 |
mm |
|
Articulation angle |
35 |
° |
|
Gradeability |
28 |
° |
|
Tyre size |
16/70-20 |
||
Overall machine dimension LxWxH |
5950x1960x2550 |
mm |
|
Engine Model |
LR4B3ZU-G73X3QR-U3 |
||
Rated power/Speed |
66.2/2400 |
Kw/rpm |
|
Travel speed |
I-gear(F/R) |
10 |
km/h |
II-gear(F/R) |
28 |
km/h |
|
Response Time : Within 24 hours
XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
