Summary
- Rated Load:5000kg
- Dimension(Long* Breadth * High):7910*3016*3515mm
- Type:front loader
- Place of Origin:China
- Model Number:LW500FN
- Brand Name:XCMG
- Certification:CE/ISO9001
Specifications
- Weight:16900.000kg
- Engine Brand:SHANGCHAI
- Rated Load:6-10 ton
- Bucket Capacity:2.5 - 3.5m³

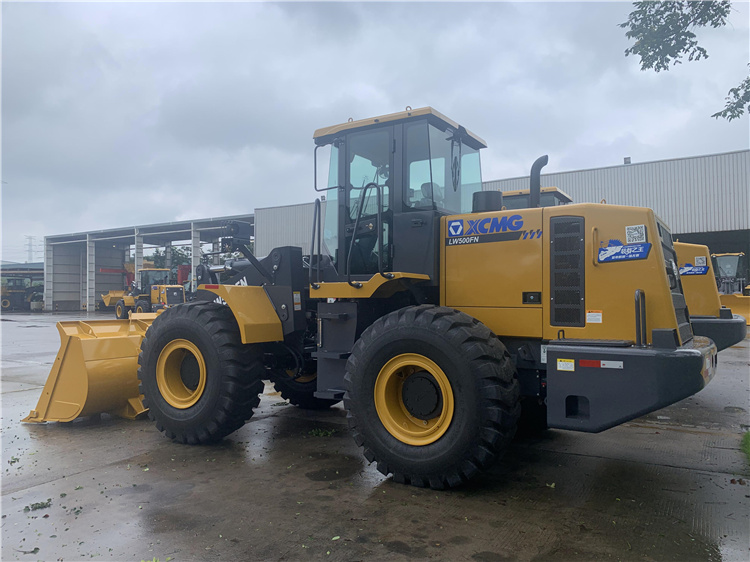

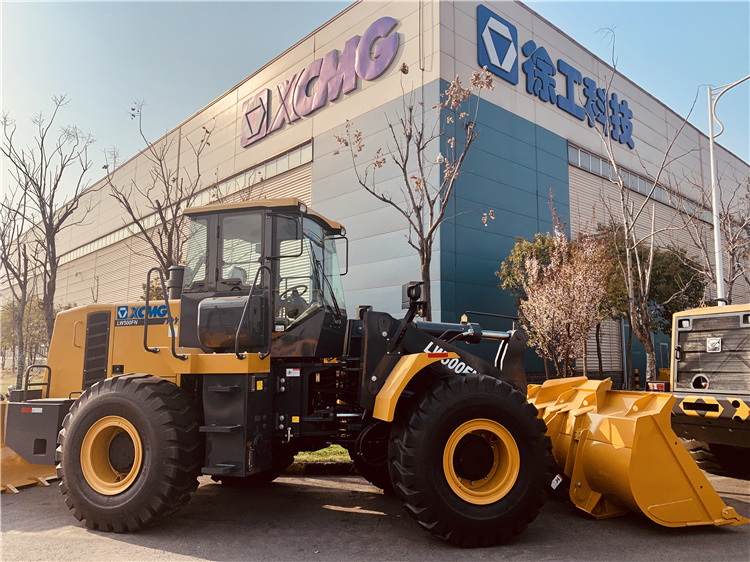

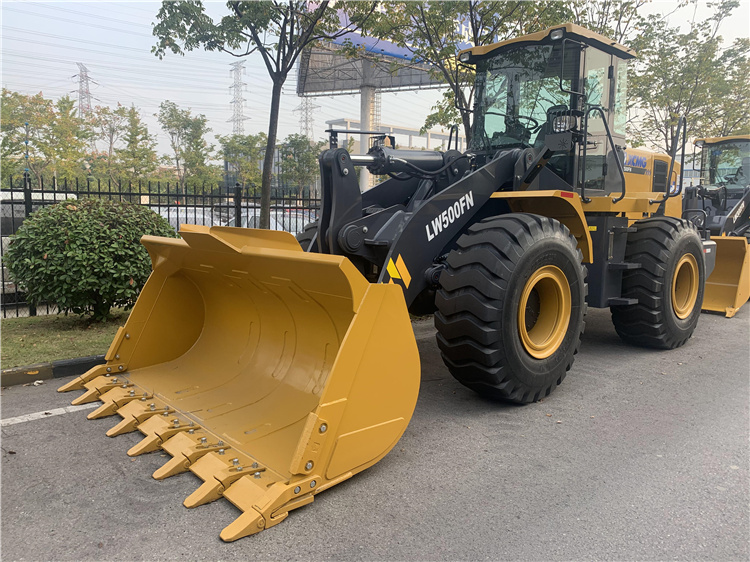

XCMG Official 5 ton Shovel Wheel Loader LW500 China Loader Machine.
LW500FN boasts outstanding advantages (such as efficiency) in the fields of engineering constructions, aggregate yards, and coal logistics.
Performance Highlights:
1. The 160kN traction force and ≥3. 5m high dumping capacity handle the severe conditions with ease.
2. ≥7 ,500kg lifting capacity and 170kN breakout force handle all kinds of materials with ease.
3. The front frame adopts the box structure with integrally cast lugs and the rear frame adopts the special-shaped box beams welded from variable stiffness bent plates, featuring high carrying capacity.
4. The hinged joints between front and rear frames adopt the structure of rolling bearings + knuckle bearings, featuring high carrying capacity and working stability.
5. With short wheelbase and small turning radius, this product features high mobility and flexibility and outstanding field adaptability.

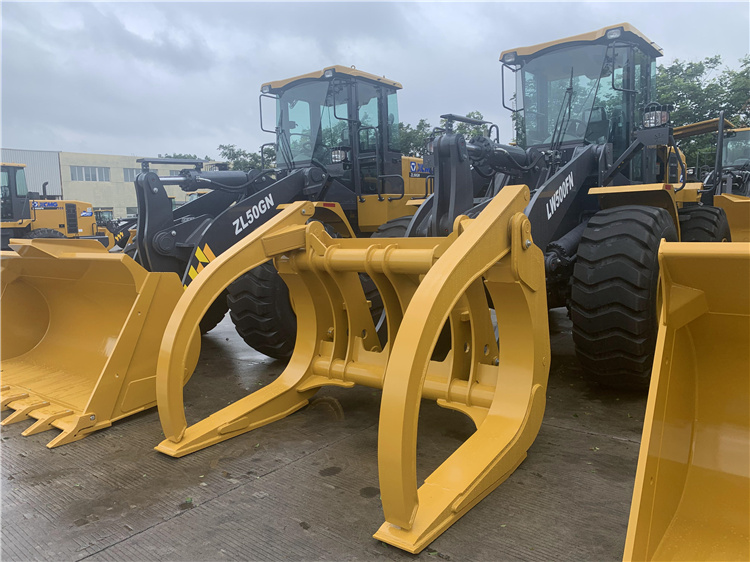

*Variety attached tools meeting requirements of different working conditions: Clipping plier I (paired teeth)/ Clipping plier II (staggered teeth)/ Toad's mouth clamp/ Port plier/ Grasping grass machine/ Pallet fork/ Snowplow.
|
Description |
Unit |
Parameter value |
|
|
Rated operating load |
kg |
5000 |
|
|
Bucket capacity |
m³ |
2.5～4.5 |
|
|
Machine weight |
kg |
16900 |
|
|
Dump clearance at maximum lift |
mm |
3150～3560 |
|
|
Reach at maximum lift |
mm |
1100～1190 |
|
|
Wheel base |
mm |
2960 |
|
|
Tread |
mm |
2250 |
|
|
Height of hinge at maximum lift height |
mm |
4112 |
|
|
Working height(fully lifted) |
mm |
5510 |
|
|
Max.breakout force |
kN |
170 |
|
|
Hydraulic cycle time-raise |
s |
≤6 |
|
|
Total hydraulic cycle time |
s |
≤10.5 |
|
|
Min. turning radius over tyres |
mm |
5950 |
|
|
Articulation angle |
° |
35 |
|
|
Gradeability |
° |
28 |
|
|
Tyre size |
23.5-25-16PR |
||
|
Overall machine dimension L×W×H |
mm |
7910×3016×3515 |
|
|
Model |
WD10G220E21 |
||
|
Rated Power |
kW |
162 |
|
|
Fuel Tank |
L |
250 |
|
|
Hydraulic Tank |
L |
210 |
|
|
Travel Speed |
Ⅰ-gear(F/R) |
km/h |
13/18 |
|
Ⅱ-gear(F/R) |
km/h |
40 |
