- Rated Load:6000
- Dimension(Long* Breadth * High):8505×3220×3515mm
- Type:Front Loader
- Place of Origin:China
- Model Number:LW600FV
- Brand Name:XCMG
- Product Name:357636-LW600FV
- Display online time:2019-11-07
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Moving Type:crawler
- Dumping heigh (Ground to main cutting blade):3170-3750mm
- Dumping range (Front wheels to main cutting blade):1200-1360mm
- Wheel tread :2265mm
- Hinge height at maximum lifting height :4190mm
- Minimum turning radius (tire center) :6005mm
- Overall machine dimensions (L×W×H) :8505*3200*3515mm
- Rated load:6000kg
- Bucket capacity:3.0-4.5m3
- Operating mass :20000kg
- Working height:5550mm
- Maximum breakout force:205kN
- Maximum traction force:174kN
- Lifting time of boom:≤5.9s
- Total cycle time :≤10.9s
- Tire specification :23.5-25

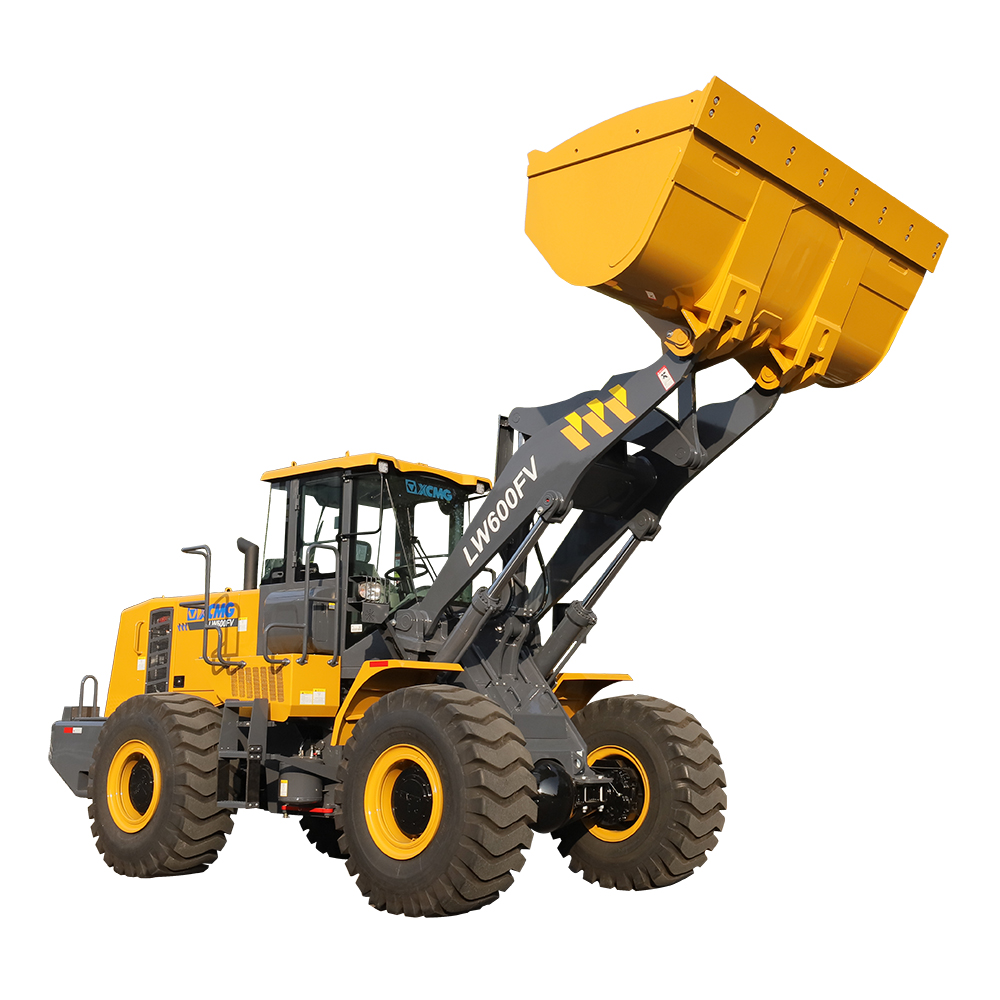

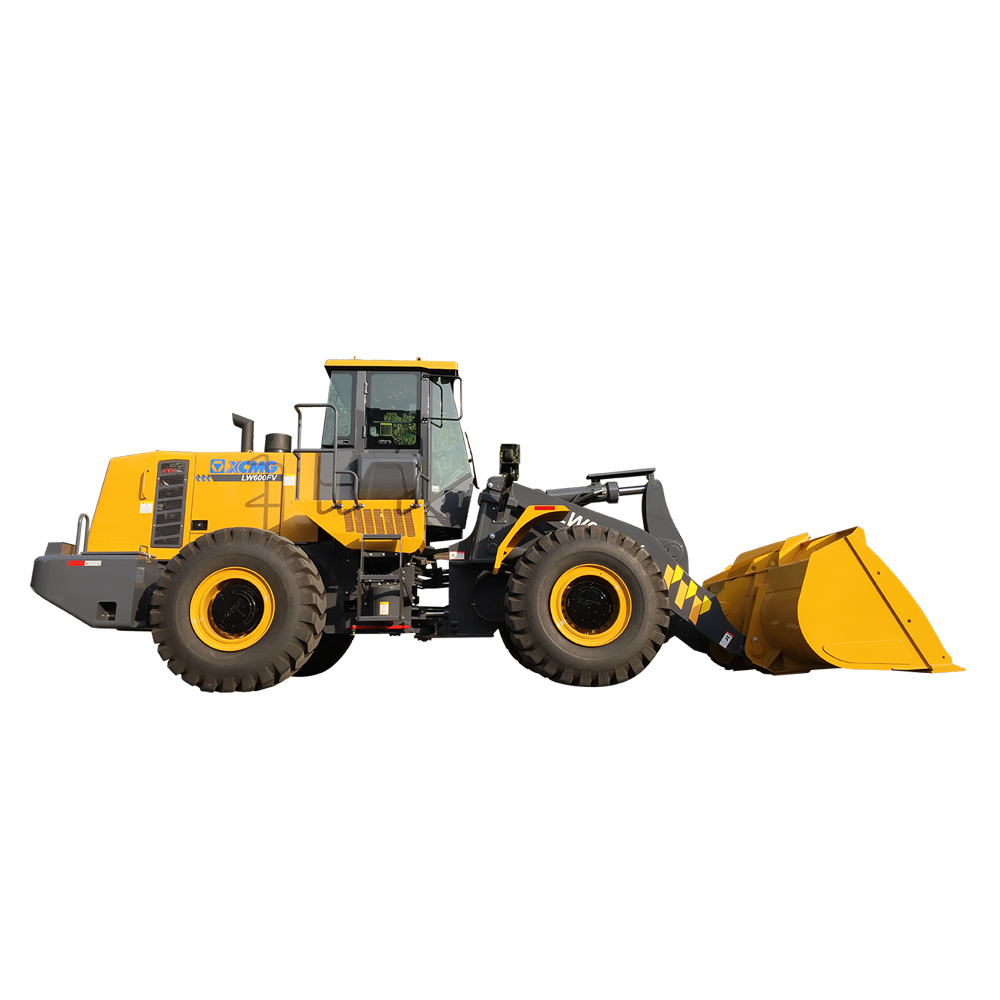

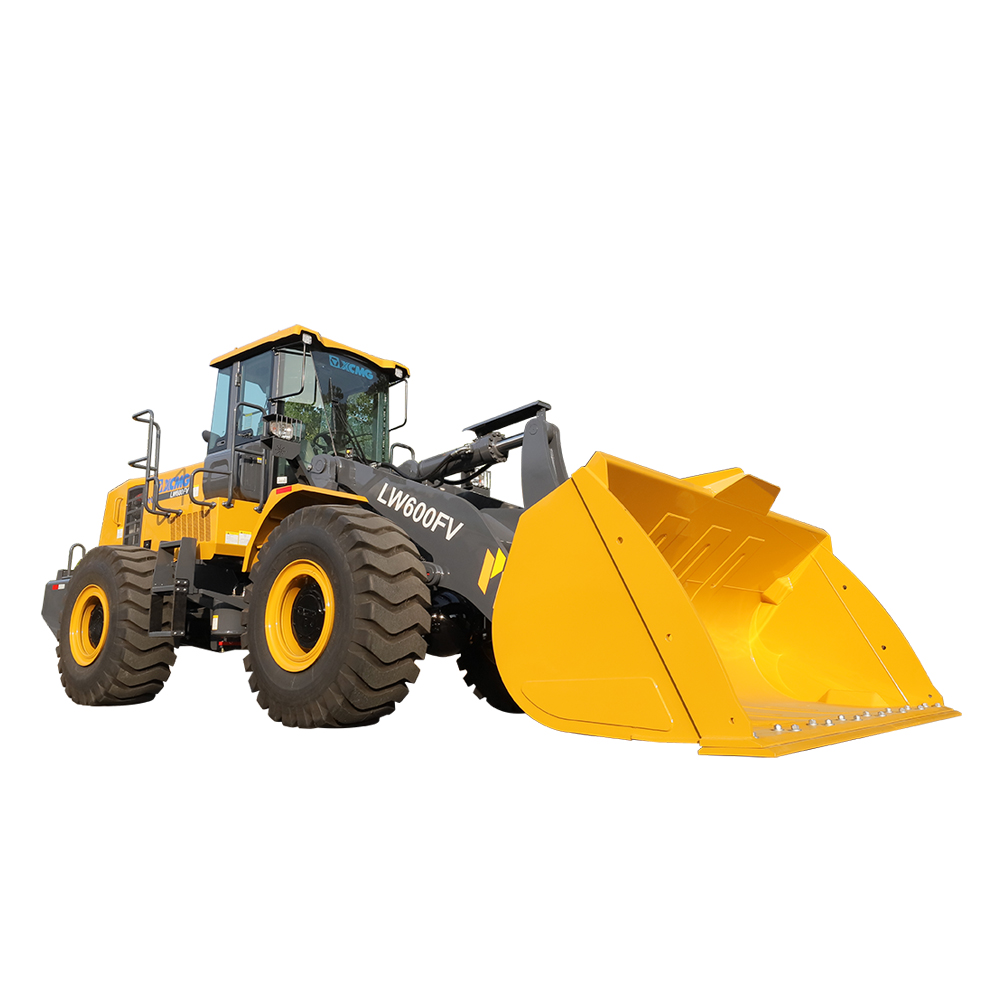

LW600FV loader is equipped with XCMG dedicated Weichai engine, XCMG electronic control transmission, and XCMG patented automatic power distribution (APD) hydraulic system. The steering plunger pump can, based on different working conditions and statuses of the loader, supplies the oil of different pressures and flows to the working system and steering system to automatically optimize the shares of engine power for drive system and hydraulic system, reduce the fuel consumption, and remarkably improve the working efficiency of machine.
The ≥17.4t traction force and ≥20.5t breakout force conquer all kinds of severe working conditions.
The 38° steering angle and the 3,350mm wheelbase adapt to diversified narrow working sites.
Electronic control transmission - XCMG heavy-duty electronic control countershaft transmission is in line with the international level in terms of reliability, operation comfort, multi-functionality, and technologic advancement and has gained multiple national patents.
Integrated cab - The super-large, full-view, ultra-low noise, and slightly pressurized cab is fitted with audio system and A/C, the joysticks are under follow-up status with the seat, and all control units are easily accessible to build the best operating environment.
Lightweight design technology - XCMG's exclusive high strength skeleton frame system is applied and the dynamics simulation research, the in-depth finite element analysis, and the lightweight design are taken to realize that the “load-carrying material ratio” is remarkably leading the industry products.
Patented bushing lubrication technology - The industry’s pioneering bushing lubrication structure is applied to prolong the life of the hinge pins by more than one time.
Patented double-limit technology - The combination mode of primary flexible limit and secondary rigid limit attenuates the impact onto the frame and improves the operation comfort.
Dumping heigh (Ground to main cutting blade)
Dumping range (Front wheels to main cutting blade)
Hinge height at maximum lifting height
Minimum turning radius (tire center)
Overall machine dimensions (L×W×H)
Maximum breakout force
Maximum traction force
Lifting time of boom
Total cycle time
Oil tank capacity
Hydraulic oil tank capacity
Gear I (Drive/reverse)
Gear II (Drive/reverse)
Gear III (Drive/reverse)
Gear IV (Drive/reverse)
