XCMG Official 9 Ton

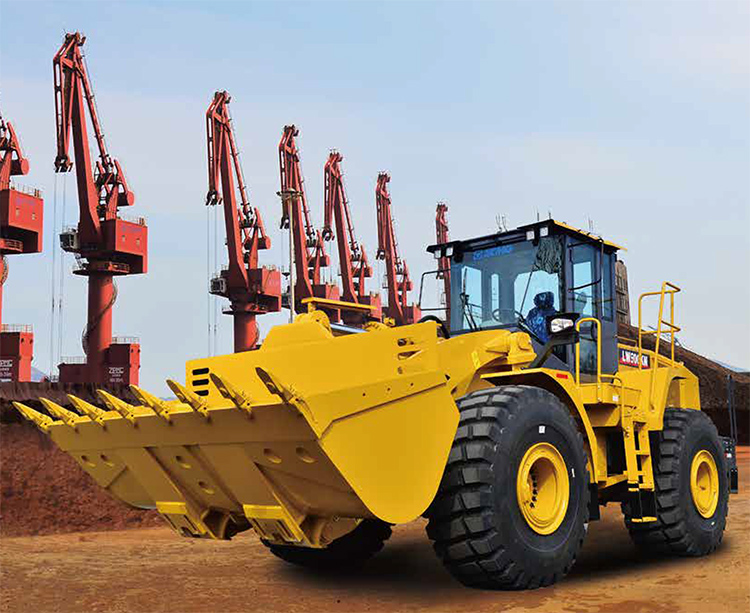

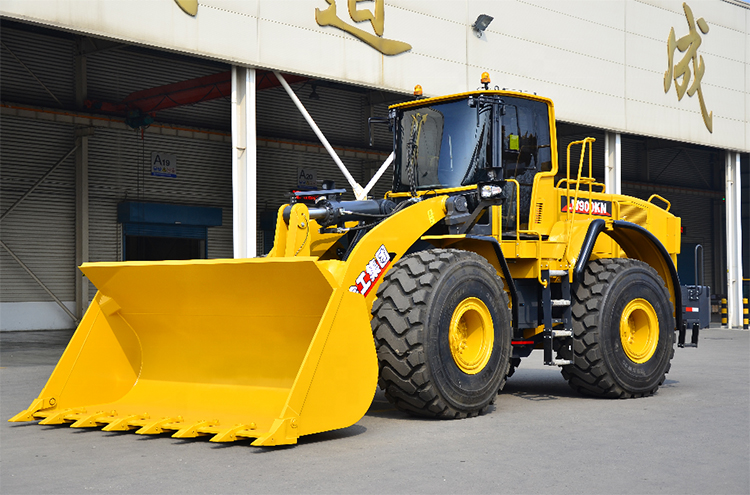

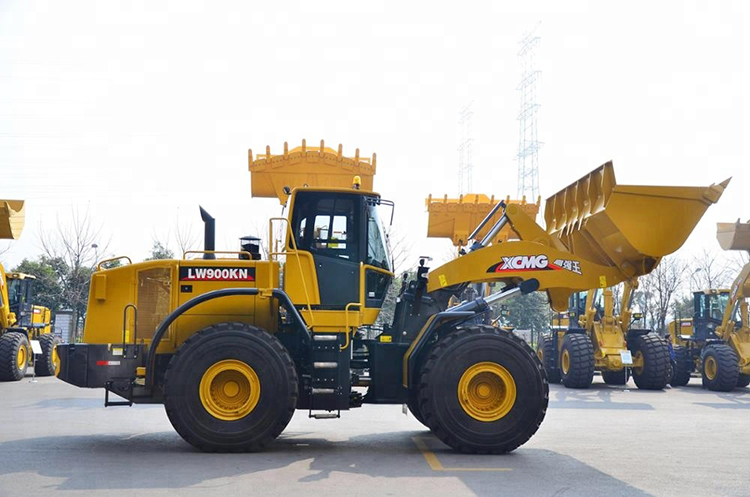

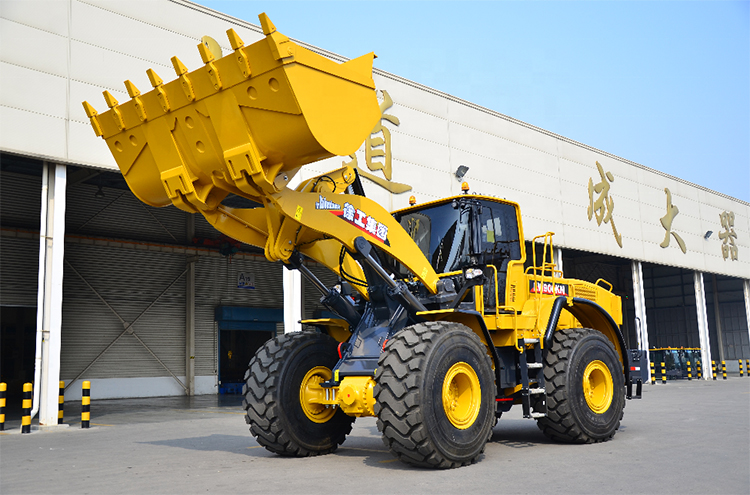

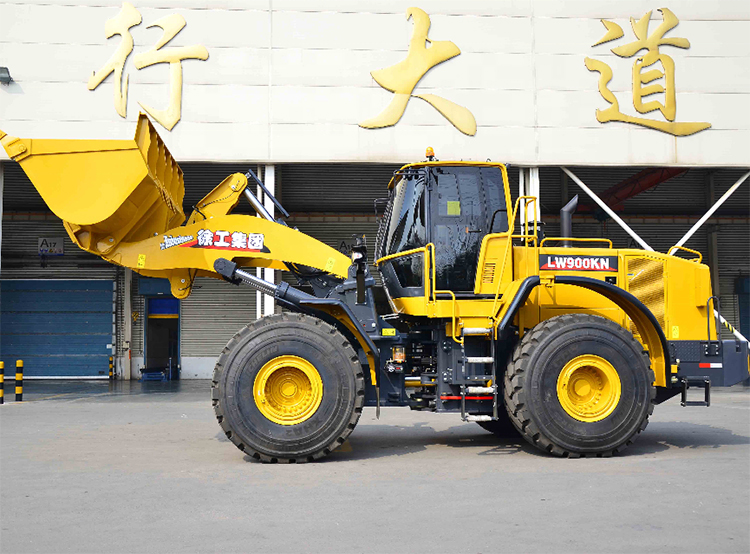

Mining Front End Wheel Loader LW900KN China Big Loader Mine Bulk Loader.

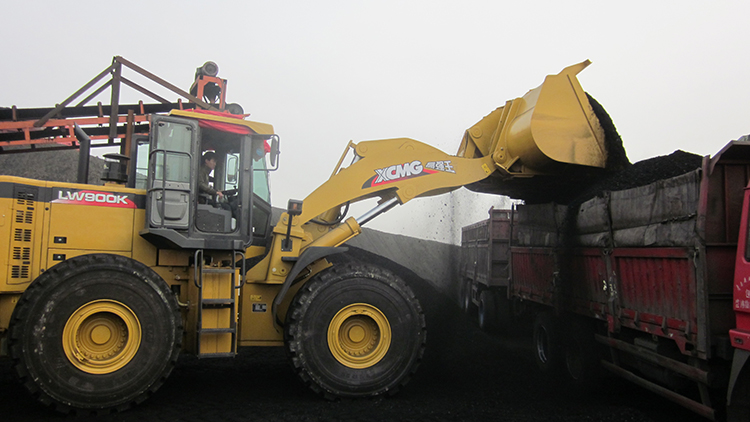

XCMG wheel loader LW900K is the most popular model of China 9t large wheel
loader, Now LW900KN is upgrading to new model LW900KV equipped with EURO III
engine with electric injector, new model will have high performance.
1.The latest
integrated FOPS & ROPS ultra-low-noise cab features European/American
mainstream style and super-large space and integrates the world's most advanced
technologies nowadays to reach the world-class level and realize higher safety,
broader visual field, and better operating comfort.
2.The scientifically matched and in-depth optimized drive system and the
transmission and drive axle of international advanced quality achieve higher
efficiency and reliability.
3.The extended wheelbase heavy-load design and the structural parts analyzed
and optimized by 3D simulation meet the operation needs under severe working
conditions.
4.The load-sensing variable technology is applied to supply the oil pressure
and flow depending on the working needs, which greatly improves the utilization
efficiency of fuel.
5.The independent single-row radiator system with large fin spacing is applied
to thoroughly solve the thermal balance difficult during operations under
diversified severe environments.
Description | Unit | Parameter value | |
Wheel base | mm | 3600 | |
Tread | mm | 2460 | |
Dump clearance at maximum lift | mm | 3400 | |
Reach at maximum lift | mm | 1400 | |
Height of hinge at maximum lift height | mm | 4600 | |
Working height (fully lifted) | mm | 6415 | |
Overall machine dimension L×W×H | mm | 9500×3500×3845 | |
Rated operating load | kg | 9000 | |
Bucket capacity | m³ | 5 | |
Machine weight | kg | 31000 | |
Max. breakout force | kN | 260 | |
Max. horse power | kN | 245 | |
Lifting time of boom | s | ≤6.5 | |
Total cycle time | s | ≤11.5 | |
Minimum turning radius (at tire center) | mm | 6200 | |
Articulation angle | ° | ±38 | |
Gradeability | ° | 25 | |
Tyre size | 29.5R25 | ||
Engine Model | CUMMINS QSM11—C335 | ||
Rated Power/Speed | kW/rpm | 250/2100 | |
Travel Speed | Ⅰ-gear(F/R) | km/h | 7/7 |
Ⅱ-gear(F/R) | km/h | 11.6/11.6 | |
Ⅲ-gear(F/R) | km/h | 24.5/24.5 | |
Ⅳ-gear(F/R) | km/h | 35 |
