XCMG official 280HP 6X4 cheap dump truck NCL3258 construction heavy stock dumper truck on sale
Summary
- Horsepower:280HP
- Drive type:6x4
- Emission Standard:Euro 3
- Wheelbase:3650+1350mm
- Gross vehicle weight:24675kg
- Model Name:NCL3258
- Place of Origin:Jiangsu,China
- Certification:CE/ISO9001
Specifications
- weight:24675.000kg
- Fuel Type:Diesel
- Capacity (Load):14000kg
- Max. Travel Speed:80km/h
- Dimensions (L x W x H) (mm):5200*2300*1400mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

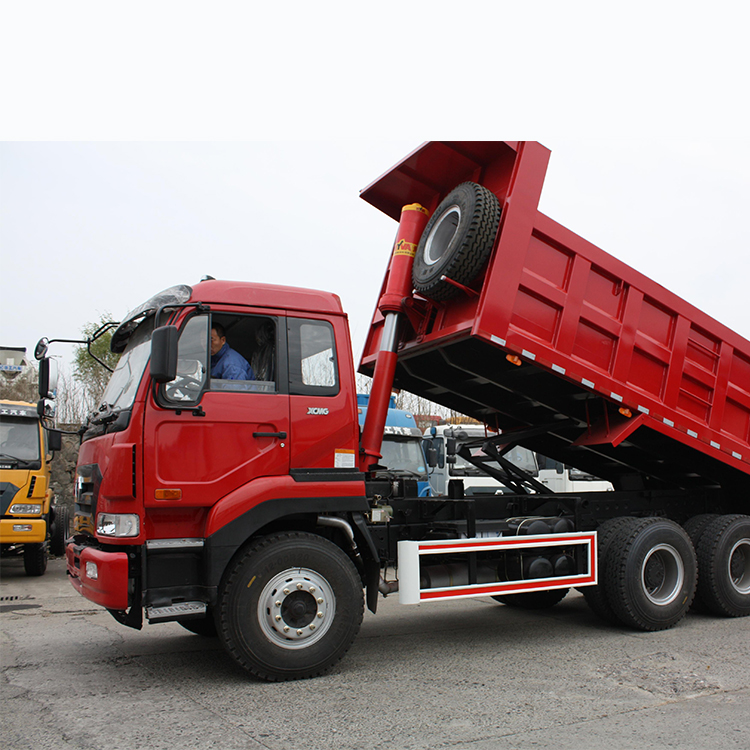

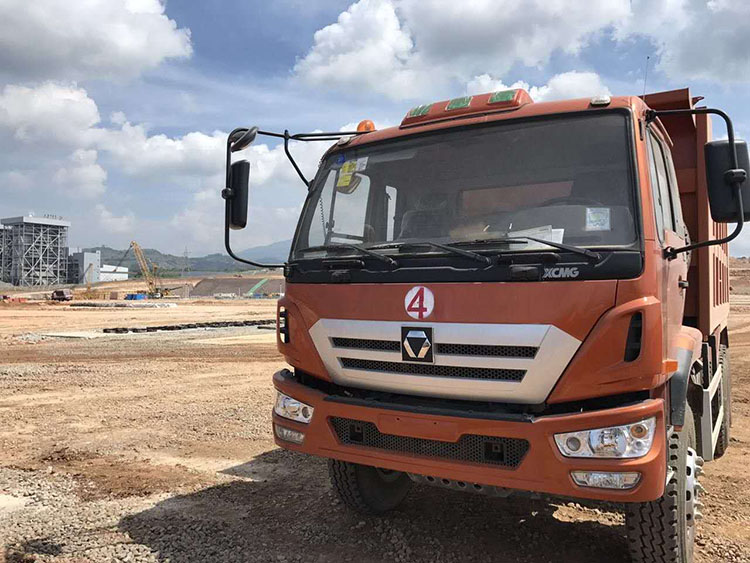

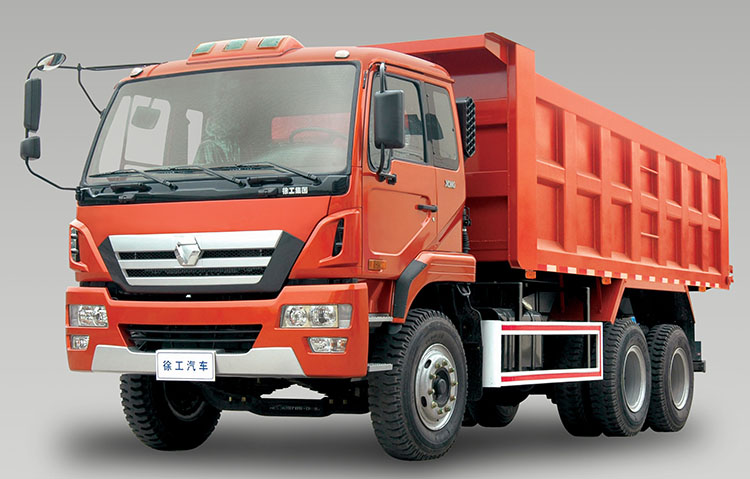

280HP 6X4 cheap dump truck NCL3258 construction heavy
stock dumper truck.
XCMG joint global advanced technology, widely used in the
internationalization of professional team, is more reliable and safer, more
comfortable, more economical, more environmental protection of a new generation
of high-end heavy card.
Advantages and Highlights:
* Elaborate Design
The V front face, with diamond crystal headlamps,
highlights the modern trend.
* Top Manufacturing
Adopting catholic electrophoresis enables the truck with
good quality and elegant appearance.
* Safety and Energy Conservation
The cabin with rational design adopts steel wedge-shaped
structure, which of safety, being fuelefficient and fast speed-raising.
* Gold Configuration
It adopts stabilizer bar, rear suspension with optimized
and strong thrust rod and suspension compression ramp structure.
* Reliability and Durality

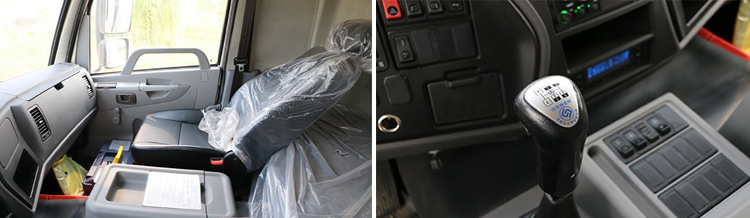

Console has reasonable layout, complete functions, and
visible various keys.
|
Dimension |
NCL3258 |
|
Overall size (length×width×height) |
7910×2490×3150mm |
|
Cargobody size (length×width×height) |
5200×2300×1400mm |
|
Wheelbase |
3650+1350mm |
|
Wheel tread (Front/Rear) |
2032/1848mm |
|
Min. ground clearancee |
270mm |
|
Kerb mass |
10480kg |
|
Gross vehicle weight |
24675kg |
|
Rated loading capacityy |
14000kg |
|
Max. travel speedd |
80km/h |
|
Min. turning diameter |
16m |
|
Max. gradeability |
30% |
|
Approach angle |
26° |
|
Departure angle |
26° |
|
Fuel consumption |
28(L/100 km) |
|
Engine |
6C280-2, water-cooling, turbocharging and intercooling, Euro Ⅱ emission
standard, direct injection diesel |
|
Rated output at 1,900rpmm |
280HP(206kw) |
|
Max. torque at 1200r/pm |
1117N.m |
|
Rated Fuel consumption |
205g/(KW.h) |
|
Rims |
8.00-20 |
|
Tyres |
12.00R-20 |
|
Operating voltage |
24V |
|
Alternator |
70A/28V |
|
Batteries |
6-QAW-165 |
|
Capacity |
240 L |
