- Summary
- Details
- Horsepower:351 - 450hp
- Drive type:6x4
- Emission Standard:Euro 3
- Wheelbase:3800+1400mm
- Gross vehicle weight:55620kg
- Model Name:NXG3250D2WC
- Place of Origin:Xuzhou,Jiangsu,China
- Certification:CE/ISO9001
- Product Name:G5F8FF81E1E395
- Display online time:2020-10-21
- weight:55620.000kg
- Fuel Type:Diesel
- Dimensions (L x W x H) (mm):8638*2500*3307mm

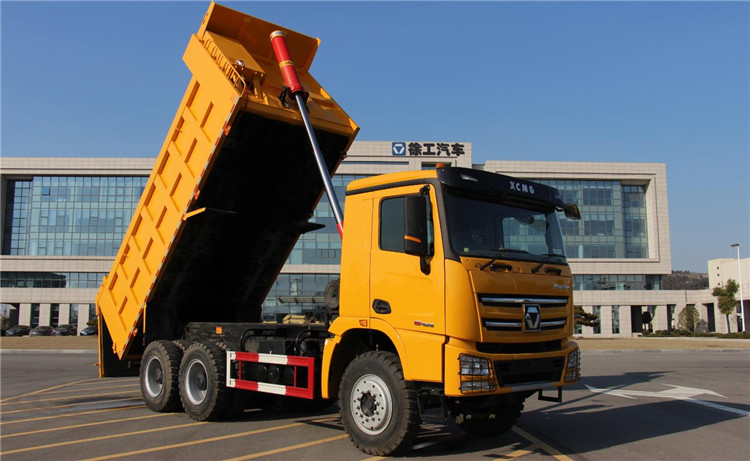

4 ton 371HP 6x4 cheap dump truck NXG3250D2WC China
discount trucks tipper.
XCMG joint global advanced technology, widely used in the
internationalization of professional team, is more reliable and safer, more
comfortable, more economical, more environmental protection of a new generation
of high-end heavy card.
Advantages and Highlights:
1.Comfortable Driving, Pleasant Enjoyment
* Symmetrical, refined, excellent and ergonomic design,
facilitates your driving operation; covering fittings adopt leather package,
strong light absorption, no high-light points, reduce visual fatigue.
* Multi-functional configuration, large storage space;
strictly control the gap and chromatism, meticulous work; silk-stocking airbag
seats.
2.Maximum Supporting capacity and practicability
* Golden power assembly-For the economic and reliability,
reliable brands engine, Fast gearbox, Steyer axles are adopted for our
manufacturing.
* The range of power output are from 280hp to 420hp to
achieve multi-working-condition.
* Modular designed chassis, neat arrangement highly
universalizable. Meanwhile, the reliability and convenience of maintenance have
been improved.
* HANVAN is the industry leader of Chinese heavy-duty
truck market, we provide standard model, composite model, heavy model, super
-duty model for your personal needs.
|
Dimensions(mm) |
Overall size (length×width×height) |
8638×2500×3307 |
|
Cargobody size (length×width×height) |
5800×2300×1300 |
|
|
Wheelbase |
3800+1400 |
|
|
Wheel tread (Front/Rear) |
2060/1860 |
|
|
Min. ground
clearance |
281mm |
|
|
Weight(kg) |
Kerb mass |
15620kg |
|
Gross vehicle
weight |
55620kg |
|
|
Rated loading capacity |
40000kg |
|
|
Performance |
Max. travel
speed |
79km/h |
|
Min. turning diameter |
17m |
|
|
Max.
gradeability(%) |
20% |
|
|
Approach angle |
23° |
|
|
Departure
angle |
25° |
|
|
Engine |
Brand |
SINOTRUK engine |
|
WD615.47,
water-cooling, turbocharging and intercooling, Euro emission standard, direct
injection diesel |
||
|
Rated output at 2,200rpm |
HP(371kw) |
|
|
Max. torque at
1400r/pm |
1460N.m |
|
|
Transmission |
Brand |
FAST |
|
Type |
9JSD150A |
|
|
Wheels rim& Tyres |
Rims |
8.50V-20 |
|
Tyres |
12.00R20 |
|
|
Electric System |
Negative grounded |
|
|
Operating
voltage |
24V |
|
|
Alternator |
70A/28V |
|
|
Batteries |
6-QAW-165 |
|
|
Fuel tank |
Capacity |
400L |
