- Summary
- Details
- Horsepower:375HP
- Drive type:6x4
- Wheelbase:3650+1350mm
- Gross vehicle weight:12400kg
- Model Name:NXG3251D3KC
- Place of Origin:Xuzhou,Jiangsu,China
- Certification:CE/ISO9001
- Product Name:G5F8EA96A9BE43
- Display online time:2020-10-21
- weight:12400.000kg
- Overall size:8115×2495×3380mm
- Max. travel speed:77km/h
6*4 cheap dump truck NXG3251D3KC China discount dump
truck mining mine tipper trucks.
XCMG K series tipper truck is upgrade products, which is
more comfortable and intelligent, can deal with it all whether in flat roads or
rugged site. Commonly used in earthwork, gravel and bulk delivery.
Reliable and Durable Sophisticated Manufacturing：
1.Equipped with well-known brands of engine such as
Weichai power, Cummins Engine, Hangzhou Engine, it has strong power, saves oil
and has high efficiency, with high torque reserve coefficient and speed
adaptation coefficient.
2.Being equipped with high-technology, high-quality and
reliable Fast gear transmission and Styr, Benz axle make its adaptability
superior.
3.Applying full three-dimensional digital design of
CAD/CAE, the vehicle has undergone Finite Element Simulation Analysis and
Optimization, with high power, high safety, high reliability and high economy.
|
Dimension |
NXG3251D3KC |
|
Overall size (length×width×height) |
8115×2495×3380mm |
|
Cargobody size
(length×width×height) |
5400×2300×1400mm |
|
Wheelbase |
3650+1350mm |
|
Wheel tread (Front/Rear) |
2057/1848mm |
|
Min. ground clearance |
290mm |
|
Kerb mass |
12400kg |
|
Gross vehicle weight |
24995kg |
|
Rated loading capacity |
12400kg |
|
Max. travel speed |
77km/h |
|
Min. turning diameter |
16m |
|
Max. gradeability |
30% |
|
Approach angle |
26° |
|
Departure angle |
20° |
|
Fuel consumption |
29(L/100 km) |
|
Engine |
water-cooling, turbocharging and intercooling, Euro III emission standard, direct injection diesel |
|
Rated output at 1,900rpm |
375HP |
|
Max. torque at 1200r/pm |
1500N.m |
|
Rated Fuel consumption |
196g/(KW.h) |
|

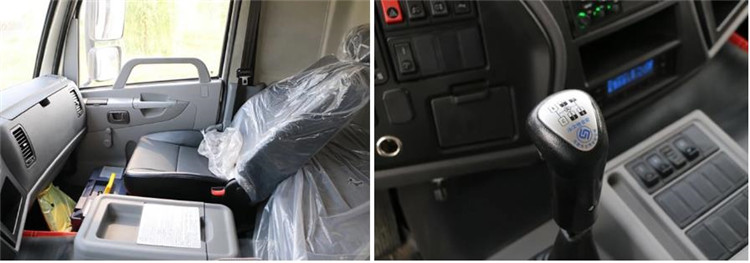

Driver's Cab |
tiltable cab , with air-conditioner & ventilation, adjustable driver's seat ,single sleeper |
|
Transmission Type |
12JSD180TA |
|
Steering |
hydraulic steering with power assistance |
|
Front axle |
7.5T Elliot type, I beam section |
|
Rear axle |
26T |
|
Clutch |
Single-plate dry coil-spring clutch, diameter
430, hydraulically operating with air assistance |
|
Service brake |
dual circuit compressed air brake |
|
Parking brake |
spring energy operating on rear wheels |
|
Auxiliary brake |
engine exhaust brake |
|
Rims |
8.50V-20 |
|
Tyres |
12.00R-20 |
|
Operating voltage |
24V |
|
Alternator |
70A/28V |
|
Batteries |
6-QAW-165 |
|
Capacity |
240 L |
