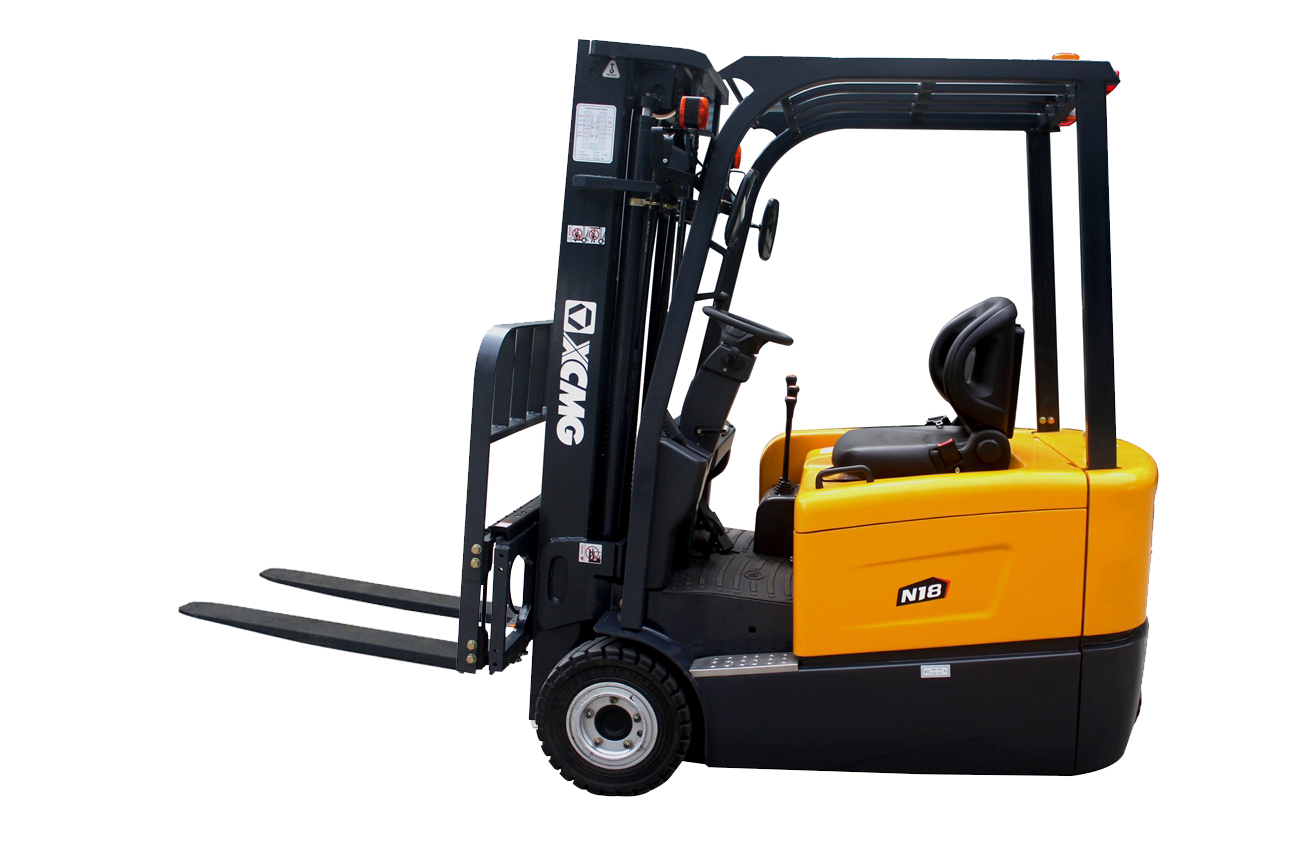

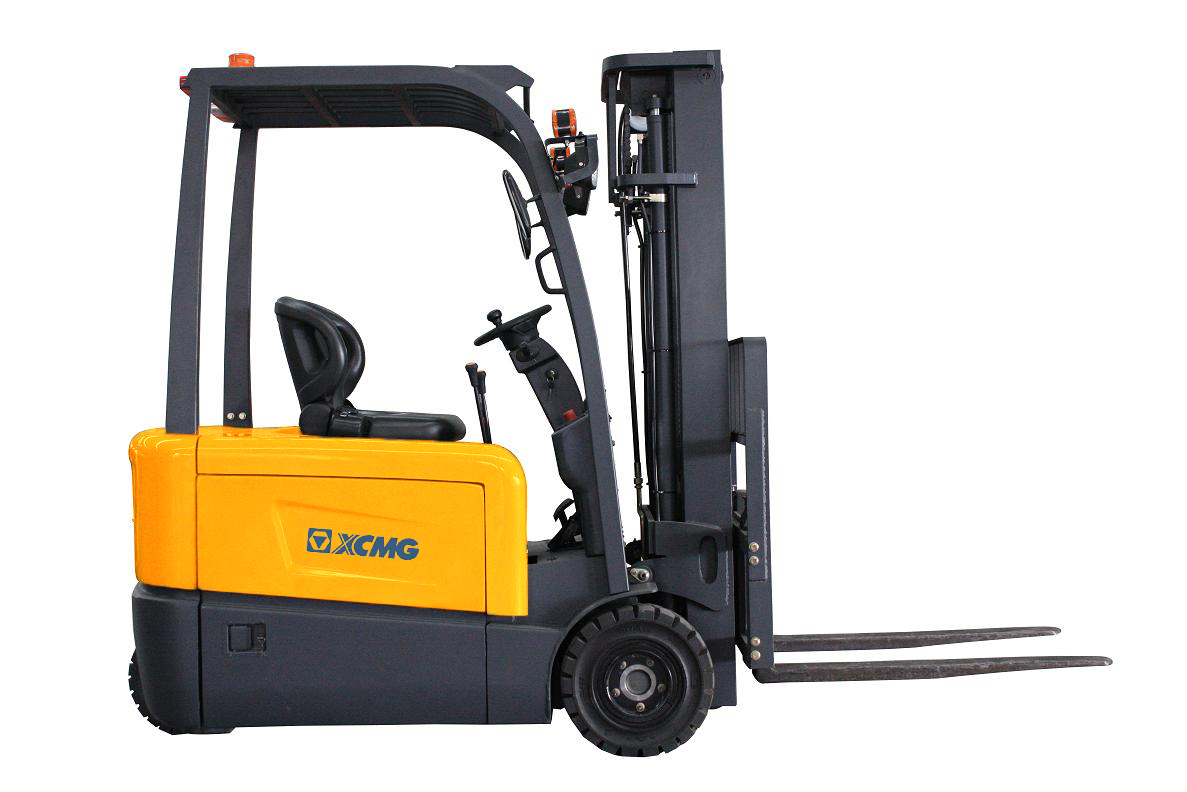

XCMG Official 1.3-2.0T wheel electric forklift for sale
Summary
- Brand Name:XCMG
- Place of Origin:China
Specifications
- weight:2000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
1.3-2.0T wheel electric forklift:
• Full AC System
• OPS System
• Comfortable Operator Space
• Side-way Battery Change System
• Lower Energy Consumption and Energy Regeneration Function
• Easy-to-read operator display
• Front Dual AC Motor Traction System
• World Class Gear Box System
• Automatic Maintenance Alarm
• Zero-Emission,Zero-Pollution,Low-Level Vibration,Low-Level Vibration,Low Operation Cost, High Efficiency ,High Quality,these are the reasons for you to choose a XCMG Electric Forklift.
• The most advanced 3-phase full AC technology in XCMG’s electric range combining the Italian ZAPI electric controller,ZAPI-SUPEREC AC motors,and HAKWER battery,as well as the excellent hydraulic system,these features guarantee your material handling become the most cost-efficient.
• The Energy Regeneration Function extend extra 15% working hours,which provide the possibility for your tough and long-time working condition.
| Model | FBT18-AZ1 | FBT20-AZ1 | FBT13-AZ1 | FBT16-AZ1 | |
| Rated Load Capacity | Q(kg) | 1800 | 2000 | 1300 | 1600 |
| Load Centre | C(mm) | 500 | 500 | ||
| Lift Height | H3(mm) | 3000 | 3000 | ||
| Free Lift | H2(mm) | 100 | 100 | ||
| Fork Size (L×W×T) | L/W/T(mm) | 1070X120X40 | 920×120×35 | ||
| F/B(α°/β°) | Deg | 6°/6° | 6°/6° | ||
| Length (To Fork Face) | L1(mm) | 1955 | 2075 | 1855 | 1955 |
| Width | B1(mm) | 1082 | 1140 | 1082 | |
| Mast Lowered Height | H1(mm) | 2085 | 2085 | ||
| Mast Extended Height (With Backrest) | H4(mm) | 4070 | 4070 | ||
| Overhead Guard Height | H5(mm) | 2080 | 2080 | ||
| Turning Radius | Wa(mm) | 1615 | 1725 | 1515 | 1615 |
| Fork Overhang (Wheel Center to Fork Face) | X(mm) | 412 | 412 | ||
| Front Tread | B2(mm) | 922 | 922 | ||
| Rear Tread | B3(mm) | 175 | 175 | ||
| Ground Clearance | H6(mm) | 90 | 90 | ||
| Wheelbase | Y(mm) | 1420 | 1538 | 1320 | 1420 |
| Fork Spread (Min/Max) | mm | 200/1000 | 200/1000 | ||
| Working Aisle Width With Pallet (1000×1200,1200 Lengthways) | Ast(mm) | 3290 | 3410 | 3190 | 3290 |
| Working Aisle Width With Pallet (800×1200,800 Lengthways) | Ast(mm) | 3410 | 3530 | 3310 | 3410 |
| Travel Speed (Full Load) | km/h | 13 | 13 | ||
| Travel Speed (No Load) | km/h | 14 | 14 | ||
| Lifting Speed (Full Load) | mm/s | 270 | 250 | 300 | 290 |
| Lifting Speed (No Load) | mm/s | 430 | 400 | 450 | 440 |
| Max.Gradeability (Full Load) | % | 18 | 18 | ||
| Max.Gradeability (No Load) | % | 20 | 20 | ||
| Total Weight (Contains the battery) | kg | 3180 | 3345 | 2820 | 3100 |
| Tyre (Front x 2) | 18X7-8 | 200/50-10 | 18X7-8 | ||
| Tyre (Rear x 2) | 15X4.5-8 | 15X4.5-8 | |||
| Diver Motor | kw | 4X2 | 4X2 | ||
| Pump Motor | kw | 11 | 11 | ||
| Battery (Standard) | V/Ah | 48/500 | 48/625 | 48/500 | |
| Controller Type | AC | AC | |||
| Controller Manufacturer | ZAPI | ZAPI | |||
| Operating Pressure | Mpa | 14.5 | 14.5 | ||
