Summary
- Brand Name:XCMG
- Place of Origin:China
Details
- Product Name:G5C18629F5AAC4
- Display online time:2019-11-18
- weight:2000.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:3 Months
- Condition:NEW
- Moving Type:other

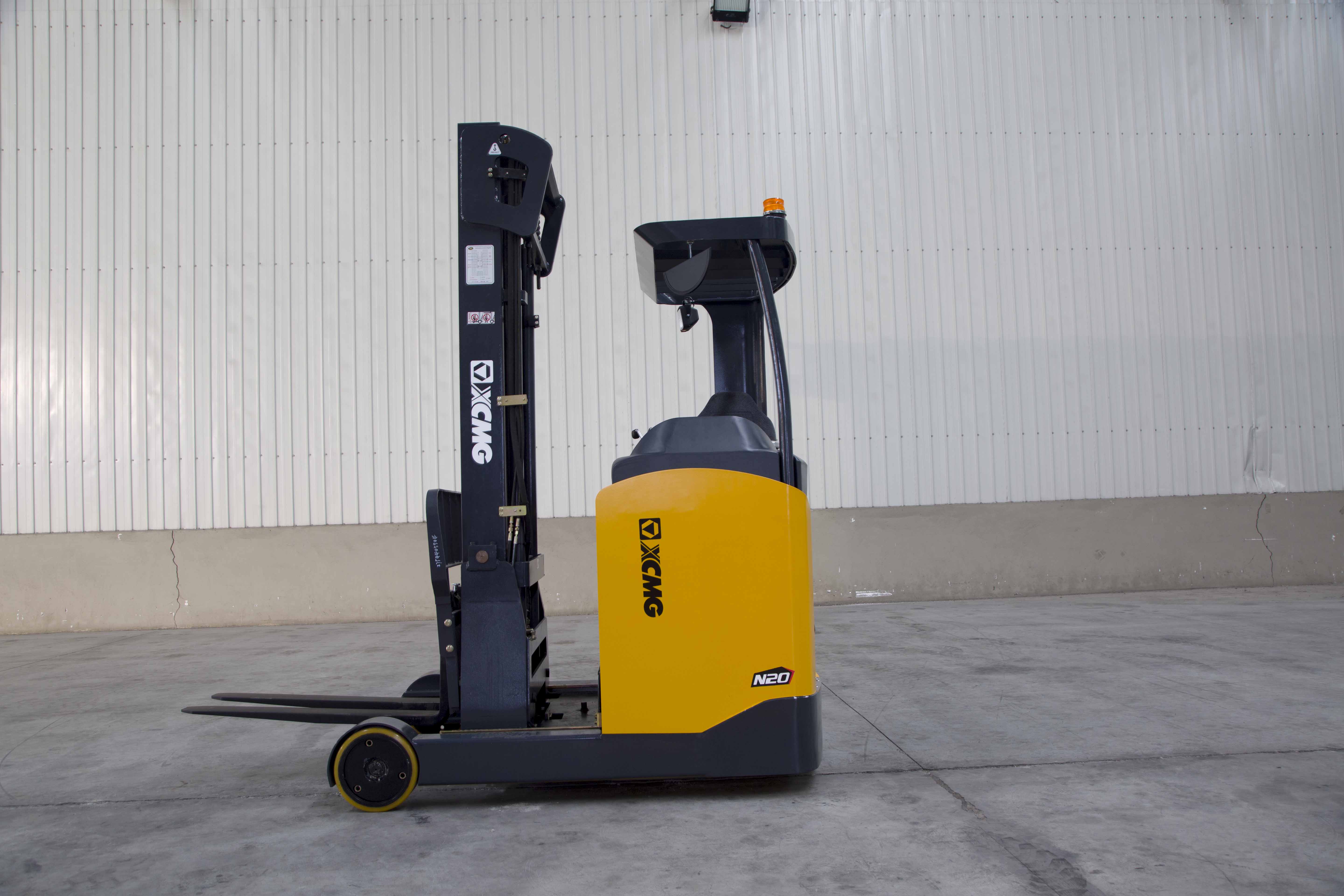

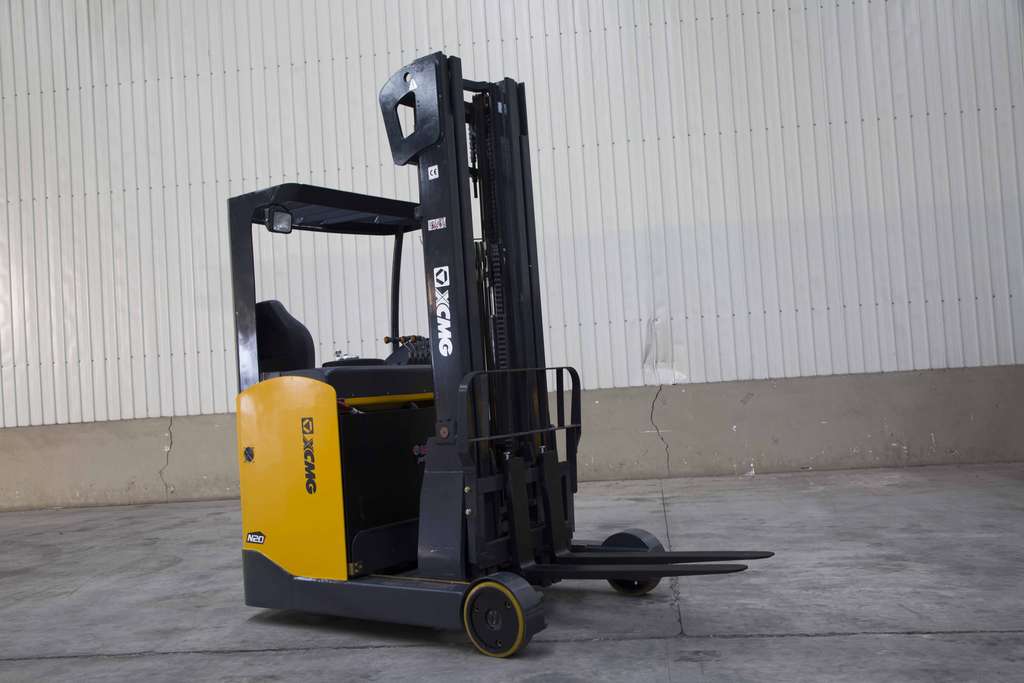

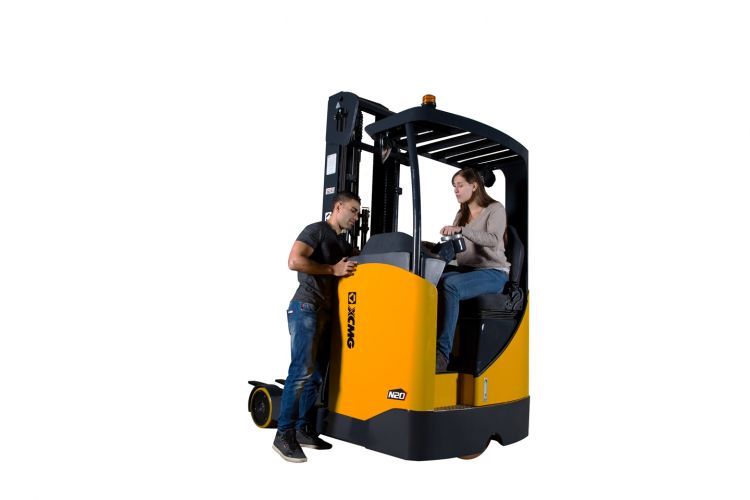

1.6-2.0T Sit down electric reach truck:
• Full AC System
• OPS System (Sit-in type)
• EPS Steering System
• Electromagnetic Braking system
• Lower Energy Consumption
• Easy-to-read operator display
• Assistance System to fit in your specific working condition
Ergonomic design and high performance supported by innovative technology help XCMG reach trucks become the perfect solution for various application. Whether use in operating in pallet, drive-through or drive-in racking.
Whether for narrow areas or low clearances.XCMG reach truck will always be your good assistant in stacking.
| Model | FBRS16-AZ1 | FBRS18-AZ1 | FBRS20-AZ1 | FBRS20H-AZ1 | |
| Power | Battery | ||||
| Operation | Sit-on | ||||
| Rated Load Capacity | Q (kg) | 1600 | 1800 | 2000 | 2000 |
| Load Centre | C (mm) | 500 | |||
| Lift Height | H3 (mm) | 3000 | 9000 | ||
| Free Lift | H2(mm) | 380 | 2845 | ||
| Fork Size (L×W×T) | mm | 920x120x35 | 1070x120x40 | ||
| F/B(α°/β°) | Deg | 3°/5° | |||
| Overall Length | L1 (mm) | 2565 | 2635 | 2735 | |
| Main Body Length | L2 (mm) | 1460 | 1530 | 1565 | |
| Width | B1 (mm) | 1270 | |||
| Mast Lowered Height | H1 (mm) | 2201 | 3880 | ||
| Mast Extended Height (With Backrest) | H4 (mm) | 4040 | 10030 | ||
| Overhead Guard Height | H5 (mm) | 2220 | |||
| Turning Radius | Wa (mm) | 1820 | 1920 | ||
| Ground Clearance | H6 (mm) | 78 | |||
| Reach Distance | X (mm) | 560 | 488 | 560 | |
| Wheelbase | Y (mm) | 1500 | 1600 | ||
| Front Tread | B2 (mm) | 1160 | |||
| Travel Speed (Full Load) | km/h | 9.5 | 9.2 | 8.5 | |
| Travel Speed (No Load) | km/h | 10 | 9 | ||
| Lifting Speed (Full Load) | mm/s | 230 | 220 | 210 | |
| Max gradeability (Full Load) | % | 12 | 10 | ||
| Total Weight (Contains the battery) | kg | 2900 | 3100 | 4400 | |
| Front×2 | 310x100 | ||||
| Rear×1 | 343x135 | ||||
| Diver Motor | kw | 6 | |||
| Pump Motor | kw | 11 | |||
| Battery (Standard) | V/Ah | 48/420 | 48/560 | 48/700 | |
| Steering System | Electronic steering | ||||
| Service Brake | Electronic braking | ||||
| Controller Type | AC | ||||
| Controller Manufacturer | ZAPI | ||||
Response Time : Within 24 hours
