- Summary
- Specifications
Summary
- Weight:10600kg
- Table Size:1830×760mm
- Rated Loading Capacity:230kg
- Power:38/(3000)kW/(r/min)
- Model Number:GTBZ18A1
- Brand Name:XCMG
- Place of Origin:China
- Certification:CE/ISO9001
- Max. Lifting Height:18.4m
- Overall Dimension(L*W*H):9080×2490×2680mm
Specifications
- Weight:10600.000kg
- Condition:New
- Moving Type:Wheel
- Max. Working Height:20.1m
- Max. Platform Height:18.4m
- Max. Working Range:11.9m
- Rotation Angle of Platform:360°
- Max. Travel Speed:6km/h
- Max. Tail Wagging:0mm
- Min. Turning Radius:6m
- Max. Grade Ability:0.45
- Min. Ground Clearance:230mm

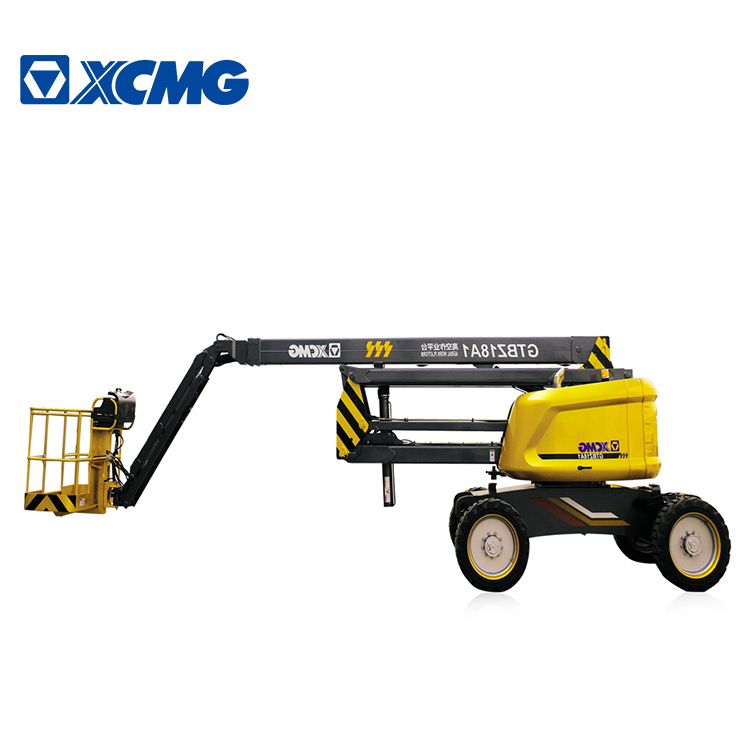

GTBZ18A1 Articulated Boom Type Aerial Work Platform
（1）Strong Road Adaptability
With four-wheel drive, off-road wide tires and new axle floating technology,the drive is superior, and the road adaptability is strong, with the maximum grade ability of 45%, reaching to the highest level in the industry
（2）Accurate and Efficient Operation
”Σ” type linkage folded hybrid boom design; the overall layout is compact and tail swing is small, which is easy to store and access to the narrow space to work; the extending of the body is flexible, without regional restrictions and with a wide operating range. It has upward, downward and crossed precise multidirectional positioning functions and excellent extending features.
（3）Compactness and flexibility
The complete machine is arranged compactly and crank boom recovery gesture is adopted during transportation with transportation length of only 7m; meanwhile, it adopts tailless wagging design, which is convenient for storage and entering into narrow space for operation.
Description |
Unit |
Parameter value |
|
Overall length |
mm |
9080 |
|
Overall width |
mm |
2490 |
|
Overall Height |
mm |
2680 |
|
Wheel Base |
mm |
2500 |
|
Maximum Working Height |
m |
20.1 |
|
Maximum Platform Height |
m |
18.4 |
|
Maximum Working Range |
m |
11.9 |
|
Maximum Load Capacity |
kg |
230 |
|
1stBoom luffing Range |
° |
0～+70
|
|
2ndBoom luffing Range |
° |
0～+75
|
|
Crank Arm Luffing Range |
° |
-65～+70
|
|
Rotation Angle of Rotating Platform |
° |
360 |
|
Maximum Tail Wagging |
mm |
0 |
|
Platform Size |
mm |
1830×760 |
|
Platform turning angle |
° |
180 |
|
Total Weight |
kg |
10600 |
|
Maximum Travel Speed |
km/h |
6.0 |
|
Minimum Turning Radius |
m |
6.0 |
|
Minimum Ground Clearance |
mm |
230 |
|
Maximum Grade Ability |
% |
45 |
|
Tire Specification |
315/55D625 |
||
Engine Model |
Perkins
|
||
Rated Power of Engine |
kW/(r/min) |
38/（3000） |
Response Time : Within 24 hours
XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
