XCMG Official 20m Articulated Boom Lift XGA20 Hydraulic Platform For Sale

Chat Now 1 / EA (Min. Order)
Model: XGA20
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG Official 20m Articulated Boom Lift XGA20 Hydraulic Platform For Sale

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

  • Weight:10600kg
  • Overall Dimension:9080*2490*2680mm
  • Table Size:1830*760*1150mm
  • Max Lifting Height:20.4m
  • Rated Loading Capacity:230kg
  • Power:38KW
  • Lift Drive / Actuation:Hydraulic
  • Lift Mechanism:Articulated Lift
  • Model Number:XGA20
  • Brand Name:XCMG
  • Place of Origin:Xuzhou, Jiangsu, China
  • Certification:CE/ISO9001

Specifications

  • Weight:10600.000kg
  • Condition:New
  • Moving Type:Other
XCMG Official 20m Articulated Boom Lift XGA20 Hydraulic Platform For Sale

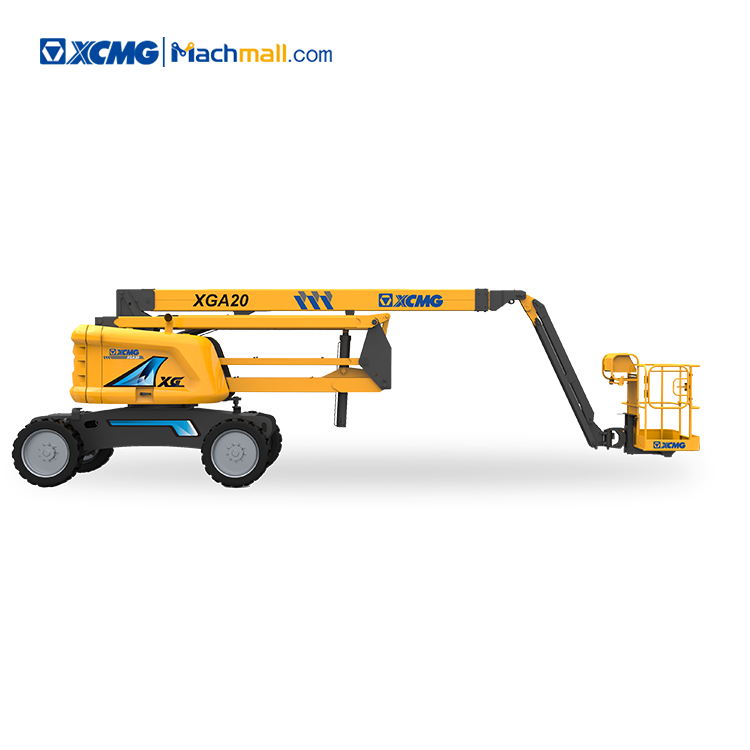

XCMG official 20m articulated boom lift XGA20
20m articulated mobile elevating work platform features compact composition, obstacle-crossing, precise control, powerful driving and easy operation. The machine is simple, efficient, safe and reliable, meeting demands of users from building construction, bridge and equipment maintenance, shipyard and petrochemical industry and users from rental service.

Advantages and highlights:
* Upwards, downwards and crossed multi-directional precise position and excellent extension
* The electrical system makes use of the distributed PLC-control technologies and the proportional valve being of self-adaptation method, leading the products in the terms of adaptability.
* Full-hydraulic drive, turntable free slewing by 360°, limitless angle in full work range, easy operation, reliable.
* 4WD drive, off-road wide tires and axle-balancing device enable the machine to be excellently suitable for any terrain, with gradeability up to 45% ranking the top in industry.
* The complete vehicle is compact. Before transportation, the crank is retracted back, shortening the transportation length to only 7m.
* Zero tail swing design could facilitate the entering of narrow room and the storage.
Item
Unit
Parameter
Overall length of complete machine
mm
9080
Overall width of complete machine
mm
2490
Overall height
mm
2680
Wheelbase
mm
2500
Max. working height
m
20.4
Max. platform height
m
18.4
Max. working range
m
11.9
Max. carrying weight
kg
230
Scope of luffing of No.1 arm
°
0~+70
Scope of luffing of Boom No.2
°
0~+75
Crank arm luffing range
°
-65~70
Slewing angle of turntable
°
360
Max. Tail swing
mm
0
Dimension of platform
mm
1830×760×1150
Slewing angle of platform
°
160
Overall weight
kg
10600
Max. traveling speed
km/h
6
Min. turning radius
m
6
Min. ground clearance
mm
230
Max. gradeability
%
45
Specification of tire

355/55D625
Engine model

Perkins 404D-22
Engine rated power
kW/(r/min)
38/(3000)
