- Brand Name:XCMG
- Place of Origin:China
Details
- Product Name:G5C184E224A611
- Display online time:2020-04-20
- weight:3500.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:3 Months
- Condition:NEW
- Moving Type:other

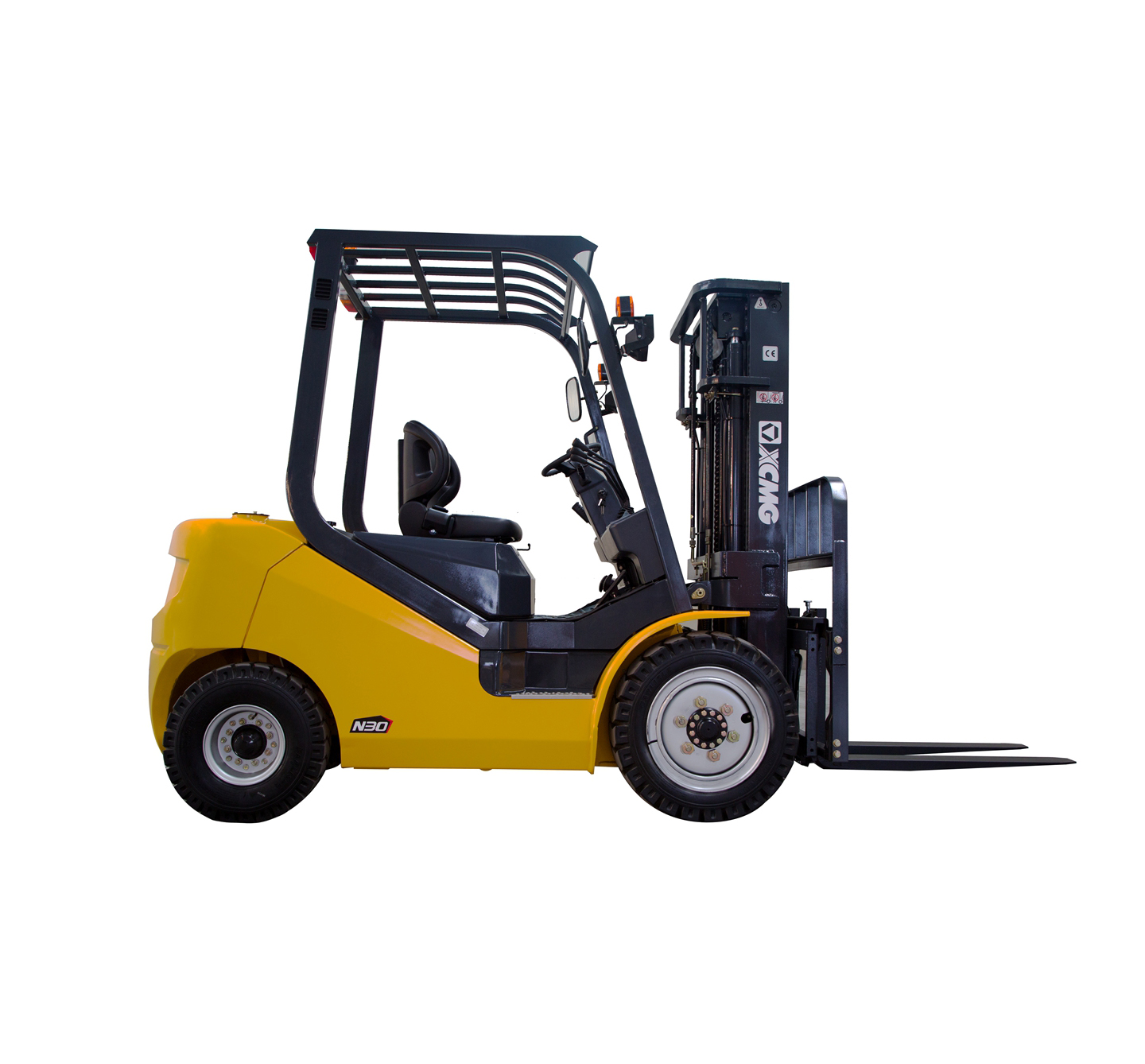

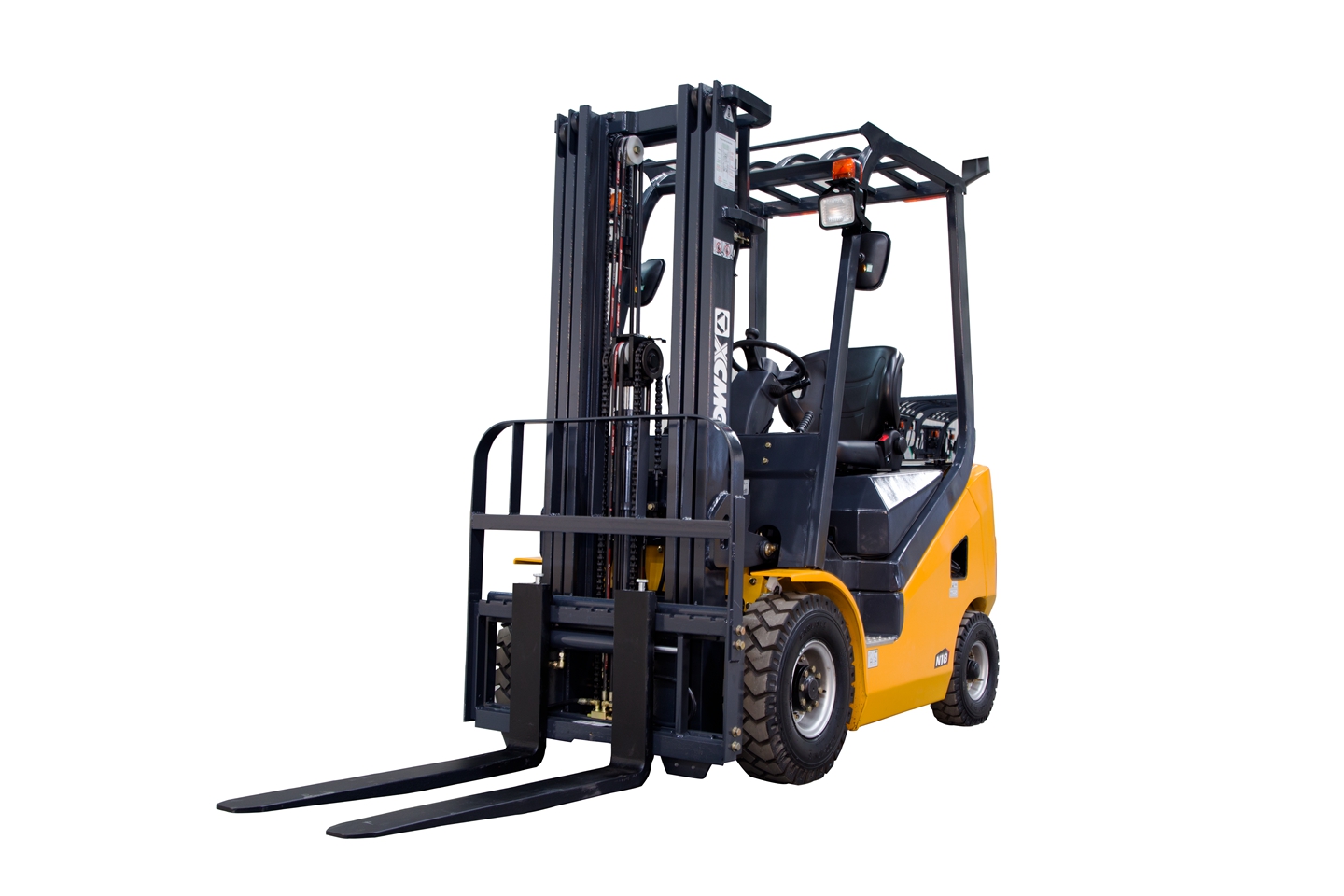

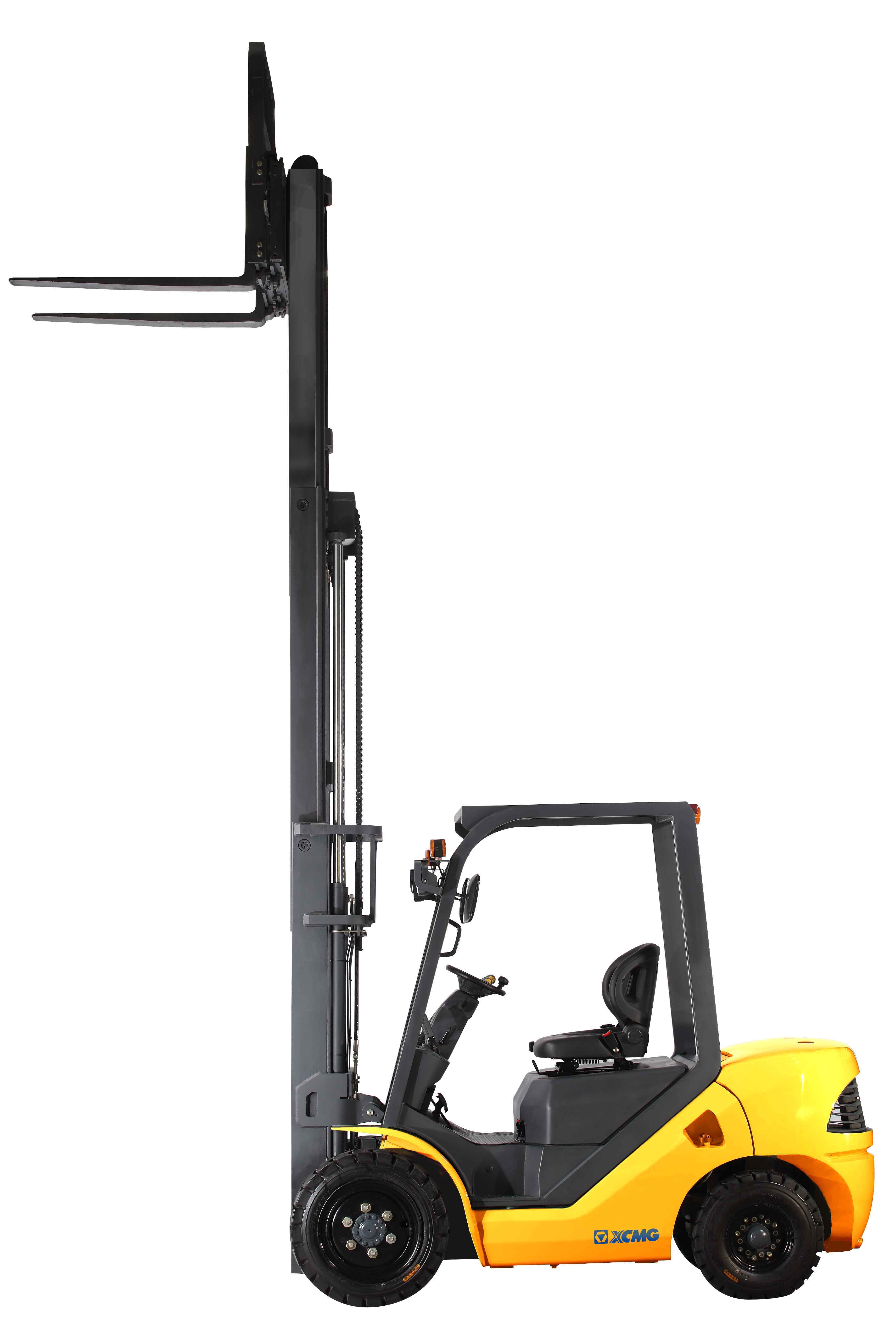

| 3T diesel forklift | ||||||||
| Model | FD30T-E | FD30T-A | FD30T-F | FD30T-JB | FD30T-JE | FD30T-JM | FD30T-JD | |
| Power Type | Diesel | |||||||
| Rated Load Capacity | Q(kg) | 3000 | ||||||
| Load Centre | C(mm) | 500 | ||||||
| Rated Lift Height | H3(mm) | 3000 | ||||||
| Free Lift Height | H2(mm) | 100 | ||||||
| Fork Size (L×W×T) | mm | 1070×125×45 | ||||||
| Mast Tilt Angle (F/R, α°/β°) | deg | 6°/12° | ||||||
| Fork Overhang (Wheel Center to Fork Face) | X1(mm) | 484 | ||||||
| Rear Overhang | X2(mm) | 595 | ||||||
| Ground Clearance (Bottom of Mast) | H7(mm) | 145 | ||||||
| Length to Face of Fork (Without Fork) | L1(mm) | 2773 | ||||||
| Overall Width | B1(mm) | 1225 | ||||||
| Overhead Guard Height | H5(mm) | 2235 | ||||||
| Turning Radius (Outside) | Wa(mm) | 2450 | ||||||
| Travel Speed (No Load) | km/h | 19 | ||||||
| Lifting Speed (Full Load) | mm/sec | 430 | 430 | 430 | 410 | 410 | 410 | 410 |
| Lowering Speed (Full Load) | mm/sec | 450 | ||||||
| Max.Gradeability (Full Load) | % | 20 | ||||||
| Tyre (Front x 2) | mm | 28×9-15-12PR | ||||||
| Tyre (Rear x 2) | mm | 6.50-10-10PR | ||||||
| Total Weight | kg | 4340 | 4340 | 4340 | 4340 | 4340 | 4340 | 4340 |
| Battery | V/Ah | 12/90 | ||||||
| Engine Model | A498BT1 -35 | C490BPG -237 | C490BPG -37 (EuⅢ) | C240PKJ30 (EuⅢ) | 4TNE98 | Mitsubishi S4S(EuⅢ) | 4TNE94 (EuⅢ) |
|
| Engine Manufacturer | XINCHAI | XINCHAI | XINCHAI | ISUZU | YANMAR | Mitsubishi | YANMAR | |
| 3.5T diesel forklift | ||||||||
| Model | FD35T-E | FD35T-A | FD35T-F | FD35T-JB | FD35T-JE | FD35T-JM | FD35T-JD | |
| Power Type | Diesel | |||||||
| Rated Load Capacity | Q(kg) | 3500 | ||||||
| Load Centre | C(mm) | 500 | ||||||
| Rated Lift Height | H3(mm) | 3000 | ||||||
| Free Lift Height | H2(mm) | 100 | ||||||
| Fork Size (L×W×T) | mm | 1070×125×50 | ||||||
| Mast Tilt Angle (F/R, α°/β°) | deg | 6°/12° | ||||||
| Fork Overhang (Wheel Center to Fork Face) | X1(mm) | 484 | ||||||
| Rear Overhang | X2(mm) | 635 | ||||||
| Ground Clearance (Bottom of Mast) | H7(mm) | 145 | ||||||
| Length to Face of Fork (Without Fork) | L1(mm) | 2813 | ||||||
| Overall Width | B1(mm) | 1225 | ||||||
| Mast Lowered Height | H1(mm) | 2070 | ||||||
| Mast Extended Height (With Backrest) | H4(mm) | 4070 | ||||||
| Overhead Guard Height | H5(mm) | 2235 | ||||||
| Tyre (Front x 2) | mm | 28×9-15-12PR | ||||||
| Tyre (Rear x 2) | mm | 6.50-10-10PR | ||||||
| Total Weight | kg | 4840 | ||||||
| Battery | V/Ah | 12/90 | ||||||
| Engine Model | A498BT1 -35 | C490BPG -237 | C490BPG -37 (EuⅢ) | C240PKJ30 (EuⅢ) | 4TNE98 | Mitsubishi S4S(EuⅢ) | 4TNE94 (EuⅢ) |
|
| Engine Manufacturer | XINCHAI | XINCHAI | XINCHAI | ISUZU | YANMAR | Mitsubishi | YANMAR | |
