XCMG Official 5.5ton Wheel Loader XC958E (Euro Stage V) for sale
Summary
- Rated Load:5500kg
- Dimension(Long* Breadth * High):8600*3000*3505mm
- Type:Wheel
- Place of Origin:China
- Model Number:XC958E
- Brand Name:XCMG
- Certification:CE/ISO9001
Specifications
- Weight:19600.000kg
- Condition:New
- Moving Type:Wheel
- Engine Brand:SHANGCHAI
- Rated Load:1-2 ton
- Bucket Capacity:0.5 - 2m³
- Rated power:168kw
- Operating mass:19600kg
- Rated bucket capacity :3.1m³
- Rated operating load:5500kg
- Dumping height:3100mm

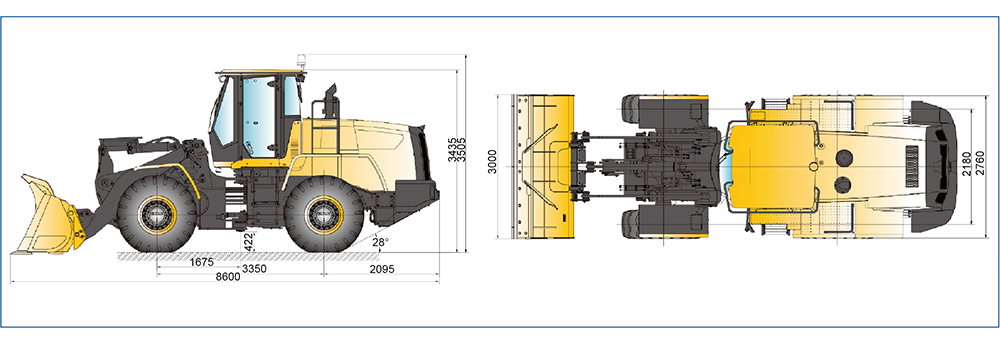

- Overall machine dimensions (L×W×H):8600*3000*3505mm
- Dumping reach:1100mm
- Wheelbase:3350mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XC958E wheel loader is a new generation of loader. XCMG makes full use of Group's international R&D platform to integrate global technology research and development resources to create international advanced and completely independent intellectual property rights. This model is powerful, rugged, energy efficient, safe and comfortable, and easy maintenance and is the optimal choice for ports, mines, coals, and engineering construction and so on.
XC958E is equipped with Euro V emission engine, ZF 5WG210 automatic transmission, ZF wet drive axle, electro-hydraulic load sensing hydraulic system. The whole machine has significant advantages in terms of reliability, energy saving, high efficiency and comfort, and has reached the international advanced level.
Technical Characteristics:
Traction can reach 165kN, maximum breakout force can reach 175KN, total cycle time < 10s, strong and efficient.
The bucket can be equipped with a 2.5〜5.0 m 3 bucket depending on the material and working conditions. It can also be equipped with a quick changer to quickly switch between different buckets and tools to meet the various needs of customers.
.jpg)
.jpg)
|
Item |
Unit |
Parameters |
|
|
Rated operating load |
kg |
5500 |
|
|
Rated bucket capacity |
m³ |
3.1 |
|
|
Operating mass |
kg |
19600 |
|
|
Dumping height |
mm |
3100 |
|
|
Dumping reach |
mm |
1100 |
|
|
Wheelbase |
mm |
3350 |
|
|
Tread |
mm |
2760 |
|
|
Overall machine dimension L*W*H |
mm |
8600*3000*3505 |
|
|
Bucket width |
mm |
3000 |
|
|
Maximum breakout force |
KN |
175 |
|
|
Maximum traction force |
KN |
165 |
|
|
Hydraulic cycle time-raise |
s |
≤5.5 |
|
|
Hydraulic cycle time-bucket |
s |
≤2.0 |
|
|
Hydraulic cycle time-Down |
s |
≤3.5 |
|
|
Min.turning radius over tyres |
mm |
5695 |
|
|
Gradeability |
° |
28 |
|
|
Tyre size |
|
23.5-25 |
|
|
Engine model |
|
B6.7 |
|
|
Engine rated power |
kw |
168 |
|
|
Traveling speed |
Forward gear I/II/III/IV |
km/h |
7/12/18/28/40 |
|
Reverse gear I/II/III |
km/h |
7/12/18 |
|
|
Oil tank capacities |
Fule tank |
L |
300 |
|
Hydraulic tank |
L |
200 |
|
|
Hydraulic pressure |
Working system |
Mpa |
25 |
|
Steer system |
Mpa |
19.5 |
|
|
Braking distance at 32 km/h |
m |
<12.5 |
|
