XCMG Official GR1603 Motor Grader for sale

  • XCMG Official GR1603 Motor Grader for sale

Share:
XCMG Official GR1603 Motor Grader for sale
FOB for Road Mach Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping
Payment Terms:
XCMG Official GR1603 Motor Grader for sale
  • Summary
  • Details
Summary
  • Dimension(L*W*H):8420 x 2380 x 3150mm
  • Weight:12500kg
  • Model Number:GR1603
  • Brand Name:XCMG
  • Place of Origin:China
  • Reverse Speed(km/h):5、13、30km/h
  • Forward Speed(km/h):5、8、13、20、30、42km/h
  • Certification:Can provide relevant certification
Details
  • Product Name:G5E5DEFF31EEF7
  • Display online time:2020-03-03
  • weight:13000.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:wheel
  • Engine model:QSB5.9
  • Rated power/speed:125kW/2200rpm
  • Tire specification:13.00-24TG RP12
  • Ground clearance (front axle):654mm
  • Space of front and rear axles:5780mm
  • Tractive effort f=0.75:≥66kN
  • Working system pressure:19MPa
  • Maximum steering angle of front wheel:±48°
  • Minimum turning radius:6.9m
  • Maximum lift height:410mm
  • Maximum cutting depth:515mm


XCMG Official GR1603 Motor Grader for saleXCMG Official GR1603 Motor Grader for sale


XCMG Official GR1603 Motor Grader for sale

Item

Unit

GR1603

Basic parameters

Engine model

QSB5.9

Rated power/speed

kW/rpm

125/2200

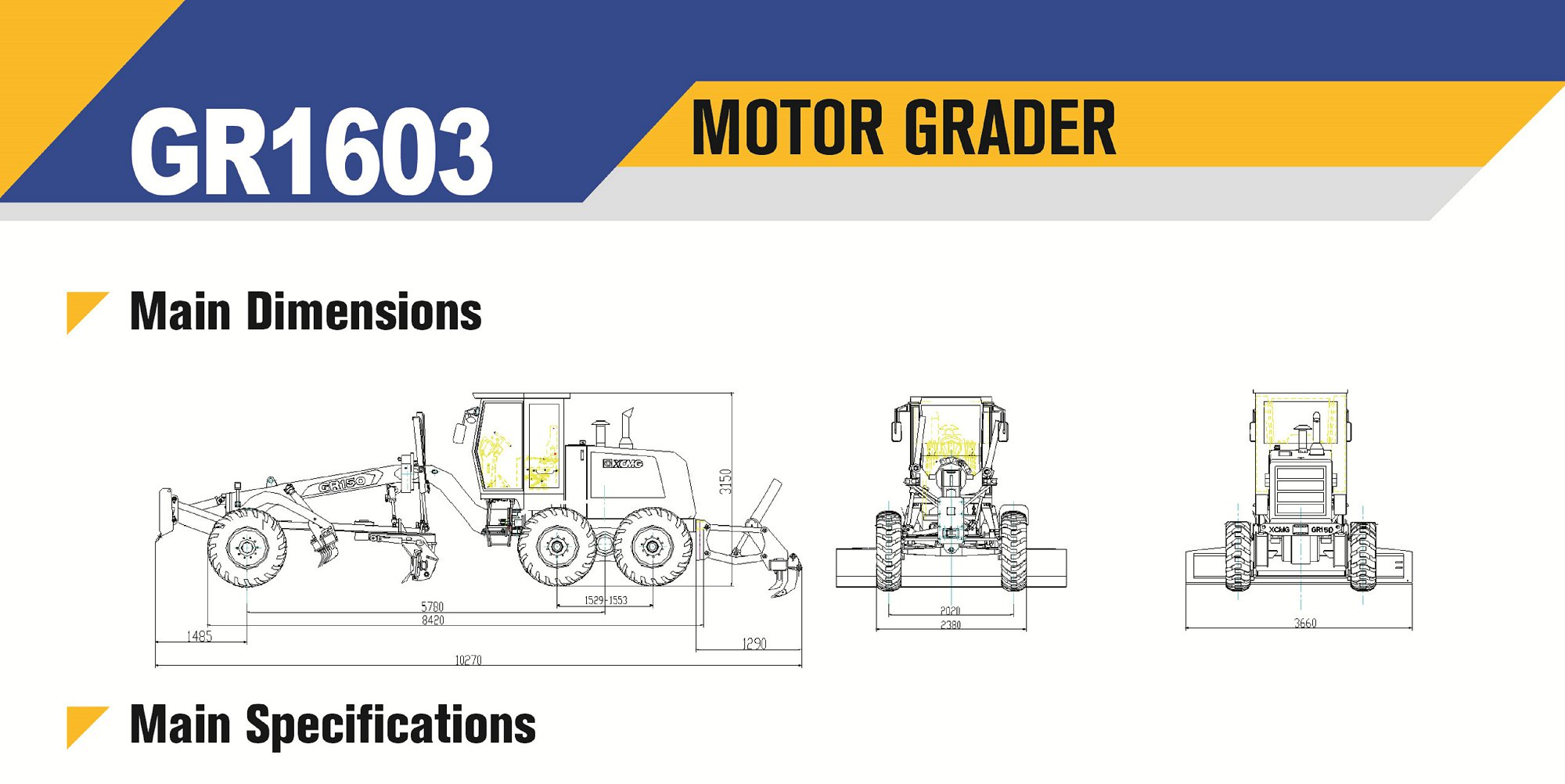

Overall dimension(standard)

mm

8420 x 2380 x 3150

Total weight(standard)

kg

12500

Tire specification

13.00-24TG RP12

Ground clearance

mm

654

Tread

mm

2020

Space of front and rear axles

mm

5780

Space of middle and rear wheels

mm

1529-1553

Performance parameters

Forward velocity

km/h

5813203042

Reverse speed

km/h

51330

Tractive effort f=0.75

kN

66

Maximum gradeadbility

%

25

Inflation pressure of tires

kPa

260

Working system pressure

MPa

19

Transmission pressure

MPa

1.3-1.8

Working parameters

Maximum steering angle of front wheels

°

±48

Maximum inclination angle of front wheels

°

±17

Maximum swing angle of front axle

°

±16

Maximum swing angle of balance box

°

front 15, rear 15

Maximum steering angle of frame

°

±27

Maximum turning radius

m

6.9

Blade

Maximum lifting height

mm

410

Maximum shoveling depth

mm

515

Maximum lateral inclination angle

°

90

Cutting angle

°

28-70

Oil filling amount

Slewing angle

°

360

Length x chord height

mm

3660 x 610

Coolant

L

50

Fuel tank

L

280

Engine

L

18

Transmission

L

26

Balance box

L

46

Drive axle

L

28

Hydraulic oil

L

96

XCMG Official GR1603 Motor Grader for saleXCMG Official GR1603 Motor Grader for saleXCMG Official GR1603 Motor Grader for sale
