- Summary
- Details

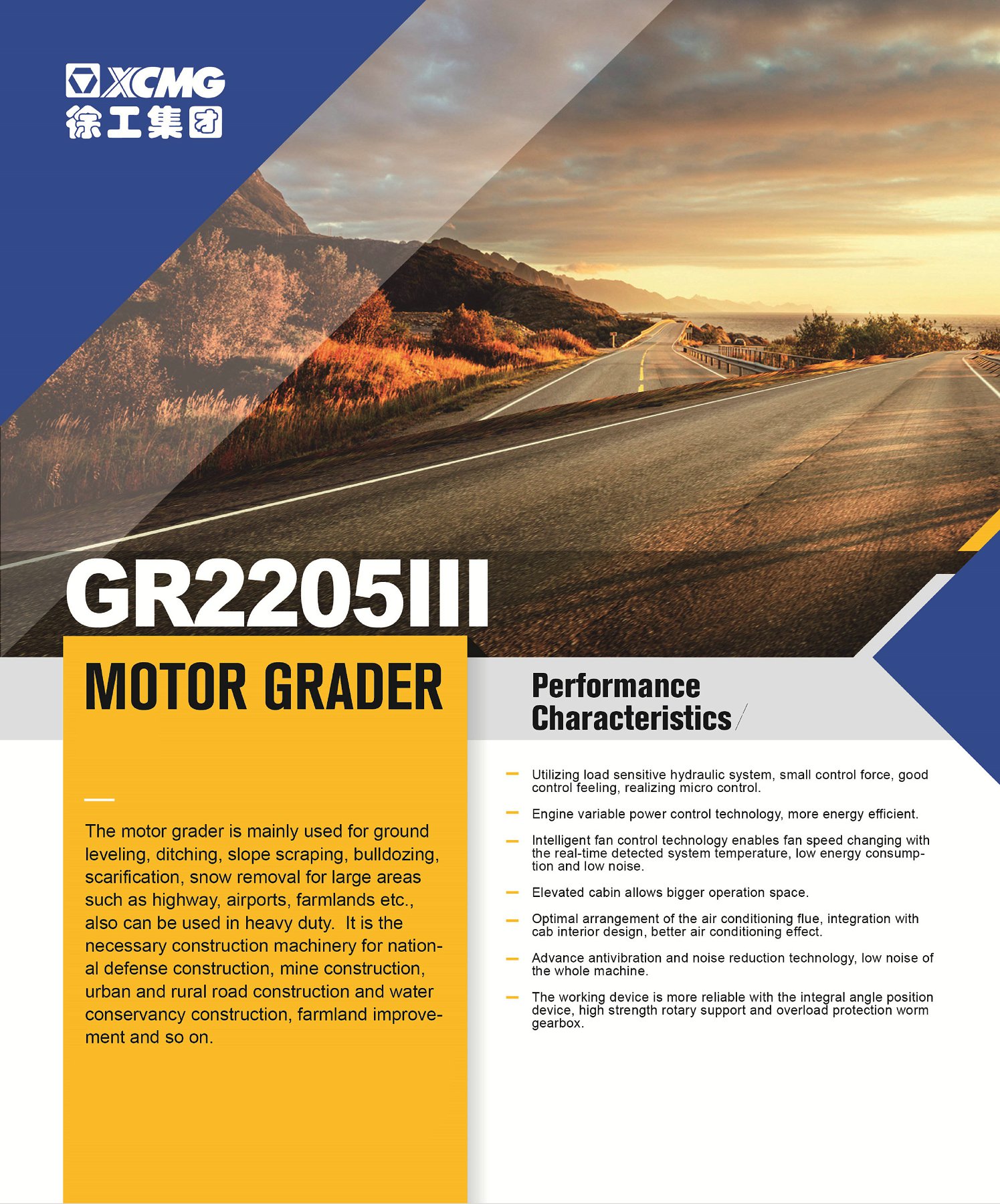

- Product Brochure
- Dimension(L*W*H):9300 x 2625 x 3470mm
- Weight:16500kg
- Model Number:GR2205III
- Brand Name:XCMG
- Place of Origin:China
- Reverse Speed(km/h):5、12、25km/h
- Forward Speed(km/h):5、9、12、20、25、45km/h
- Certification:Can provide relevant certification
- Product Name:G5E5E0E9C86A4C
- Display online time:2020-04-27
- weight:16500.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:wheel
- Engine model:QSB6.7
- Rated power/speed:164kW/2200rpm
- Tire specification:17.5-25
- Ground clearance:586mm
- Space of front and rear axles :6447mm
- Tractive effort f=0.75:≥85N
- Working system pressure:22MPa
- Maximum steering angle of front wheel:±48°
- Minimum turning radius:7.3m
- Maximum lift height:480mm
- Maximum shoveling depth:715mm
|
Item |
Unit |
GR2205III |
||
|
Basic parameters |
Engine model |
QSB6.7 |
||
|
Rated power/speed |
kW/rpm |
164/2200 |
||
|

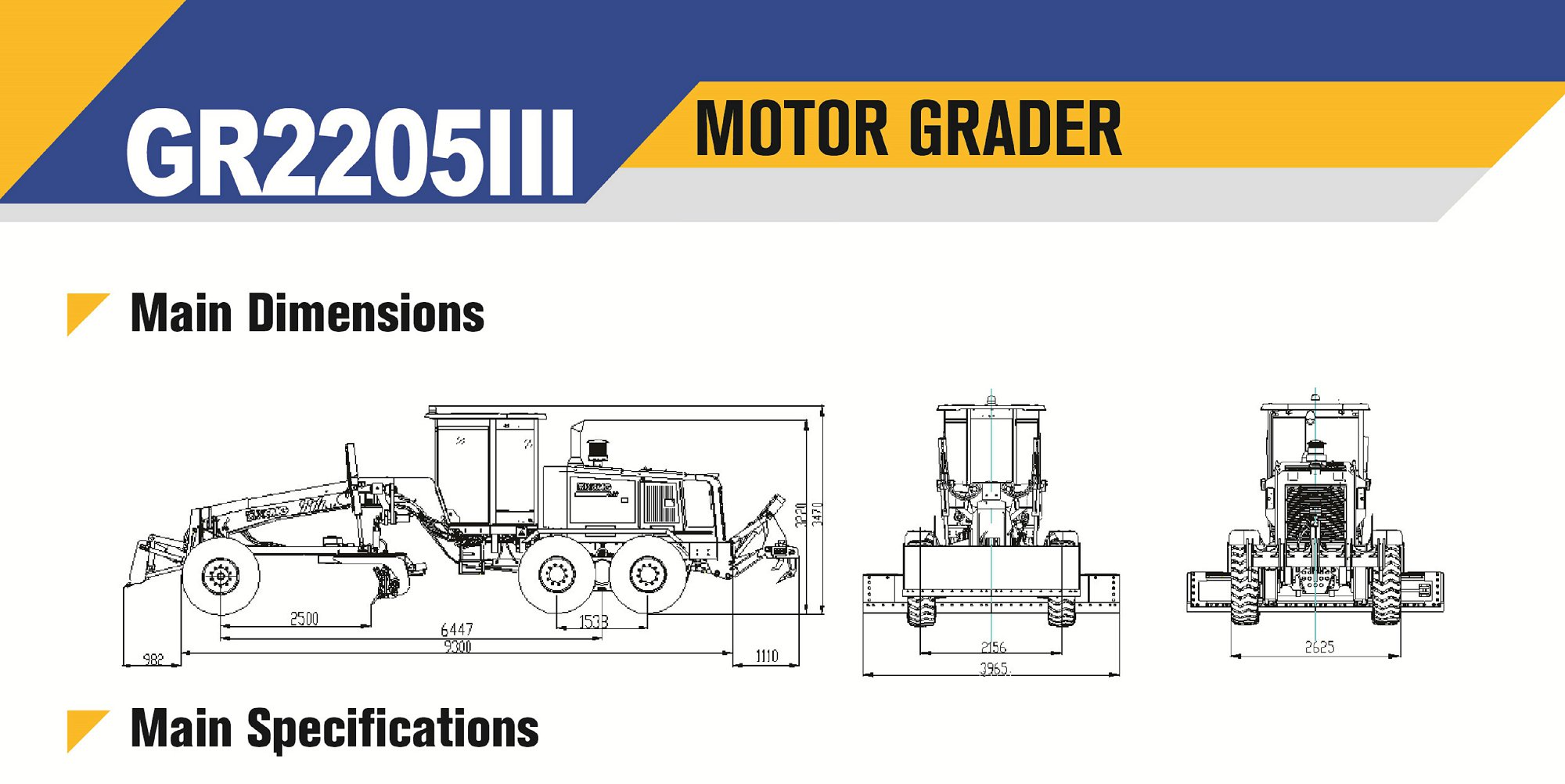

Overall dimension(standard) |
mm |
9300 x 2625 x 3470 |
||
|
Total weight(standard) |
kg |
16500 |
||
|
Tire specification |
17.5-25 |
|||
|
Ground clearance |
mm |
586 |
||
|
Tread |
mm |
2156 |
||
|
Space of front and rear axles |
mm |
6447 |
||
|
Space of middle and rear wheels |
mm |
1538 |
||
|
Performance parameters |
Forward velocity |
km/h |
5、9、12、20、25、45 |
|
|
Reverse speed |
km/h |
5、12、25 |
||
|
Tractive effort f=0.75 |
kN |
≥85 |
||
|
Maximum gradeadbility |
% |
≥25 |
||
|
Inflation pressure of tires |
kPa |
260 |
||
|
Working system pressure |
MPa |
22 |
||
|
Transmission pressure |
MPa |
1.6-1.8 |
||
|
Working parameters |
Maximum steering angle of front wheels |
° |
±48 |
|
|
Maximum inclination angle of front wheels |
° |
±17 |
||
|
Maximum swing angle of front axle |
° |
±15 |
||
|
Maximum swing angle of balance box |
° |
front 15, rear 15 |
||
|
Maximum steering angle of frame |
° |
±25 |
||
|
Maximum turning radius |
m |
7.3 |
||
|
Blade |
Maximum lifting height |
mm |
480 |
|
|
Maximum shoveling depth |
mm |
715 |
||
|
Maximum lateral inclination angle |
° |
90 |
||
|
Cutting angle |
° |
29-69 |
||
|
Oil filling amount |
Slewing angle |
° |
360 |
|
|
Length x chord height |
mm |
3965 x 610 |
||
|
Coolant |
L |
50 |
||
|
Fuel tank |
L |
270 |
||
|
Engine |
L |
24 |
||
|
Transmission |
L |
38 |
||
|
Balance box |
L |
60 |
||
|
Drive axle |
L |
36 |
||
|
Hydraulic oil |
L |
190 |
||
