Engineering & Construction Machinery
> Earth-Moving Machinery
> Wheel Loader
> XCMG
> XCMG Official LW180KV Wheel Loader fo...
.jpg_l.jpg "XCMG Official LW180KV Wheel Loader for sale")
.jpg_t.jpg)
.jpg_t.jpg)
.jpg_t.jpg)
.jpg_t.jpg)
.jpg_t.jpg)
- Summary
- Details
Summary
- Rated Load:1800
- Type:Front Loader
- Place of Origin:China
- Model Number:LW300KN
- Brand Name:XCMG
- Certification:CE/ISO9001
- Dimension(Long*Breadth*High):6030×2060×2950mm
Details
- Product Name:G5CDBDCDE31128
- Display online time:2019-11-07
- weight:10600.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:wheel
- Rated operating load:1800kg
- Bucket capacity:0.9～1.1m³
- Machine weight:6200kg
- Wheel base:2300mm
- Max.breakout force:55kN
- Rated Power:58.8kW
- Rated Speed:58.5rpm

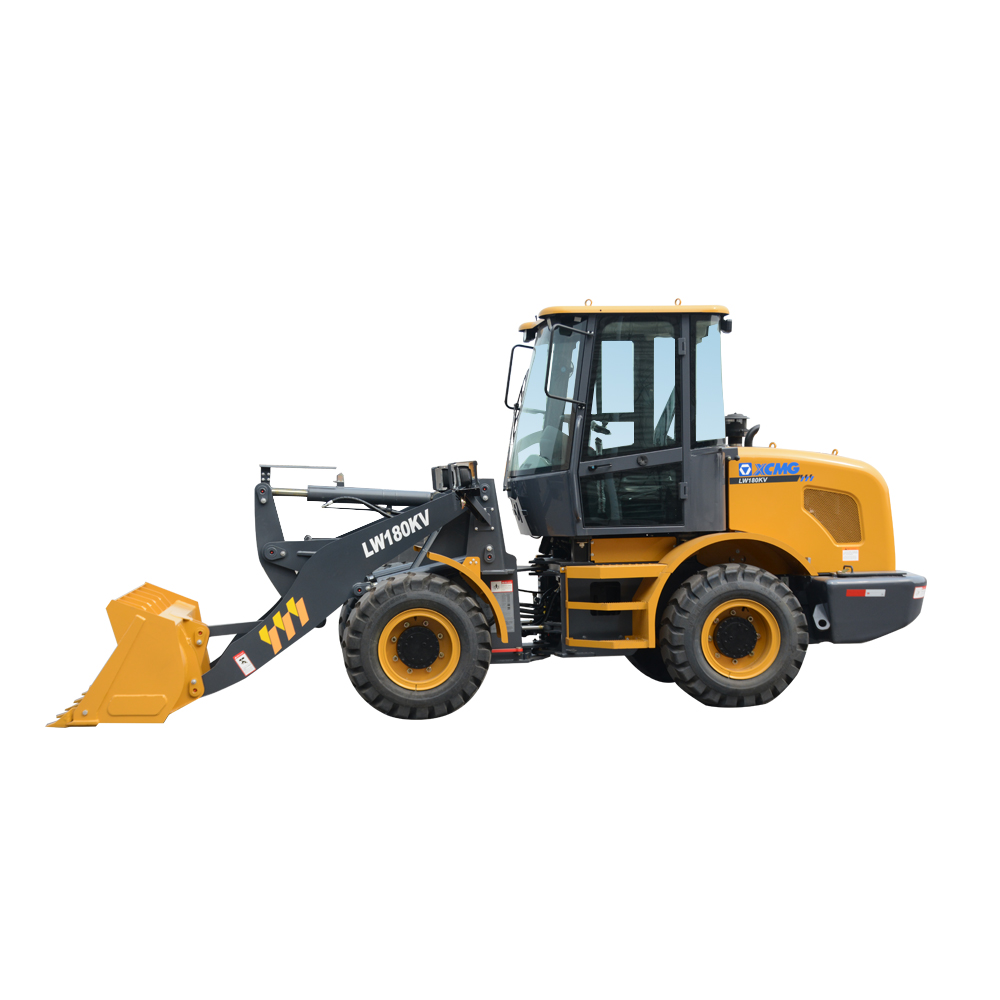

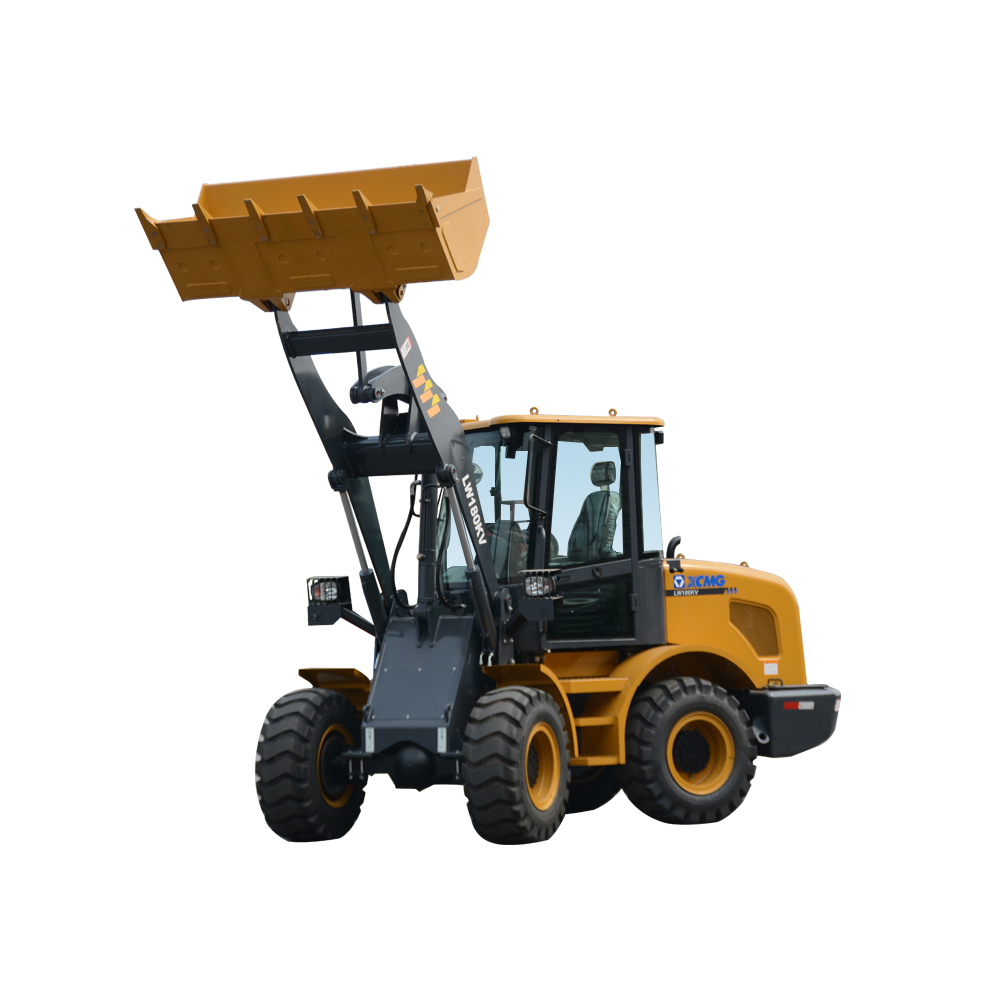

LW180KV Wheel Loader
1、High energy-conservation, efficiency, reliability, and comfort.
.jpg)
.jpg)
Description
Unit
Parameter value
Rated operating
load
kg
3000
Bucket capacity
m³
0.9～1.1
Machine weight
kg
10900±200
Dump clearance at
maximum lift
mm
2770～3260
Reach at maximum
lift
mm
1010～1210
Wheel base
mm
2900
Tread
mm
1850
Height of hinge
at maximum lift height
mm
3830
Working
height(fully lifted)
mm
4870
Max.breakout
force
kN
130
Max.horse power
kN
95
Hydraulic cycle
time-raise
s
5.4
Total hydraulic
cycle time
s
9.3
Min. turning
radius over tyres
mm
5170
Articulation
angle
°
38±1
Gradeability
°
28
Tyre size
17.5-25-12PR
Overall machine
dimension L×W×H
mm
7245×2482×3320
Model
WP6G125E201
Emission
standards
Emission 2
Rated Power/Speed
kW/rpm
92/2000
Fuel Tank
L
170
Hydraulic Tank
L
175
Travel Speed
Ⅰ-gear(F/R)
km/h
12/16
Ⅱ-gear(F/R)
km/h
38/-
Description |
Unit |
Parameter value |
||
Rated operating load |
kg |
3000 |
||
Bucket capacity |
m³ |
0.9～1.1 |
||
Machine weight |
kg |
10900±200 |
||
Dump clearance at maximum lift |
mm |
2770～3260 |
||
Reach at maximum lift |
mm |
1010～1210 |
||
Wheel base |
mm |
2900 |
||
Tread |
mm |
1850 |
||
Height of hinge at maximum lift height |
mm |
3830 |
||
Working height(fully lifted) |
mm |
4870 |
||
Max.breakout force |
kN |
130 |
||
Max.horse power |
kN |
95 |
||
Hydraulic cycle time-raise |
s |
5.4 |
||
Total hydraulic cycle time |
s |
9.3 |
||
Min. turning radius over tyres |
mm |
5170 |
||
Articulation angle |
° |
38±1 |
||
Gradeability |
° |
28 |
||
Tyre size |
17.5-25-12PR |
|||
Overall machine dimension L×W×H |
mm |
7245×2482×3320 |
||
Model |
WP6G125E201 |
|||
Emission standards |
Emission 2 |
|||
Rated Power/Speed |
kW/rpm |
92/2000 |
||
Fuel Tank |
L |
170 |
||
Hydraulic Tank |
L |
175 |
||
Travel Speed
|
Ⅰ-gear(F/R) |
km/h |
12/16 |
|
Ⅱ-gear(F/R)
|
km/h |
38/- |
||
Response Time : Within 24 hours
