Summary
- Weight:3380kg
- Table Size:2636×1120mm
- Rated Loading Capacity:230kg
- Power:4×12(300)V/(Ah)
- Model Number:GTJZ1412
- Brand Name:XCMG
- Place of Origin:China
- Certification:CE/ISO9001
- Max. Lifting Height:13.7m
- Overall Dimension(L*W*H):2850×1250×2600mm
Specifications
- Weight:3380.000kg
- Condition:New
- Moving Type:Wheel
- Max. Working Height:15.7m
- Max. Platform Height:13.7m
- Platform Extension Length:900mm
- Travel Speed(High Speed):3.2km/h
- Travel Speed(low Speed):0.8km/h
- Max.Travel Platform Height:13.7m
- Min. Turning Radius:0m
- Max. Grade Ability:0.25
- Warning Angle of Inclination both sides/front or rear:1.5°/3°

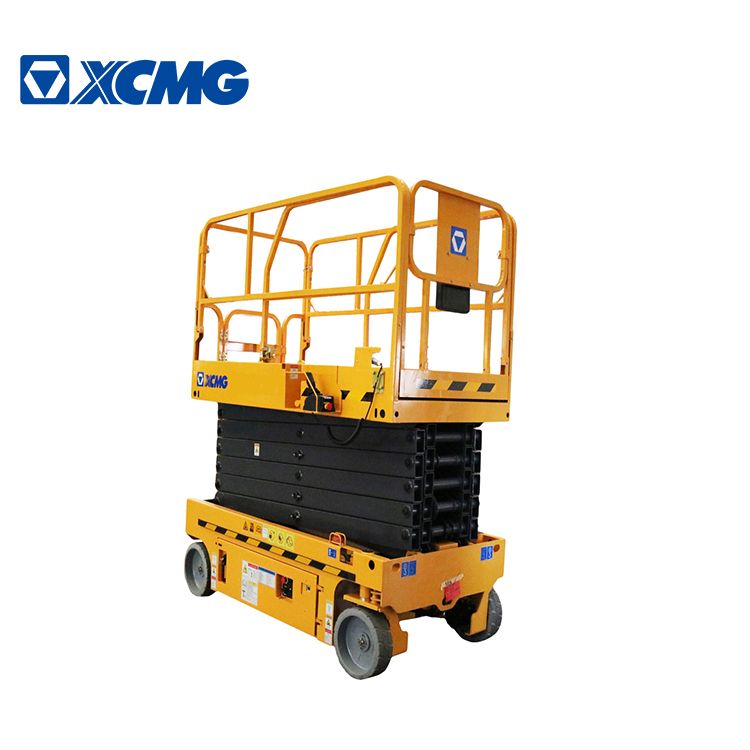

14 m Scissor Lift GTJZ1412 :
1、Convenient transportation and stable operation
The telescoping sub-platform achieves large working space and works with folding platform to realize easier transportation and translocation.The industry-leading automatic pit protection system and the widened wheel tread design enable your free operations even on rough ground.
2、Environmental construction and convenient service
Pure electric drive, zero release,low noise and more environmental construction. Overall swing-type tray is convenient for service and maintenance.
3、General and modular design
The modular design for the machine guarantees the universality of parts,makes the customers’ repairs and maintenances easier, and achieves more competitive cost.
| Description | Parameter value |
| Overall Length(mm) | 2850 |
| Overall Width(mm) | 1250 |
| Overall Height(Guardrail folding)(mm) | 2600(2036) |
| Wheel Base(mm) | 2240 |
| Maximum Working Heigh(m) | 15.7 |
| Maximum Platform Height(m) | 13.7 |
| Maximum Load Capacity（kg） | 230 |
| Extension Platform Load（kg） | 115 |
| Platform Size(mm) | 2636*1120 |
| Platform Extension Length(mm) | 900 |
| Lifting Speed of Working Platform(s) | 68 |
| Falling Speed of Working Platform(s) | 62 |
| Total Weight(kd) | 3380 |
| Travel Speed(High Speed)(km/h) | 3.2 |
| Travel Speed(low Speed)(km/h) | 0.8 |
| Max.Travel Platform Height(m) | 13.7 |
| Minimum Turning Radius(m) | 0 |
| Minimum Ground Clearance(mm) | 100/20 |
| Maximum Grade Ability(%) | 25 |
| Tire Specification | 381*127 |
| Battery（V/（Ah）） | 4*12(300) |
| Charger（A） | 30 |
| Warning Angle of Inclination （°） | 1.5 |
| 3 |
