XCMG Official TY230 Bulldozers for sale

  • XCMG Official TY230 Bulldozers for sale

Share:
XCMG Official TY230 Bulldozers for sale
FOB for OEM Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Shipping
Payment Terms:
XCMG Official TY230 Bulldozers for sale
  • Summary
  • Details
Summary
  • Model Number:TY230
  • Brand Name:XCMG
  • Place of Origin:China
  • Certification:CE/ISO9001
  • Dimension(L*W*H):5477×3725×3517mm
  • Weight:25500kg
  • Power(W):162kW
  • Voltage:24V
  • Power Type:Electric
  • Type:Bulldozers
Details
  • Product Name:G5CDB7D16A84A4
  • Display online time:2019-11-18
  • weight:25500.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:crawler
  • Blade type:Straight tilt blade
  • Width * Height:3725mm×1315mm
  • Max.lift above ground:1210mm
  • Max.drop below ground:540mm
  • Pitch adjustment:55°
  • Max.Tiit:735mm
  • Blacle capacity:5.45m³
  • Max. working pressure of hydraulic system:13.7Mpa
  • Rated speed:1800r/min
  • Min fuel consumption ratio:218g/kw·h
  • Track width:560mm

XCMG Official TY230 Bulldozers for sale



XCMG Official TY230 Bulldozers for sale



XCMG Official TY230 Bulldozers for sale



XCMG Official TY230 Bulldozers for sale



XCMG Official TY230 Bulldozers for sale


XCMG Official TY230 Bulldozers for sale


XCMG Official TY230 Bulldozers for sale

WORK EQUIPMENT

Blade type

Straight tilt blade

Angle

U dozer

WidthXHeight (mm)

3725X1315

4365X1055

3800X1343

Max. lift above ground(mm)

1210

1210

1210

Max. drop below ground(mm)

540

535

540

Pitch adjustment (° )

55

55

55

Max. Tilt(mm)

735

735

Blade capacity(m5)

5.45

4.9

6.81

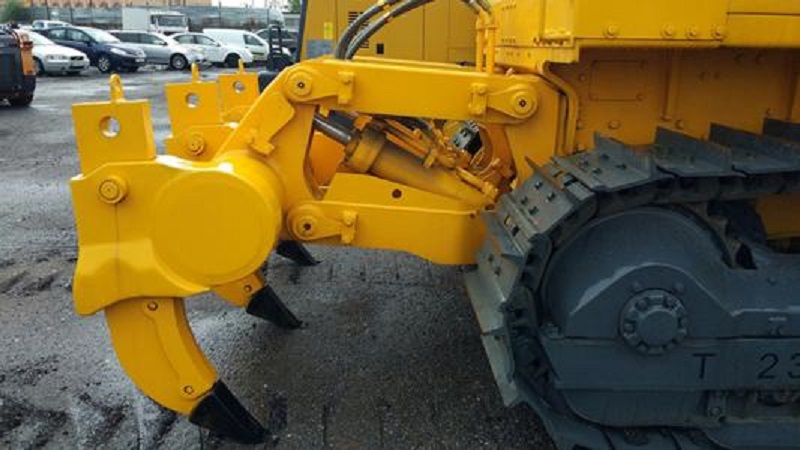

Ripper

Type

single gear

three gears

Max.dig below ground(mm)

666

666

Max.lift above ground(mm)

598

555

Weight(kg)

2560

2570


ENGINE

Model

NT855-C280

Type

Straight vertical, four-stroke, water cooling,PT pump injection,

turbocharged

Flywheel power(kW)

162

Rated speed聽锛r/min

1800

Number of cylinders-bore x stroke (mm)

6-Φ139.7x152.4

Starting method

Starting motor 24V 11kW

Battery

24V(12Vx2)

Air cleaner

Dry horizontal type with precleaner


TRANSMISSION

Torque converter

3-elementsingle-stage, single-phase

Gearbox

Planetary gear, multiple-disc clutch, hydraulic actuated,forced lubrication by gear pump, 3 forward and 3 reversespeeds Electrical-hydraulic control for model PD220Y-3

Bevel gear

Helical bevel gear, Splash lubricated

Steering clutch

Wet, multiple-disc clutch, spring loaded, hydraulicallyreleased Electrical-hydraulic control for modelPD220Y-3

steering brake

PD220Y-3 Wet band brake, operatedwith hydraulic booster and valve inner linkage Electrical-hydraulic control for model PD220Y-3

Final drive

Spur gear,double reduction, splash lubricated


TRACK

Type

Sealed single grouser

Track pitch (mm)

216

Track width (mm)

560

Number of track shoes(each side)

38

Length of track on ground (mm)

2730

Track gauge (mm)

2000


TRAVELSPEED(km/h)

1st

2nd

3rd

Forward

3.6

6.5

11.2

Reverse

4.3

7.7

13.2


HYDRAULIC SYSTEM OF WORK EQUIPMENT

Working pressure (Mpa)

13.7

Rated flow (L/min) (2000r/min)

257

Pump

CBT3160 CBT3160 gear pump

Control valve

Hand-operated plunger servo controlling

Cylinder, Bore x Rod x Stroke (mm)

Φ120x Φ70x1054


UNDER CARRIAGE

Sprocket

Segmented

No. of carrier roller (each side)

2

No. of track rollers (each side)

6(4 Single, 2 double)

Track tension

Hydraulic-adjusted

Floating seals are used in all sprockets, track rollers, carrier rollers and front idlers


WORK EQUIPMENT

Blade type

Straight tilt blade

Angle

U dozer

WidthXHeight (mm)

3725X1315

4365X1055

3800X1343

Max. lift above ground(mm)

1210

1210

1210

Max. drop below ground(mm)

540

535

540

Pitch adjustment (° )

55

55

55

Max. Tilt(mm)

735

735

Blade capacity(m5)

5.45

4.9

6.81



Ripper

Type

single gear

three gears

Max.dig below ground(mm)

666

666

Max.lift above ground(mm)

598

555

Weight(kg)

2560

2570



ENGINE

Model

QSNT-C235

Type

Vertical, 4-cycle, water cooled, electronic injection fuel system and control system-CELECT

Rated power(kW)

175

Rated speed r/min

1800

Number of cylinders-bore x stroke (mm)

6-Φ139.7x152.4

Starting method

Starting motor 24V 11kW

Battery

24V(12Vx2)

Air cleaner

Dry horizontal type with precleaner

Min fuel consumption ratio(min)

205

TRANSMISSION

Torque converter

3-elementsingle-stage, single-phase

Gearbox

Planetary gear, multiple-disc clutch, hydraulic actuated,forced lubrication by gear pump, 3 forward and 3 reversespeeds Electrical-hydraulic control for model PD220Y-3

Bevel gear

Helical bevel gear, Splash lubricated

Steering clutch

Wet, multiple-disc clutch, spring loaded, hydraulicallyreleased Electrical-hydraulic control for modelPD220Y-3

steering brake

PD220Y-3 Wet band brake, operatedwith hydraulic booster and valve inner linkage Electrical-hydraulic control for model PD220Y-3

Final drive

Spur gear,double reduction, splash lubricated

TRACK

Type

Sealed single grouser

Track pitch (mm)

216

Track width (mm)

560

Number of track shoes(each side)

38

Length of track on ground (mm)

2730

Track gauge (mm)

2000

TRAVELSPEED(km/h)

1st

2nd

3rd

Forward

3.6

6.5

11.2

Reverse

4.3

7.7

13.2

HYDRAULIC SYSTEM OF WORK EQUIPMENT

Working pressure (Mpa)

13.7

Rated flow (L/min) (2000r/min)

257

Pump

CBT3160 CBT3160 gear pump

Control valve

Hand-operated plunger servo controlling

Cylinder, Bore x Rod x Stroke (mm)

Φ120x Φ70x1054

UNDER CARRIAGE

Sprocket

Segmented

No. of carrier roller (each side)

2

No. of track rollers (each side)

6(4 Single, 2 double)

Track tension

Hydraulic-adjusted

Floating seals are used in all sprockets, track rollers, carrier rollers and front idlers
