- Model Number:LW500KL
- Brand Name:XCMG
- Place of Origin:China
- Rated Load:5000Kg
- Dimension(Long * Breadth * High):8280*3000*3515
- Certification:ISO9001
- Product Name:00305/00306
- Display online time:2019-11-07
- weight:17600.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:USED
- Moving Type:wheel
- Bucket capacity:2.5m³
- Bucket width:3000mm
- Max.breakout force:170kN
- Max.tractive effort:165kN
- Articulatn angle:±38°
- Wheel base:3300mm
- Gradeability:30°
- Year:2013/10/19

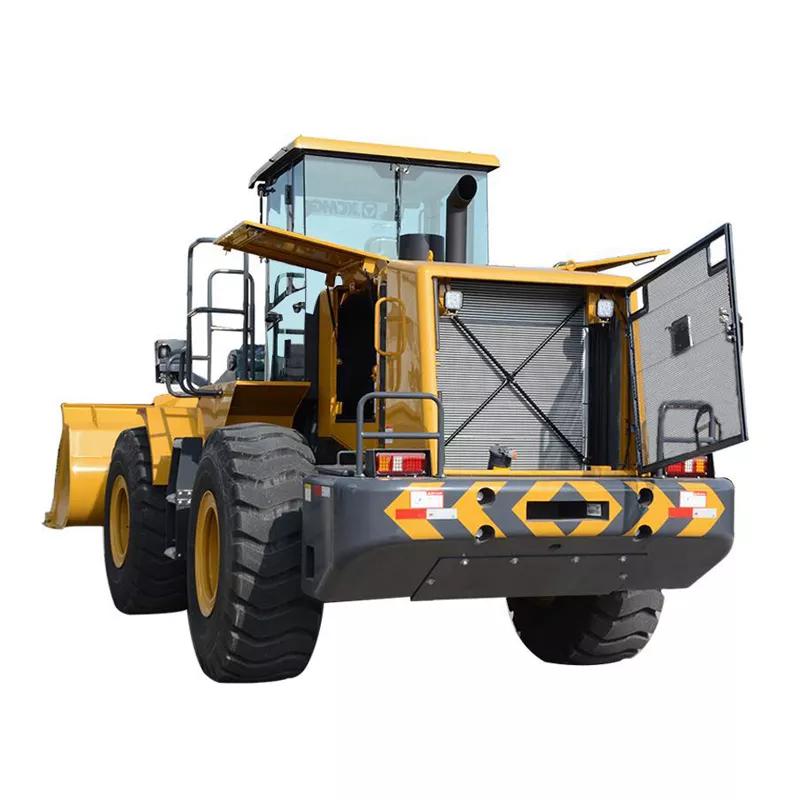

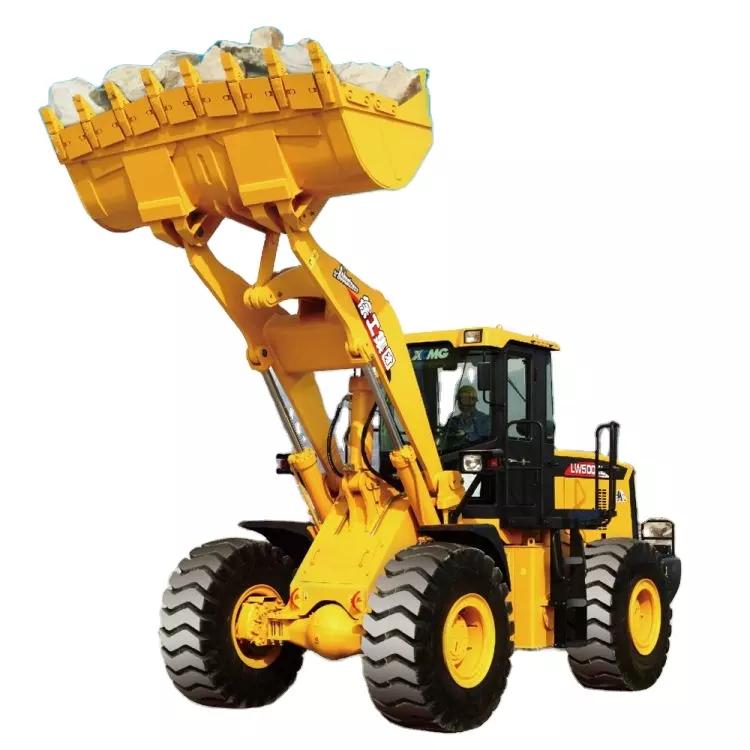

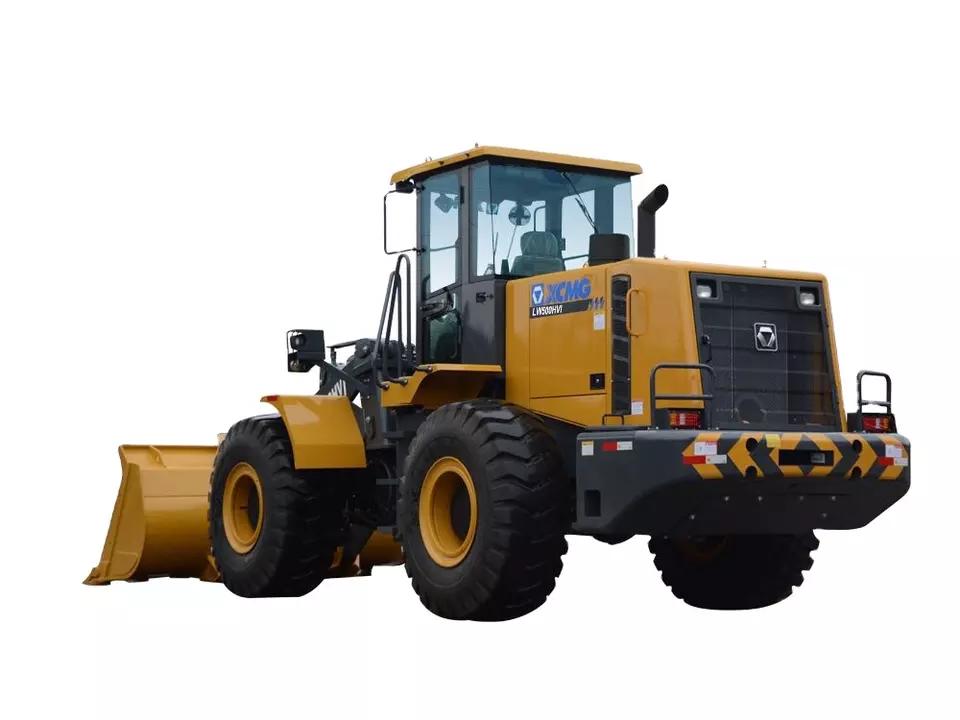

LW500KL Wheel Loader
1、the long wheelbase models of heavy, heavy type, strong and mighty.
2、efficient transmission system to ensure that the whole machine saves more than 12% oil.
3、traction is greater than 165kN, walking is more stable, digging and digging is more powerful.
4、noise reduction and dust-proof design, noise reduced by more than 6 dB.
Item | LW500KLParameter | Unit | |
Rated load | 5000 | kg | |
Tipping load | 110 | kN | |
Bucket capacity | 3.0 | m | |
Dumping height | 3090 | mm | |
Dumping distance | 1130 | mm | |
Lifting height | 5262 | mm | |
Bucket width | 3000 | mm | |
Max.drawing force | 170 | kN | |
Max. traction | 175 | kN | |
Articulation angle | ±38 | ° | |
Dimension (Length x Width x Height) | 8185x3000x3465 | mm | |
Operating weight | 17.4 | t | |
Boom lifting time | 36 | s | |
Total time of three devices | 311 | s | |
Wheelbase | 3300 | mm | |
Tread | 2250 | mm | |
Min. turning radius(tyre center) | 5925 | mm | |
Min. turning radius (bucket outside) | 6910 | mm | |
Rated power/rotary speed | 162/2200 | kW/r/min | |
Engine model | WD10G220E23 | ||
Gradeability | 30 | ° | |
Speed | I Gear (Forward/Backward) | 11/13 | km/h |
II Gear (Forward) | 36 | km/h | |
Tyre specification | 23.5-25-16PR | ||
