Summary
- Model Number:SG210A2
- Brand Name:XCMG
- Place of Origin:Xuzhou,China
- Size:11850×2500×3660mm
- Fuel Type:Diesel
- Emission Standard:Euro 4
- Tank Capacity:21000kg
- Horsepower:420hp
- Transmission:Manual
- Type:Water
- Drive Wheel:8×4
- Certification:ISO9001/CCC
Details
- Product Name:G5CB5B27842D07
- Display online time:2019-11-14
- weight:40004.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:3 Months
- Condition:NEW
- Moving Type:other

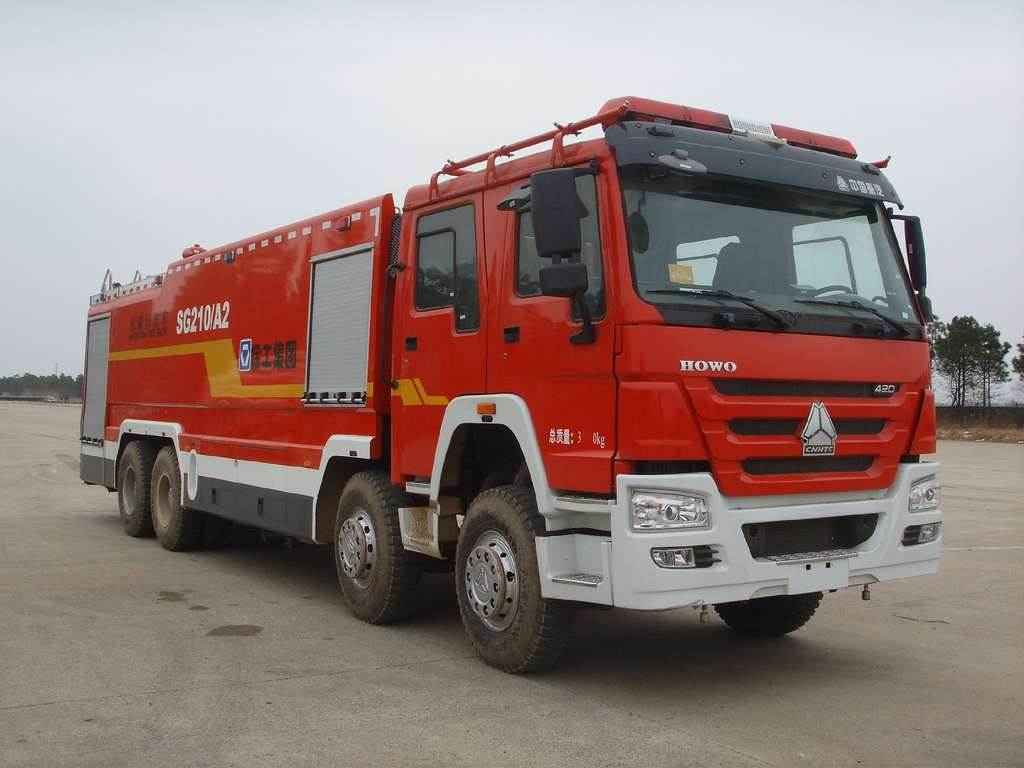

XCMG Official Water Tank Fire Truck SG210A2 for sale
1. As the first truck to be deployed, it must be furnished with required crew quantity. Therefore, a four-bridge chassis with a double-row four-door and a six-passenger cab is configured to meet the requirements. Chassis uses CNHTC ZZ5437V4667D5 type Ⅱ chassis, maximum speed not less than 95 km / h; use of 309KW engine, taking into account the contradiction between price and specific power, endows the truck with both advantages of good cost performance and large specific power, as well meeting requirements of the national IV emission standards.
2. Fire fighting system configuration: HALE·RSD fire pump and PSKD80 electric control fire monitor manufactured by WST (Chengdu) enable the truck not only to adapt for the working condition where low pressure and large flow is required, but also to cooperate with water tower fire truck to carry out fire fighting for high-rise buildings.
3. Self-protective spraying system: in recent years, more and more attention has been paid to the self-protective spraying system, so the truck is also provided with self-protective spraying system mounted at the top of cab and tire to effectively improve adaptability of the truck against the fire field.
4. This truck is equipped with 21,000 kg water tank which can support fire fighting operation in a location far away from the water source or allow the truck to work independently.
Main performance data | ||
Overall size : (L x W x H) | 11850×2500×3660mm | |
Full-load weight | 40000kg | |
Maximum truck speed | ≥95km/h | |
Minimum turning diameter | ≤26m | |
Approach angle | ≥16° | |
Departure angle | ≥11° | |
Maximum gradeability | ≥25% | |
Front and rear suspension | Front suspension | 1500mm |
Rear suspension | 2600mm | |
Fire fighting system | Pump rated flow | 80 L/s |
Pump rated pressure | 1.0MPa | |
Monitor model | PSKD80W | |
Monitor rated flow | 80 L/s | |
Monitor rated pressure | 1.0MPa | |
Monitor shoot range | ≥80m | |
Response Time : Within 24 hours
