- Product Name:DXA5070GQXD5
- Display online time:2019-11-07
- weight:3305.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:wheel
- Dimensions (length × width × height):6020,6620×2010×2170mm
- Maximum total mass:7360kg
- Curing quality:3305kg
- Rated load mass:3925kg
- Maximum speed:99km/h
- Wheelbase :3308mm
- Effective volume of tank:4.12m³
- Working speed:5-20km/h

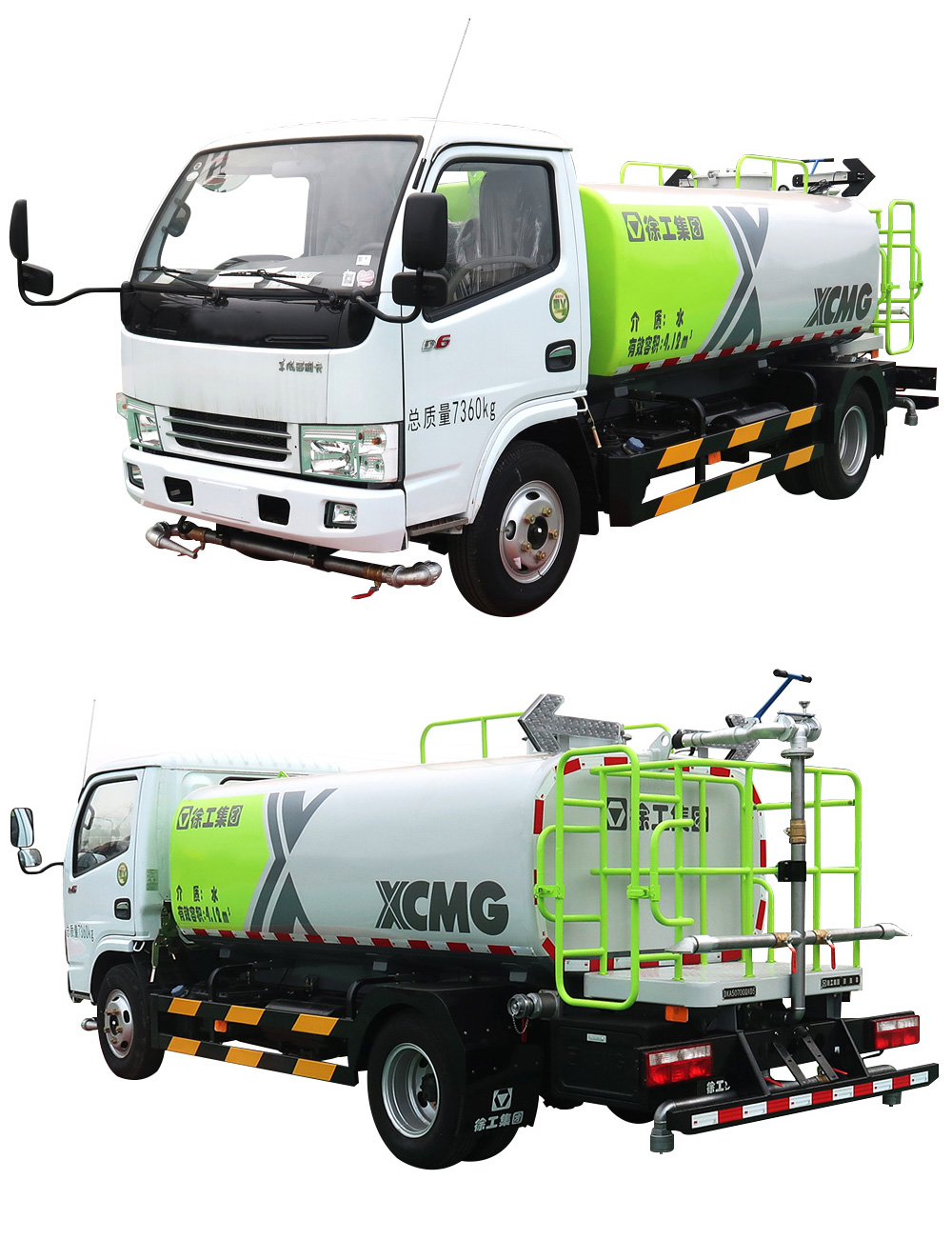

DXA5070GQXD5 cleaning
vehicle is a special vehicle modified with Dongfeng EQ1070SJ3BDF chassis. It is
suitable for road surface cleaning, watering, spraying, dust reduction and
cooling. It can also be used for road maintenance, landscaping and emergency fire
fighting. It can deliver music during cleaning and spraying operations.
The product is based on the
concept of “Technology Leading Without Destruction” and improves product
configuration from the aspects of reliability, environmental adaptability,
safety, maintainability, operability and economical use. From the perspective
of ease of use, usability, durability, and practicality, the function is
optimized and reliability is improved.
Project
|
DXA5070GQXD5
|
|
Vehicle parameters
|
Dimensions (length × width × height) (mm)
|
6020,6620×2010×2170
|
Maximum total mass (kg)
|
7360
|
|
Curing quality (kg)
|
3305
|
|
Rated load mass (kg)
|
3925
|
|
Maximum speed (km/h)
|
99
|
|
Front overhang / rear overhang
|
1040/1672
|
|
Approach / departure angle)
|
7/13
|
|
Chassis parameters
|
Chassis model
|
EQ1070SJ3BDF
|
Engine model / power (kw)
|
YC4FA115-50/85
|
|
CY4BK551/75
|
||
Wheelbase (mm)
|
3308
|
|
Work performance parameter
|
Effective volume of tank (m3)
|
4.12
|
Working speed (km/h)
|
5～20
|
|
Sprinkling width (m)
|
≥12
|
|
Flush width (m)
|
≥14
|
|
Nozzle Flush System Pressure (kPa)
|
≥300
|
|
Gun flushing flow rate (L/min)
|
≥60
|
|
Water gun range (m)
|
≥28
|
|
Water absorption depth (m)
|
6.5
|
Response Time : Within 24 hours
