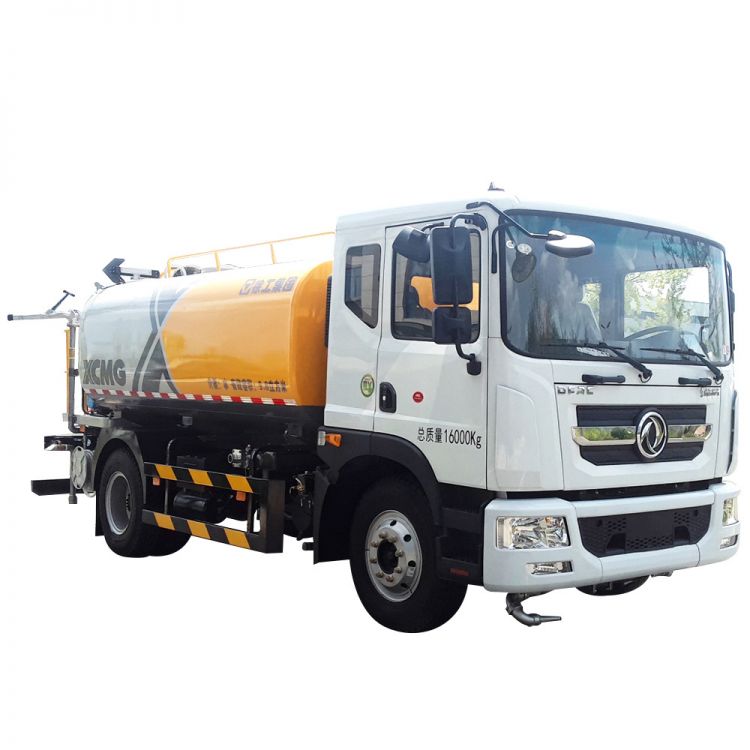

.jpg_l.jpg "XCMG Official XZJ5160GQXD5 Cleaning Car for sale")
.jpg_t.jpg)
.jpg_t.jpg)
.jpg_t.jpg)
.jpg_t.jpg)
- Summary
- Details
- Product Name:XZJ5160GQXD5
- Display online time:2019-11-07
- weight:8440.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:wheel
- Dimensions (length × width × height):9000×2495×2930mm
- Wheelbase:4500mm
- Vehicle kerb quality:8440kg
- Maximum total mass:15800kg
- Actual volume of the tank:7.52L
- Maximum speed (full load)）:90km/h

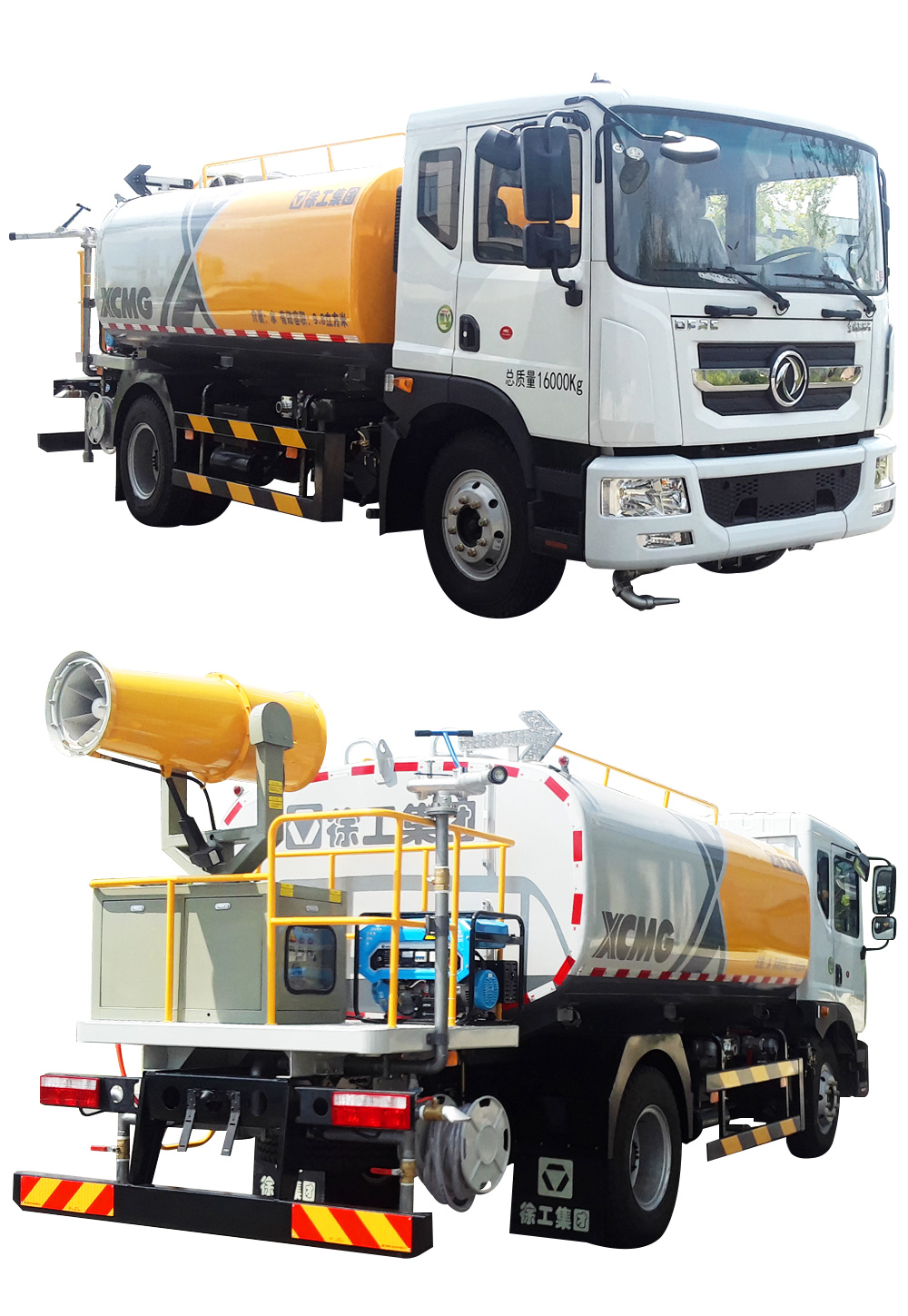

The XZJ5160GQXD5 cleaning vehicle has independent high and low pressure
water systems. High-pressure water can clean roads, curbs, sidewalks and
guardrail isolation areas. High-pressure spray guns can also be used to clean
road signs, billboards, elevated roads, etc. The spray system has powerful
spray dust, spray air disinfectant and air humidity adjustment. Low-pressure
water can be sprinkled with water to reduce dust and green water.
1、It
has independent high and low pressure water system and high pressure cleaning
and watering function. The sub engine drives the high pressure water pump. The
chassis engine drives the low pressure water pump. The high pressure cleaning
speed can be controlled arbitrarily.。
2、The
front water spray frame is controlled by the oil cylinder to extend and
retract, rise and fall, and deflect. The cleaning width can be adjusted from
2.5m to 3.5m; the nozzle forward tilt angle can be adjusted from 25° to 40°;
.jpg)
|
Project |
unit |
Parameter |
Remarks |
||
|
Work
performance |
Sprinkler
cleaning width |
m |
2.5-3.5 |
Spray
rod shrinkage |
|
|
Sprinkler
angle |
(°) |
30
left and right |
|||
|
Working
speed |
Low
pressure sprinkler |
Km/h |
Ⅰ7:Ⅱ14 |
||
|
High
pressure cleaning |
Km/h |
3-15 |
|||
|
High
pressure cleaning capability |
m2/h |
25000 |
|||
|
Maximum
cleaning water pressure |
MPa |
10 |
|||
|
Washing
water flow |
L/min |
134 |
|||
|
Spray
water flow |
L/min |
134 |
|||
|
Low
pressure sprinkler flow |
L/min |
600~800 |
|||
|
Low
pressure rinse width |
m |
≥24 |
|||
|
Water
gun range |
m |
38 |
|||
|
Actual
volume of the tank |
L |
7.52 |
|||
|
Driving
performance |
Maximum speed (full load)） |
km/h |
90 |
||
|
Maximum
climbing angle |
(°) |
12 |
|||
|
Braking
distance |
m |
≤10 |
|||
|
Minimum
turning diameter |
m |
＜16 |
|||
|
Quality
parameter |
Vehicle
kerb quality |
kg |
8440 |
Basic
type |
|
|
Maximum
total mass |
kg |
15800 |
|||
|
structure
size |
Dimensions
(length × width × height) |
mm×mm×mm |
9000×2495×2930 |
Transportation
status (basic type) |
|
|
Wheelbase |
mm |
4500 |
|||
|
Track |
Front
wheel |
mm |
1880 |
||
|
Rear
wheel |
mm |
1860 |
|||
|
Approach
angle |
(°) |
10 |
|||
|
Departure
angle |
(°) |
11 |
|||
