Summary
- Certification:ISO9001
- Dimension(L*W*H):7820×2500×3470mm
- Weight:8440kg
- Model Number:XZJ5160GXWD5
- Brand Name:XCMG
- Place of Origin:China
Details
- Product Name:XZJ5160GXWD5
- Display online time:2019-11-07
- weight:8440.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:wheel

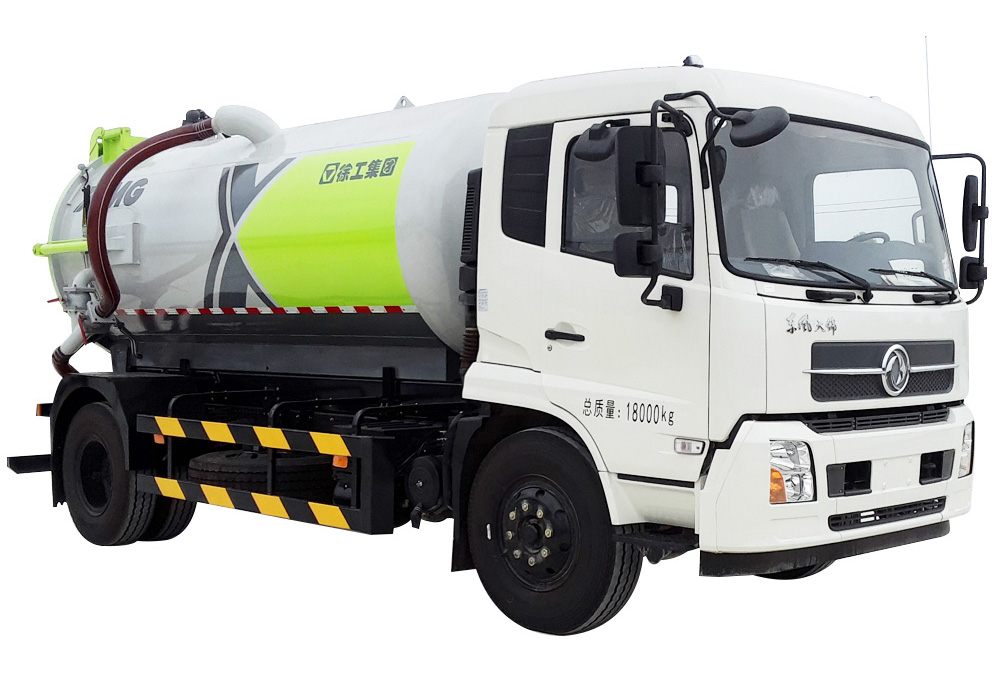

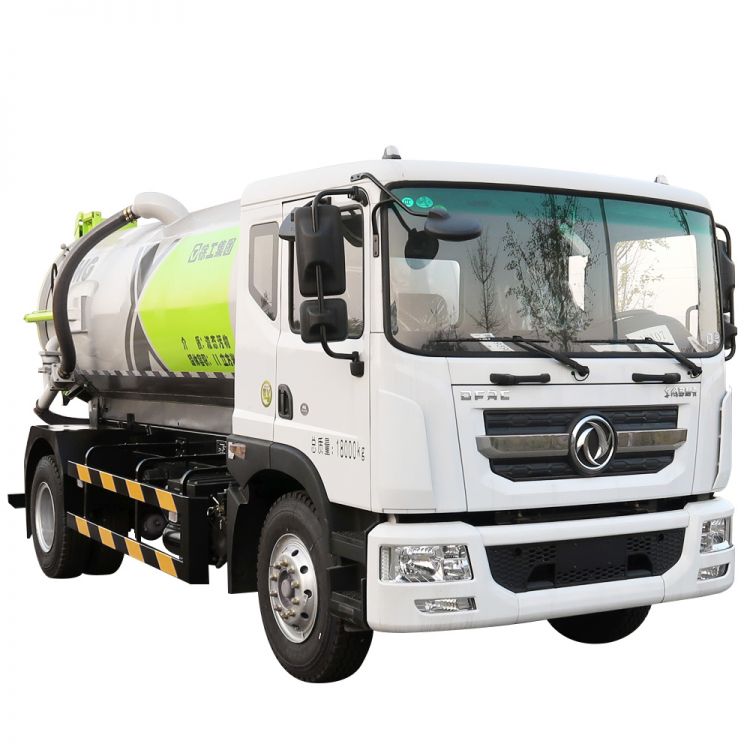

The
XZJ5160GXWD5 is developed and produced by XCMG Environmental Technology Co.,
Ltd. on the basis of extensive consultation with users and research on various
domestic and foreign suction trucks and suction trucks. It is suitable for
liquid and transportation of sewage, manure, mud, etc. It can also be used for
rural irrigation and drainage, as well as for dual-use vehicles that do not
contain acid and alkali and corrosive liquids and pastes..jpg)
|
Model |
XZJ5160GXWD5 |
|
|
Dimensions (length × width × height)
mm |
7820×2500×3470mm |
|
|
Tank dimensions (mm) length / diameter |
4330/1700 |
|
|
Chassis production company |
DFM |
|
|
Chassis model |
EQ1168GLJ4(EmissionV) |
|
|
Wheelbase (mm) |
4500
|
|
|
Track (front/rear) (mm) |
1940/1860 |
|
|
Maximum suction and degree (m) |
≦6 |
|
|
Effective capacity (m3) |
9.6 |
|
|
Front overhang / rear overhang (mm) |
1250/2070
|
|
|
Maximum speed (Km/h) |
90,80
|
|
|
Maximum total mass (Kg) |
16000
|
|
|
Curb weight (Kg) |
8440 |
|
|
Suction diameter (mm) |
100 |
|
|
Vacuum
pump |
model |
50QZXDH-68/7000 |
|
Theoretical pumping speed (L/S) |
68 |
|
|
Rated speed (r/m) |
800 |
|
|
Shaft power (KW) |
5 |
|
|
Absolute working pressure (vacuum) |
7000
Pa(93%) |
|
Response Time : Within 24 hours
