XCMG Official XZJ5161GQXD5 Cleaning Car for sale

  • XCMG Official XZJ5161GQXD5 Cleaning Car for sale
  • XCMG Official XZJ5161GQXD5 Cleaning Car for sale
  • XCMG Official XZJ5161GQXD5 Cleaning Car for sale
  • XCMG Official XZJ5161GQXD5 Cleaning Car for sale

Share:
XCMG Official XZJ5161GQXD5 Cleaning Car for sale
FOB for Sanitary Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Shipping
Payment Terms:
XCMG Official XZJ5161GQXD5 Cleaning Car for sale
  • Summary
  • Details
Summary
Details
  • Product Name:XZJ5161GQXD5
  • Display online time:2019-11-07
  • weight:8400.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:wheel
  • Dimensions (length × width × height):9010*2500*2950mm
  • Working speed:5~20km/h
  • Curing quality:8400kg
  • Total mass:16000kg
  • Sprinkling capacity:0.2~2.0L/ ㎡
  • Effective volume of tank:7.52m³


XCMG Official XZJ5161GQXD5 Cleaning Car for sale

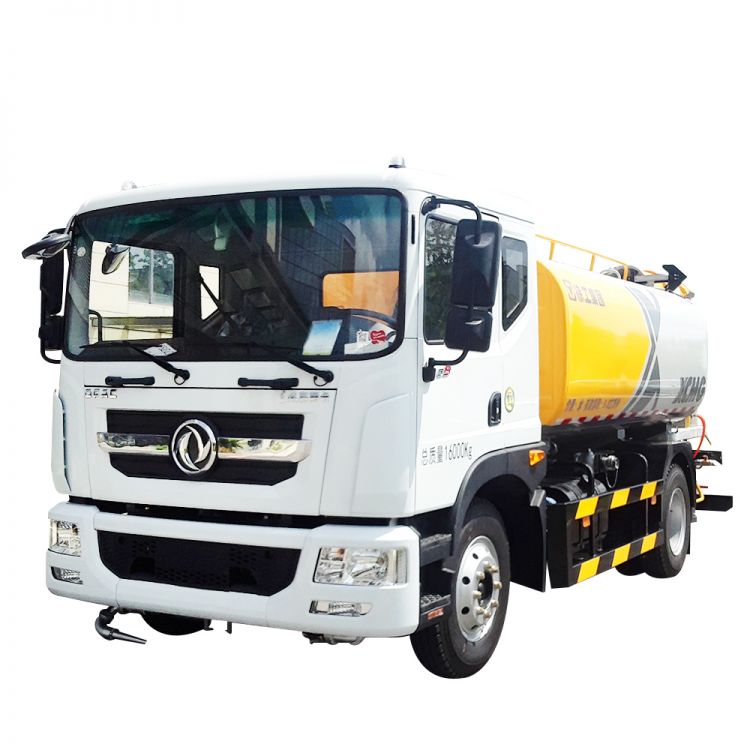

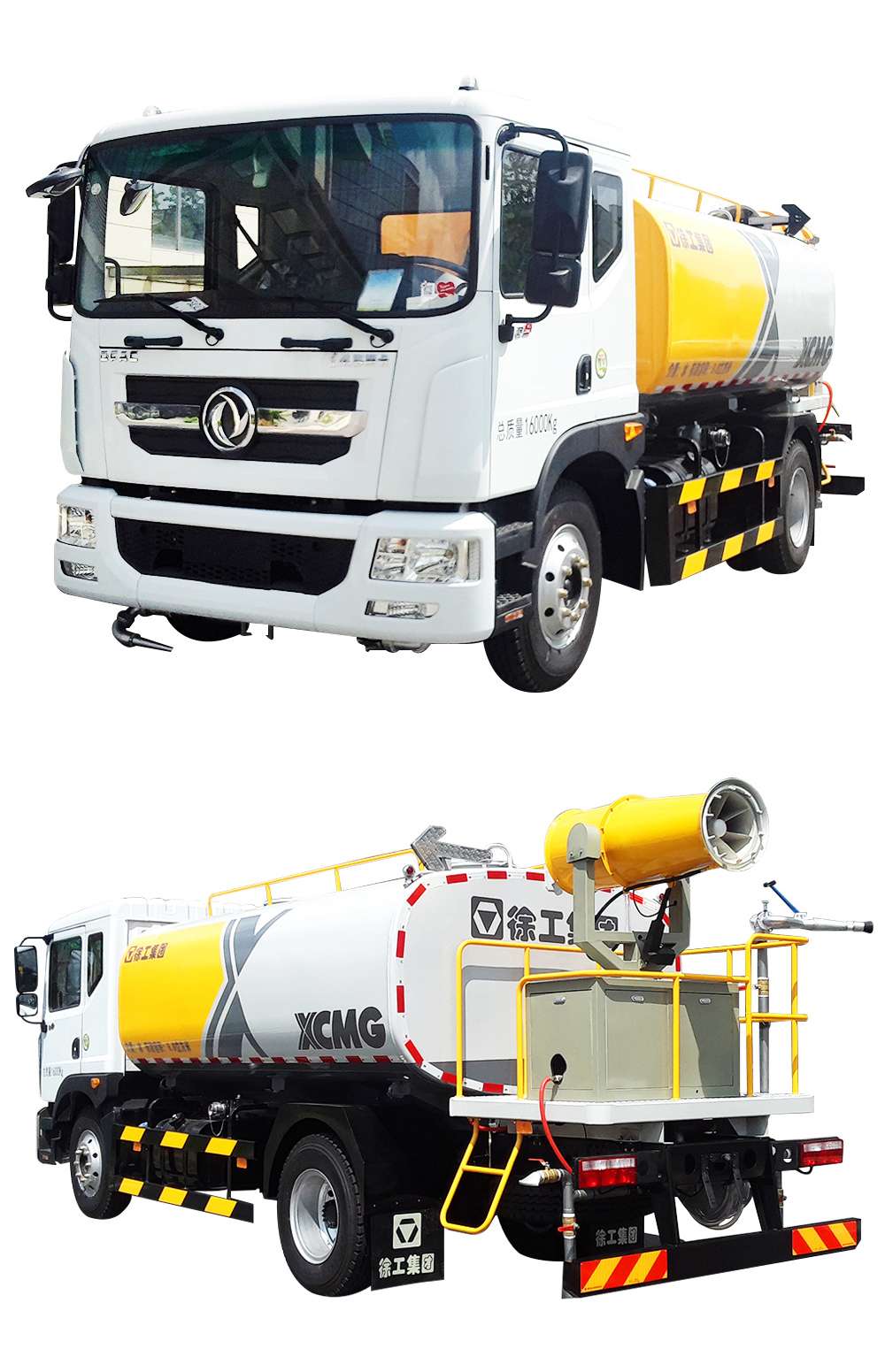

XZJ5161GQXD5 cleaning car has independent high and low pressure water system. High pressure water can clean road surface, curb, sidewalk and guardrail isolation area; high pressure spray gun can also clean road signs, billboards, elevated roads, etc.; spray system has powerful spray Dust, spray air disinfectant and adjust air humidity. Low-pressure water can be sprinkled with water to reduce dust and green water.

Technical characteristics
1It has independent high and low pressure water system and high pressure cleaning and watering function. The sub engine drives the high pressure water pump. The chassis engine drives the low pressure water pump. The high pressure cleaning speed can be controlled arbitrarily.
2The front water spray frame is controlled by the oil cylinder to extend and retract, rise and fall, and deflect. The cleaning width can be adjusted from 2.5m to 3.5m; the nozzle forward tilt angle can be adjusted from 25° to 40°;
3The high and low pressure waterways are equipped with anti-freeze water blowing device interfaces to prevent freezing of water components during low temperature in winter.
4The clean water tank has a low water level alarm function and an alarm function to prevent the water pump from running out of water, effectively protecting the high pressure water pump.
5The low-pressure waterway system uses a two-stage impeller centrifugal pump with high efficiency, large sprinkling width and long range of water guns. It can also be equipped with green watering and self-priming functions.
6The water tank is treated with special anti-corrosion treatment, low price and high performance.XCMG Official XZJ5161GQXD5 Cleaning Car for sale

XCMG Official XZJ5161GQXD5 Cleaning Car for sale

Dimensions (mm)

9010*2500*2950

Total mass (kg)

16000

Curing quality (kg)

8400

Effective volume of tank (m3)

7.52

Working speed (km/h)

520

Low pressure flushing width (m)

≥24

High pressure cleaning width (m)

2.5-3.5

Sprinkling capacity (L/m2)

0.22.0

High pressure flushing system pressure (MPa)

≥9

High pressure flushing water flow (L/min)

≥134

Water gun range (m)

≥38

Self-priming height (m)

6


XCMG Official XZJ5161GQXD5 Cleaning Car for saleXCMG Official XZJ5161GQXD5 Cleaning Car for saleXCMG Official XZJ5161GQXD5 Cleaning Car for sale
