- Product Name:XZJ5180GQXD5
- Display online time:2019-11-07
- weight:7460.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:wheel
- Dimensions (length × width × height):10100×2550×2930mm
- Front overhang / rear overhang :1545/2170mm
- Sprinkling amount :600-800L/min
- Water gun range:≥38m
- Maximum speed:90，80km/h
- Wheelbase :5600mm
- Tank volume:9.1m³
- Working speed:5-20km/h

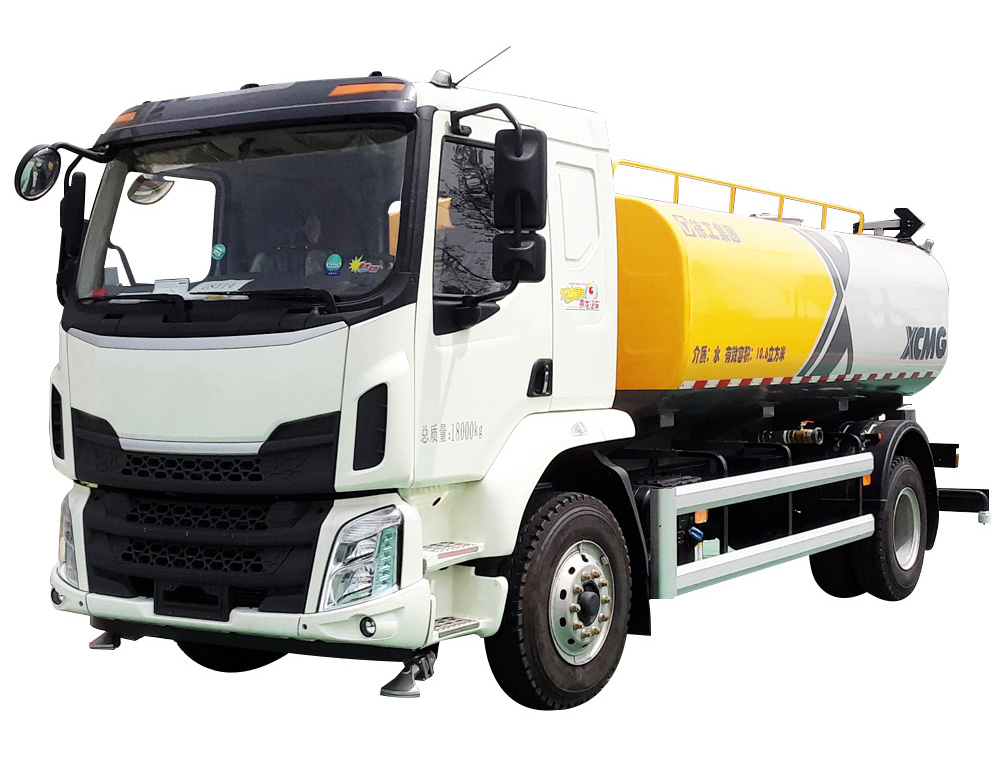

XZJ5180GQXD5 cleaning vehicle has independenthigh and low pressure water system. High pressure water can clean road surface,curb, sidewalk and guardrail isolation area; high pressure spray gun can alsoclean road signs, billboards and elevated roads. The spray system featurespowerful spray dusting, aerosol disinfection and air humidity adjustment. Thelow-pressure waterway system can be used for watering, dusting, and greening.
Technical characteristics
1、Thetruck has independent high and low pressure water system, which can be used forhigh pressure cleaning and watering; the auxiliary engine drives the highpressure water pump, the chassis engine drives the low pressure water pump, andthe high pressure cleaning speed can be controlled arbitrarily.
2、Thefront water spray frame is controlled by the oil cylinder to extend andretract, rise and fall, and deflect. The cleaning width can be adjusted from2.5m to 3.5m; the nozzle forward tilt angle can be adjusted from 25° to 40°;
3、Thehigh and low pressure waterways are equipped with anti-freeze water blowingdevice interfaces to prevent freezing of water components during lowtemperature in winter.
4、Theclean water tank has a low water level alarm function and an alarm function toprevent the water pump from running out of water, effectively protecting thehigh pressure water pump.
5、Thelow-pressure waterway system uses a two-stage impeller centrifugal pump withhigh efficiency, large sprinkling width and long range of water guns. It canalso be equipped with green watering and self-priming functions.
6、Thewater tank is treated with special anti-corrosion treatment, low price and highperformance.
|
model |
XZJ5180GQXD5 |
|
Tank
volume (m³) |
9.1 |
|
Dimensions
(mm) |
10100×2550×2930 |
|
Number
of passengers in the cab (person) |
2，3 |
|
Front
overhang / rear overhang (mm) |
1545/2170 |
|
Wheelbase
(mm) |
5600 |
|
Maximum
speed (Km/h) |
90，80 |
|
Chassis
type |
Truck chassis |
|
Working
speed (km/h) |
5～20 |
|
Low
pressure flushing width (m) |
≥24 |
|
High
pressure cleaning width (m) |
2.5-3.5 |
|
Sprinkling
amount (L/min) |
600～800 |
|
High
pressure flushing system pressure (MPa) |
≥10 |
|
High
pressure flushing water flow (L/min) |
≥134 |
|
Water
gun range (m) |
≥38 |
|
Number
of passengers in the cab (person) |
2，3 |
|
Front
overhang / rear overhang (mm) |
1545/2170 |
