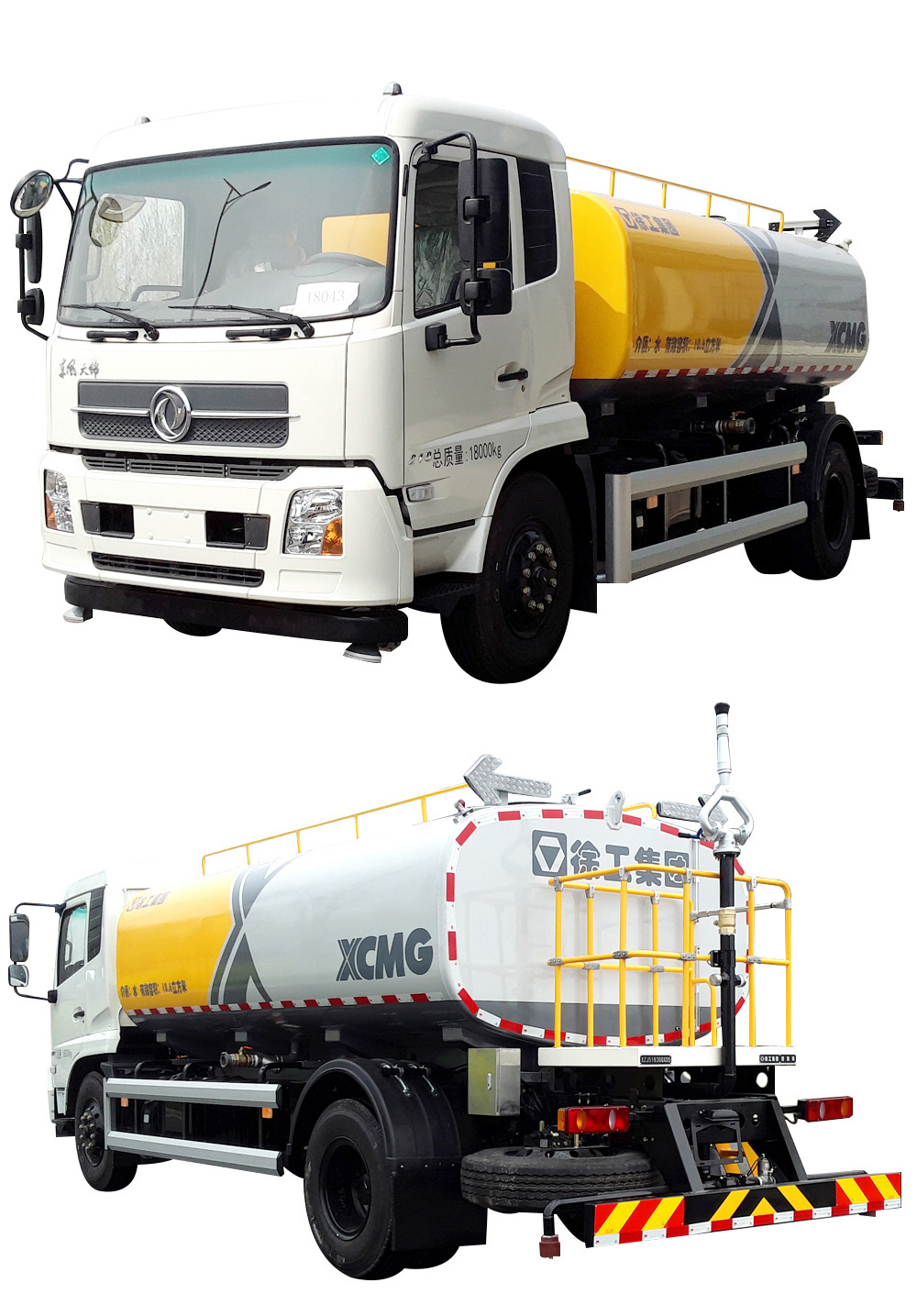

XCMG Official XZJ5183GQXD5 Cleaning Truck for sale

  • XCMG Official XZJ5183GQXD5 Cleaning Truck for sale
  • XCMG Official XZJ5183GQXD5 Cleaning Truck for sale
  • XCMG Official XZJ5183GQXD5 Cleaning Truck for sale
  • XCMG Official XZJ5183GQXD5 Cleaning Truck for sale
  • XCMG Official XZJ5183GQXD5 Cleaning Truck for sale

Share:
XCMG Official XZJ5183GQXD5 Cleaning Truck for sale
FOB for Sanitary Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Shipping
Payment Terms:
XCMG Official XZJ5183GQXD5 Cleaning Truck for sale
  • Summary
  • Details
Summary
Details
  • Product Name:XZJ5183GQXD5
  • Display online time:2019-11-07
  • weight:7670.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:wheel


XCMG Official XZJ5183GQXD5 Cleaning Truck for sale

XZJ5183GQXD5 cleaning vehicle has independent high and low pressure water system. High pressure water can clean road surface, curb, sidewalk and guardrail isolation area; high pressure spray gun can also clean road signs, billboards and elevated roads. The spray system features powerful spray dusting, aerosol disinfection and air humidity adjustment. The low-pressure waterway system can be used for watering, dusting, and greening.

1Rich in features

The truck has a variety of sprinklers, The front is equipped with a duckbill nozzle or a round head nozzle, and a cylindrical sprinkler and a side spray shower head are arranged at the back to meet the needs of front, back and side spray. The truck's rear working platform also has a sprinkler. The sprinkler can have a variety of spray modes such as DC, heavy rain, moderate rain, drizzle, and foggy adjustment. It can also be rotated 360 degrees for pesticide spraying. These properties greatly enhance vehicle suitability and improve vehicle utilization.

2Easy to use

aThere are fewer jams. The waterway is equipped with multiple filtering devices. The combination of coarse filtration and fine filtration minimizes the probability of blockage of pipes, nozzles and pumps.

bIt is convenient to add water. The self-contained water pump has self-priming function and filter protection, which can pump water in and out, add water in the field The water supply port of the pipeline has fire-fighting joints, which can add water from the fire waterway; the can lid can be freely opened and closed, and the water  can be added to the tank using a water pipe.

cThe function of each function is controlled by electric control pneumatic, which can be switched automatically by one button.

XCMG Official XZJ5183GQXD5 Cleaning Truck for saleXCMG Official XZJ5183GQXD5 Cleaning Truck for sale

Project

Content

Parameter

Chassis parameters

Model

DFH1180BX1V

Power Kw

155

Wheelbase (mm)

4500

Front overhang / rear overhang (mm)

1430/2120

Vehicle parameters

Maximum total mass (kg)

18000

Length × width × height (mm)

8050×2520×2920

Curing quality (kg)

7670

Work performance parameter

Effective volume of tank (m3)

10.6

Working speed (km/h)

520

Sprinkling width (m)

≥16

Flush width (m)

≥24

Nozzle Flush System Pressure (kPa)

≥300

Gun flushing flow rate (L/min)

≥60

Spray gun range (m)

≥36

Self-priming height (m)

6.5
