- Model Number:PM230F1
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Size:11450*2500*3590mm
- Max Work Height:24m
- Fuel Type:Diesel
- Emission Standard:National Ⅴ
- Tank Capacity:Water 18500Kg + foam 4000Kg
- Type:Tanker
- Drive Wheel:8x4
- Certification:CE/ISO9001
- Transmission Type:Manual
- Product Name:G5F915524C41E6
- Display online time:2020-10-23
- weight:16950.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:3 Months
- Condition:NEW
- Moving Type:other
- Maximum truck speed:85km/h

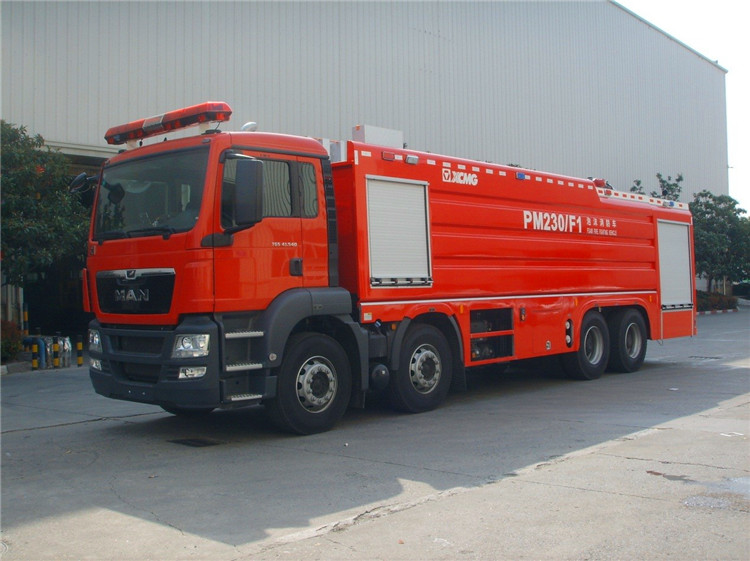

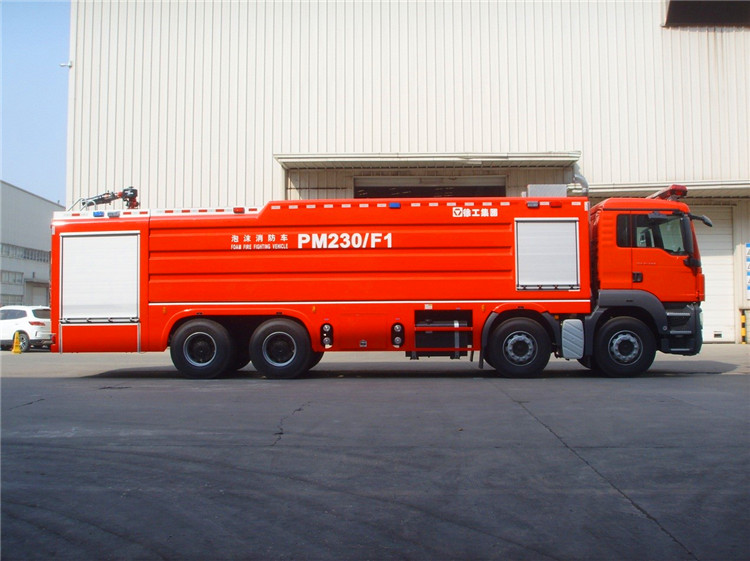

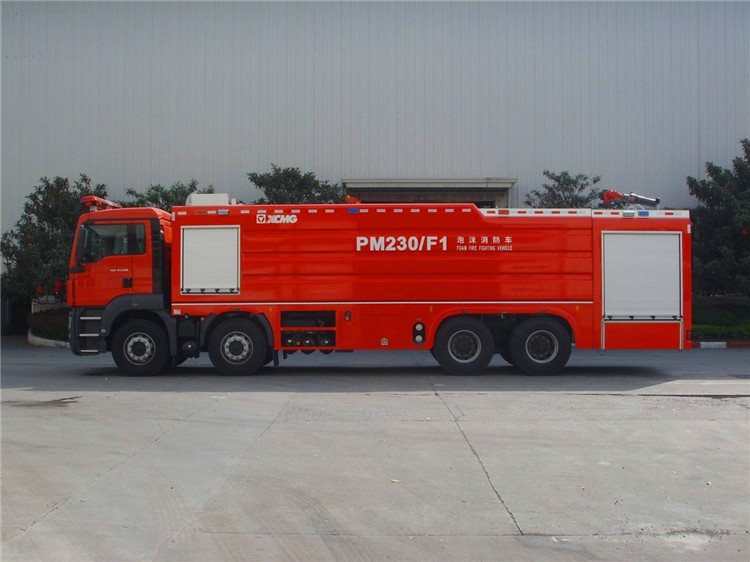

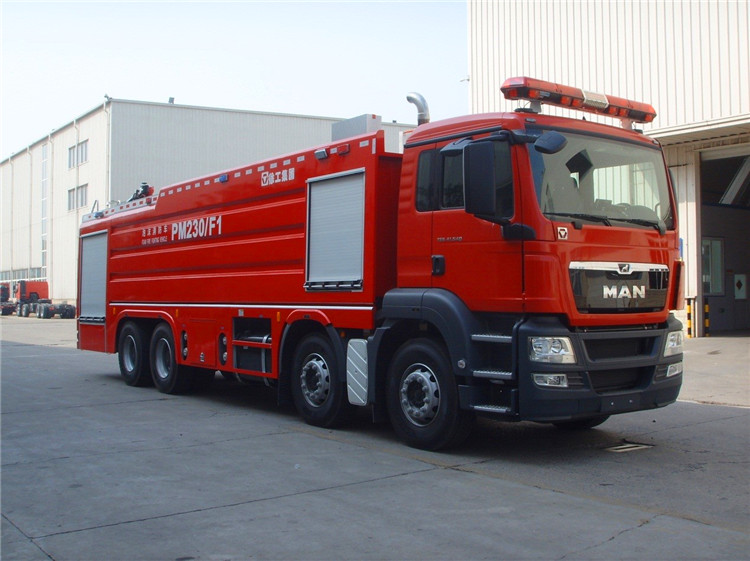

8x4 23ton foam fire truck PM230F1 China large new mobile
fire fighting truck machine.
PM230F1 foam fire truck is a large-tonnage new fire
fighting main battle vehicle independently designed and developed according to
market demand. It is a fire fighting main battle heavy-duty fire truck with
large loading capacity and multiple fire fighting operation functions.
It has large loading capacity fire fighting and rescue in
cities, mines, factories, docks, especially logistics storage and other
occasions.
Advantage &Highlight:
1, Adopts all imported high performance configuration.
The chassis adopts Germany MAN TGS 41.540 two-class
chassis, the maximum speed is greater than 90km/h, the powerof engine 400kw,
and the emission meets the national Ⅴ emission standards.
2, Powerful single-vehicle fire fighting capability and
long-distance water supply capacity.
The truck is equipped with a fire tank that can carry
22,500 kg of water.
3, Equipped with a 8FC large flow fire pump imported from
America.
The maximum flow rate can reach 10000L per minute. The
fire fighting can be used in combination with high-lift water tower fire trucks
to meet the fire extinguishing of high-rise buildings. It can also supply water
for high-rise buildings.
|
Overall size : (L x W x H) |
11450×2500×3590mm |
|
|
Full-load weight |
39700kg |
|
|
Maximum truck speed |
≥85km/h |
|
|
Minimum turning diameter |
≤24m |
|
|
Approach angle |
≥17° |
|
|
Departure angle |
≥10° |
|
|
≥25% |
||
|
Front and rear suspension |
Front suspension |
1475mm |
|
Rear
suspension |
2930mm |
|
|
Quality parameters |
Curb weight |
16950Kg |
|
Water
(SG) |
22500Kg |
|
|
(PM) |
18500Kg+4000Kg |
|
|
Chassis parameters |
Model |
TGS
41.540 |
|
Drive form |
8×4 |
|
|
Manufacturer |
Germany
MAN |
|
|
Engine power |
397Kw |
|
|
Emission
Level |
National Ⅴ |
|
|
Number of drivers and passengers |
2+1 |
|
|
Fire-fighting system |
Pump
rated flow |
≥150
L/s |
|
Pump rated pressure |
1.0MPa |
|
|
Water
absorption depth |
≤7m |
|
|
Diversion time |
≤100s |
|
|
Monitor
rated flow |
≥150
L/s |
|
|
Monitor rated pressure |
0.85MPa |
|
|
Monitor
firing range |
≥90m |
|
