XCMG Official QAY650A All Terrain Crane for sale

  • XCMG Official QAY650A All Terrain Crane for sale

Share:
XCMG Official QAY650A All Terrain Crane for sale
FOB for Cranes Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping
Payment Terms:
XCMG Official QAY650A All Terrain Crane for sale
  • Summary
  • Details
Summary
  • Model Number:QAY650A
  • Brand Name:XCMG
  • Place of Origin:China
  • Certification:ISO9001
Details
  • Product Name:G5ACB0006C51E9
  • Display online time:2019-11-08
  • weight:94400.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:wheel

XCMG Official QAY650A All Terrain Crane for saleXCMG Official QAY650A All Terrain Crane for sale

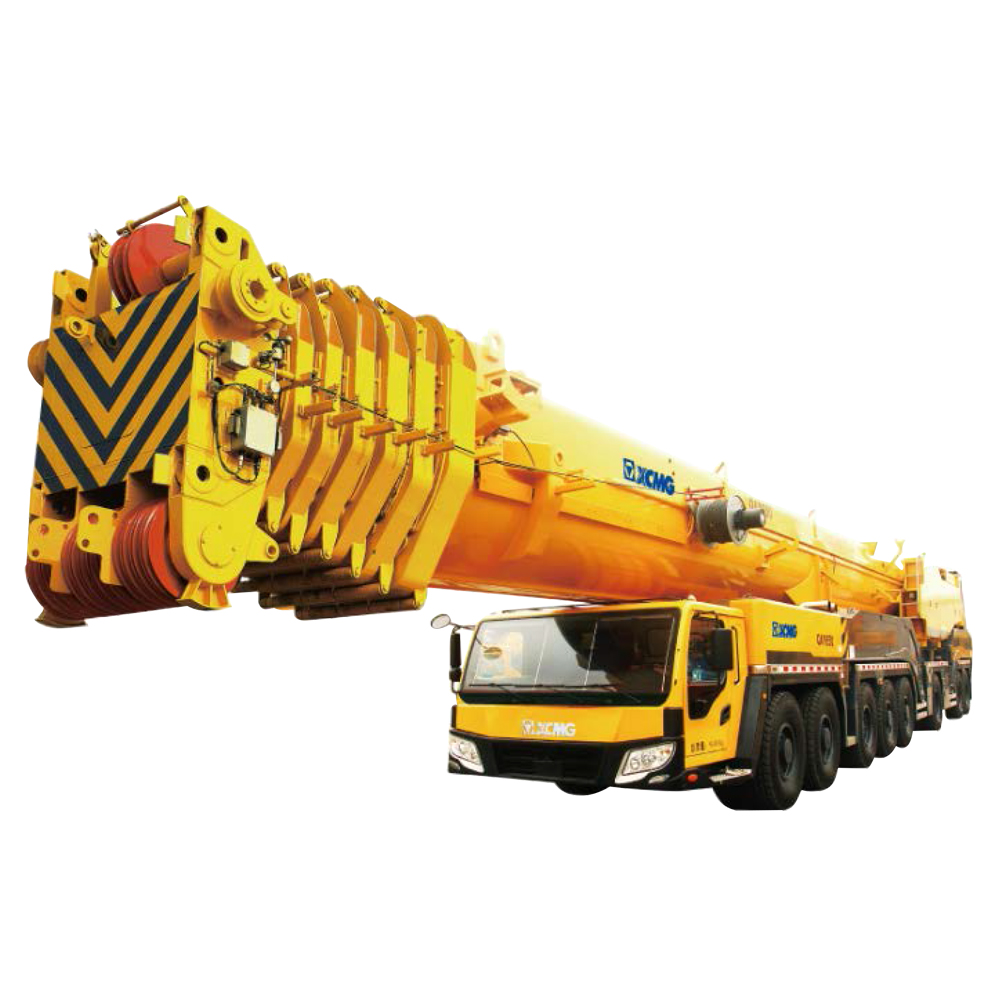

QAY650A All Terrain Crane
1The free positioning mechanism from four dimensions makes the operator's cab have wider visual field.
2Operator's work at height is safer, because the upper surface of boom sections is added with anti-sliders and two sides of boom are mounted with anchoring devices for attaching installation protection rope.
3All cover hood, neat and artistic. People-oriented design of ladder makes it easy to climb. Critical pivots have pins inserted or removed with hydraulic support, which is time-saving and labor-saving during the assembly.
4Magnetic filtration and overload protection technology effectivelyprotect hydraulic system from jamming, so as to ensure single cylinder pinning system is safe and reliable. Winch system pressure memory and anti-skidding function make the system safer.
5QAY650A All Terrain Truck Crane is designed for installation and maintenance of wind power equipment with capacity up to 2.0MW for the application in petrochemical projects and bridge loading. The crane is equipped with specialized chassis of 8 axles, and X-typeoutrigger structure. The integration of mechanical, electric and hydraulic technology serves to accurate full axle steering, together with comprehensive control of brake system, contributing to the excellent driving capacity.

XCMG Official QAY650A All Terrain Crane for sale


XCMG Official QAY650A All Terrain Crane for sale

XCMG Official QAY650A All Terrain Crane for sale


Technical Specifications

Main Technical Data Table in Travel Configuration

Category

hern

Unit

Parameter

Dimensions

Overall( length x width x height)

mm

22695x3000x4000

Wheel base

mm

1600/2100/1600/1600/3180/3580/1600





Weight

Max. permissible total weight

kg

94400



Axle load

1st and 2nd axle

kg

11680

3rd. 4th and 5th axle

kg

11680

6th,7th and 8th axle

kg

12000





Power

Superstructure engine

Model



OM906LA.E3A/1

Rated power/rotation speed

KW/(r/min)

205/2200

Max. output lorque/rotation speed

N.m(r/min)

1100/1200 ~ 1600



Model



OM502LA.E3B/1



Chassis engine

Rated power/rotation speed

KW/(r/min)

482.2/1800

Max. output torque/rotalion speed

N.m(r/min)

3000/1300











Travel

Travel speed

Max. travel speed

Km/h

N80

Min. steady travel speed

Km/h

W2

Min. turning diameter

m

W28

Min. around clearance

mm

330

Approach angle

14

Departure angle

35

Brakina distance (at 30 km/h)

m

W10

Max. grade ability

%

N37% (standard, non hydraulic axle) /N47% (optional, hydraulic axle)

Fuel consumption per 100km

L

110


Technical Specifications

Main Technical Data Table for Lifting Operation

CategoryItem                                                                                UnitParameter

Main Lifting Performance

Max. total rated lifting capacity

t

650

Min. rated working radius

m

3

Turning radius at turntabletail (at counterweight)

mm

7300

Max. load moment

Base boom

kN.m

19500

Fully-extended boom

kN.m

2630

Outrigger span

Longitudinal

m

11.1

Transverse

m

10

Hoist height

Base boom

m

19

Fully-extended boom

m

91

Fully-extended boom +jib

m

120

Fully-extended boom fluffing jib

m

130

Boom length

Base boom

m

18

Fully-extended boom

m

92

Fully-extended boom +jib

m

123.7

Fully-extended boom Huffing jib

m

130.7

Jib offset angle

o

02040

Working Speed

Time for boom raising

s

W150

Time for boom fully extending

s

W1350

Max. slewing speed

r/min

ml

Main winch hoisting speed (single line, 8th layer, no load)

m/min

>140

Speed of winch for luffing jibNo ,oad

m/min

140
