XCMG QT4-15 Automatic Hollow block interlocking paver making machine price
Specifications
- weight:8000.000kg
- Pallet Size:980x560mm
- Vibration :Table Vibration
- Rating Pressure:21Mpa
- Machine Dimensions:8600x2300x2600mm
- Gross Weight:About 8T
- Installation power of plant :70-80KW
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG QT4-15 Automatic Hollow block interlocking paver making machine price
QT4-15 Cement brick and paver making machine is a top-class small-capacity machine,which is designed to consistently produce high-quality bricks, industrial strength pavers, hollow blocks, decking blocks, retaining wall blocks and garden kerbs.
With the pallet size at 980x560mm or 850x560mm according to the size of concrete products to be made by customer.

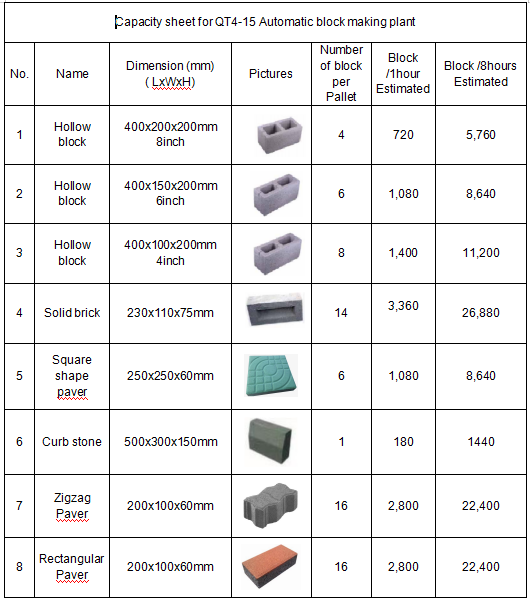

To make the 8inch hollow block,it is 4pcs per drop,around 5,700pcs per shift at 8 hours.
For making rectangular paver at 200x100x60mm,the output is 16pcs per drop,at 450 square meter per shift.
Technical Characteristics:
Hydraulic system:With“Yuken” brand single proportional valve and directional relief valves, the flow and pressure of each movement could be adjusted on touch panel,machine running smoothly without impact,through the double vane pump,different actions run simultaneously,greatly improve production efficiency.
PLC Control system:Combined with German automatic control technology and system, it adopts German Siemens PLC and Siemens touch screen control to make each action accurate and reliable, computer operation saves time and effort, easy operation with low failure rate.
Vibration system:With Static and Dynamic vibration table,it is designed to ensure the amplitude of the vibration table, so as to ensure the high density of concrete products. Adjustable vibration frequency/speed control via VSD (Variable Speed Drive) provides optimum compaction for different product types being manufactured, reducing machine maintenance costs and increasing productivity.
| Technical Specification for QT4-15 Automatic Block Making Machine | |
| Pallet Size: | 980x560mm |
| Vibration | Table Vibration |
| Rating Pressure | 21Mpa |
| Cycle time | 14-22s |
| Motors Power: | 41KW For Main forming machine parts only with material conveyor belt |
| Vibration motor | 2x7.5KW |
| Machine Dimensions: | 8600x2300x2600mm |
| Gross Weight: | About 8T |
| Raw Materials: | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes |
| Applied Products: | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
| Applied Fields: | widely used in buildings, road pavings, squares, gardens, landscaping, city constructions |
| Installation power of plant | 70-80KW |
| Actual Power consumption | 30-35kw per hour |
