XCMG Official QY30K5-I Truck Crane for sale

  • XCMG Official QY30K5-I Truck Crane for sale

Share:
XCMG Official QY30K5-I Truck Crane for sale
FOB for Cranes Reference Price:Get Latest Price
$134666.00-$134666.00 1 / EA (Min. Order)
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG Official QY30K5-I Truck Crane for sale
XCMG Official QY30K5-I Truck Crane for sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
Summary
  • Model Number:QY35K5-I
  • Brand Name:XCMG
  • Place of Origin:China
  • Span:Longitudinal5.85m/Lateral6.0m
  • Max. Lifting Height:47.7
  • Max. Lifting Load:30t
  • Rated Lifting Moment:1025kN.m
  • Rated Loading Capacity:30t
  • Application:Construction Industry
  • Certification:ISO9001/CE
Specifications
  • weight:32400.000kg
  • Condition:New
  • Moving Type:Wheel

XCMG Official QY30K5-I Truck Crane for saleXCMG Official QY30K5-I Truck Crane for sale

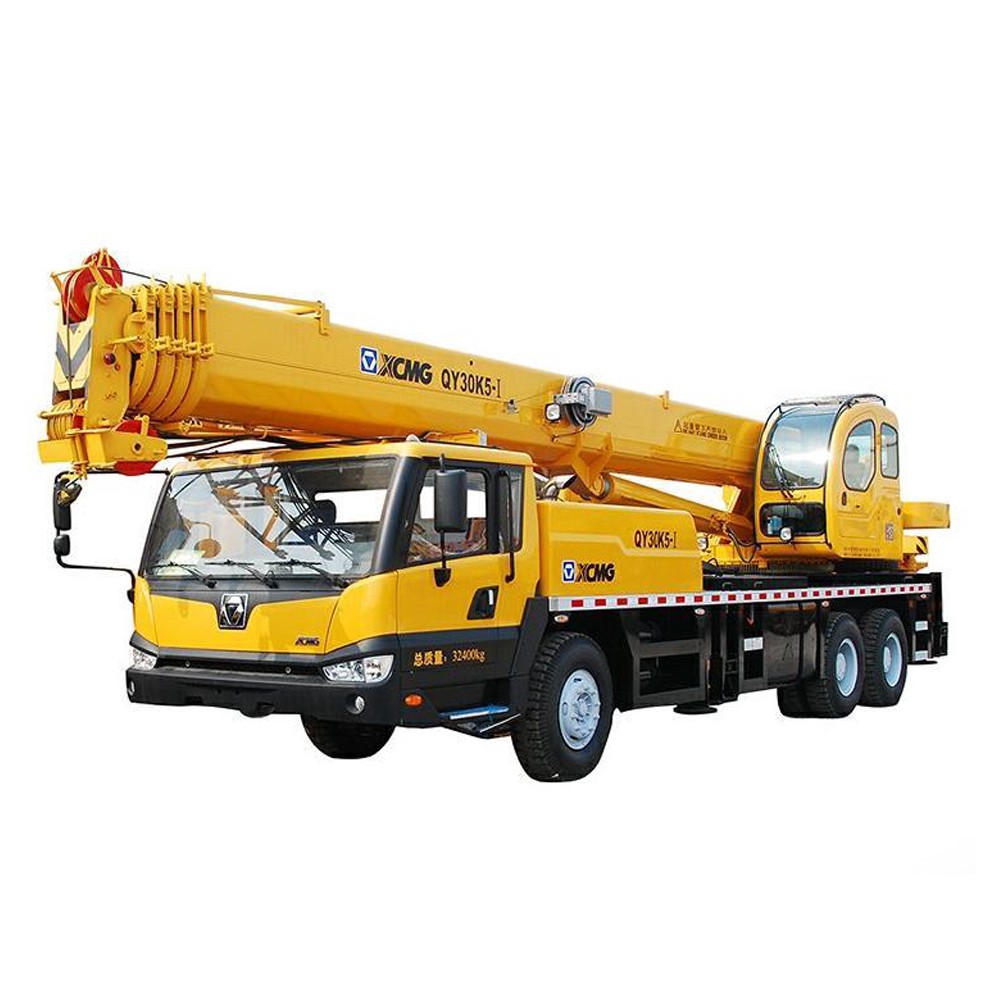

QY30K5-I Truck Crane
1.  Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity.
2.  Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
3.  Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.
4.  Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.
5.  Ferrule-type compression joints are used for pipeline, have features of reliable connection, better tightness and less leakage.

XCMG Official QY30K5-I Truck Crane for saleXCMG Official QY30K5-I Truck Crane for sale
XCMG Official QY30K5-I Truck Crane for sale

.Main Technical Data Table in Travel configuration

Description

Unit

Parameter value

Overall length

mm

12570

Overall width

mm

2500

Overall Height

mm

3390

Wheel Base

mm

5025+1350

Track

mm

2074/1834/1834

Total vehicle mass in travel configuration

kg

32400

Axle load

Front axle

kg

7600

Rear axle

24800

Engine Model

SC8DK280Q3

Engine rated power

kw/(r/min)

206/2200

Engine rated torque

N.m/(r/min)

1112/1400

Max. travel speed

km/h

80

Min. turning diameter

m

22

Min. ground clearance

mm

291

Max. grade ability

%

40

Approach angle

°

19

Departure angle

°

13

Braking distance (at 30 km/h, full load )

m

10

Oil consumption per 100km

L

40

Exterior noise level during acceleration traveling

dB (A)

88

Noise level at seated position

dB (A)

90











































.Main Technical Data Table for Lifting Operation

Max. total rated lifting capacity

t

30

Min. rated working radius

m

3

Turning radius at turntable tail

mm

3065

Max. load moment

Base boom

KN.m

1025

Fully-extended boom

630

Outrigger span

Longitudinal

m

5.85

Lateral

6.0

Hoist height

Base boom

m

10.7

Fully-extended boom

40.4

Fully-extended boom + Jib

47.7

Boom length

Base boom

m

10.6

Fully-extended boom

40.4

Fully-extended boom + Jib

48.7

Jib offset angle

°

0, 15, 30

Time for boom raising

s

68

Time for boom extending fully

s

150

Time for boom retracting fully

s

140

Max. slewing speed

r/min

2.5

Outrigger extending and retracting time

Outrigger

beam

Extending

Simultaneously

s

35

Retracting

Simultaneously

30

Outrigger

jack

Extending

Simultaneously

40

Retracting

Simultaneously

35

Hoisting speed

(single line

Main winch

Full load

m/min

75

No load

120

Auxiliary winch

Full load

75

No load

120

Exterior noise level

dB (A)

118

Noise level at seated position

dB (A)

90
