Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):10530x5100x28572
- Weight:132000kg
- Power(W):400
- Voltage:300
- Model Number:XR400D
- Brand Name:XCMG
- Place of Origin:XuZhou,China
- Power Type:Diesel
- Type:Rotary Drilling Rig
Specifications
- weight:13200.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

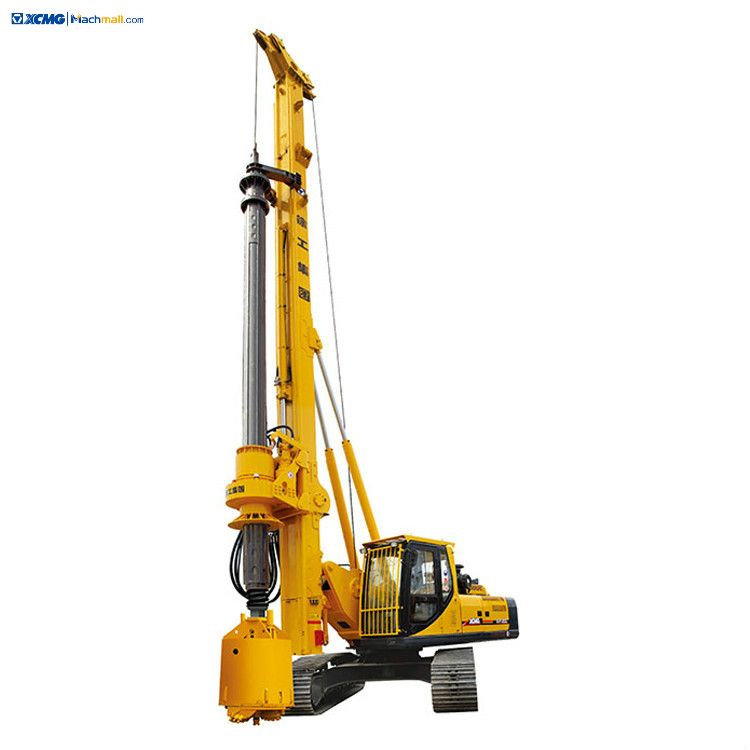

XCMG 400KN Brand New Rotary Drilling Rig XR400D Machine.
XR Series Rotary Drilling Rig stands for our company's achievement in many years' development and researches on piling machine, adopting the advanced technology, both at home and abroad. With our company's powerful machinery manufacturing capacity, it is specially designed to drill the pile hole with the big diameter and into hard—layers, fitting for layer conditions in most areas.
XR series is an ideal equipment widely applied in piling constructions, featuring reasonable design, compact structure, convenient operation, high reliability, powerful performance and wide application.
Performance Characteristics:
* It adopts dedicated hydraulic retractable crawler chassis and heavy slewing bearing and has high stability;
* It adopts the luffing mechanism of large triangle form to ensure the stability of construction of big holes and deep piles in hard formation;
* It adopts the front—located single—rope main winch structure to greatly prolong the service life of steel wire rope and lower the use cost;
* Cummins electric control turbo—supercharged engine is used. It complies with Euro Ill emission standard. ln addition, it has strong power, which is sufficient to satisfy the construction on the plateau. Its noise is up to the national standard;
* Using full electronic control technology of CAN bus, improves the reliability of the whole vehicle and simplify hydraulic line, fully reflects the people, machine, electricity and liquid integration;
* Normal mode and entering—rock mode of unit head is available for operation in soil and rock to improve the construction efficiency;
* Winch—pressurized and sleeve—driven functions are available for selection to satisfy various needs of the users;
* It is equipped with a centralized lubrication system as standard configuration; maintenance is easy.

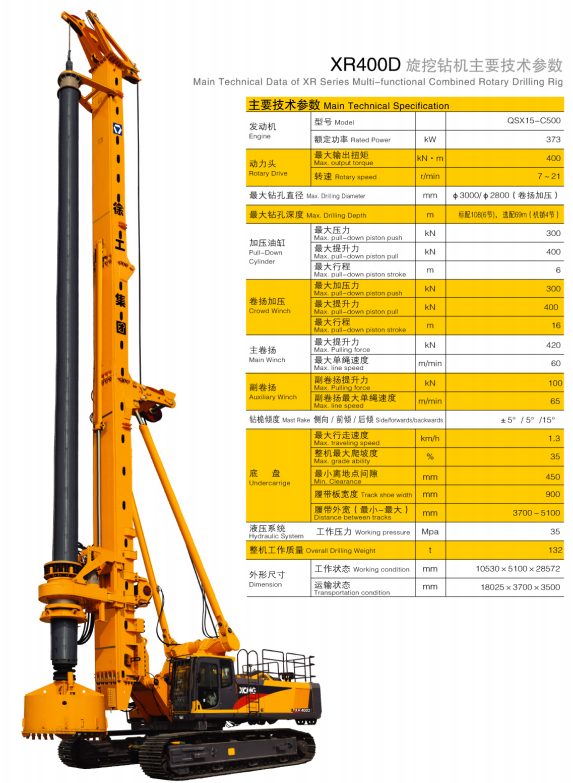

Parameter | Unit | XR400D |
Max. Drilling Diameter | ||
Uncased | (mm) | φ3000 |
Cased | (mm) | φ2800 |
Max. Drilling Depth | (m) | 110 |
Dimension | ||
Working condition L × W × H | (mm) | 10,530×5,100×28,572 |
Transportation condition L × W × H | (mm) | 18,025×3,700×3,500 |
Overall Drilling Weight | (t) | 132 |
Engine | ||
Model | - | QSX15-C500 |
Rated Power | (kW) | 373/2100 |
Hydraulic System | ||
Working pressure | (MPa) | 35 |
Rotary Drive | ||
Max. output torque | (kN.m) | 400 |
Rotary speed | (r/min) | 5.5~20 |
Spin off speed | (r/min) | - |
Pull-Down Cylinder | ||
Max. pull-down piston push | (kN) | 300 |
Max. pull-down piston pull | (kN) | 400 |
Max. pull-down piston stroke | (mm) | 6000 |
Crowd Winch | ||
Max. pull-down piston push | (kN) | 300 |
Max. pull-down piston pull | (kN) | 400 |
Max. pull-down piston stroke | (mm) | 16000 |
Main Winch | ||
Max. pulling force | (kN) | 420 |
Max. single-rope speed | (m/min) | 60 |
Diameter of the steel wire rope | (mm) | 40 |
Auxiliary Winch | ||
Max. Pulling force | (kN) | 100 |
Max. single-rope speed | (m/min) | 65 |
Diameter of the steel wire rope | (mm) | 20 |
Drilling mast | ||
Left/right inclination of mast | (°) | 42495 |
Front inclination of mast | (°) | 5 |
Rotary table slewing angle | (°) | 360 |
Traveling | ||
Max. traveling speed | (km/h) | 1.3 |
Max. grade ability | (%) | 35 |
Crawler | ||
Track shoe width | (mm) | 900 |
Distance between tracks | (mm) | 3700~5100 |
The length of crawler | (mm) | 5600 |
Average ground pressure | (kPa) | 124 |
