- Model Number:SG20
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Size:6130*1980*2650mm
- Max Work Height:16m
- Fuel Type:Diesel
- Emission Standard:National Ⅴ
- Tank Capacity:2200kg
- Horsepower:<150hp
- Type:Tanker
- Drive Wheel:4x2
- Certification:CE/ISO9001
- weight:6500.000kg
- Condition:New
- Moving Type:Other
- Max.travel speed:90km/h
- Maximum climbing ability:30%
2ton 4x2 water tank fire truck SG20 china mini water tank
fire fighting truck.

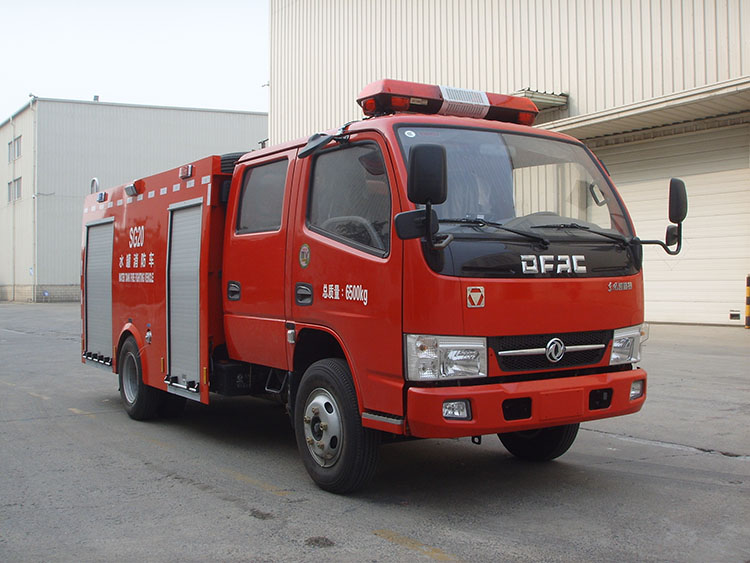

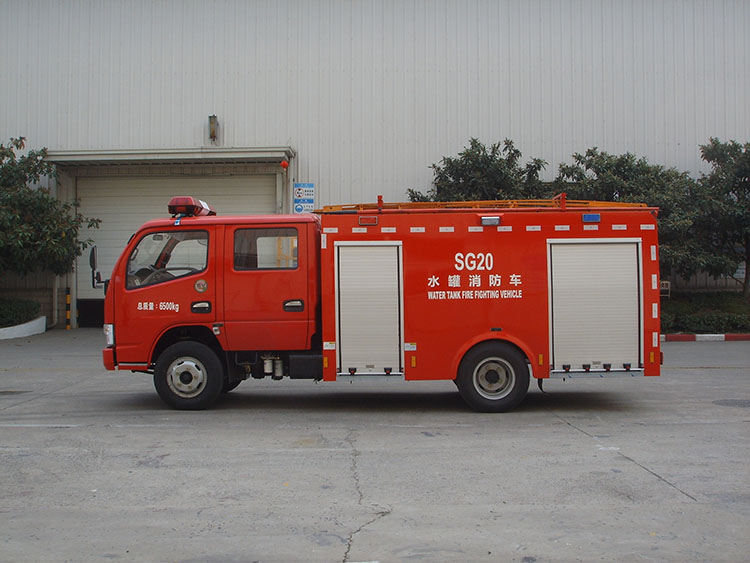

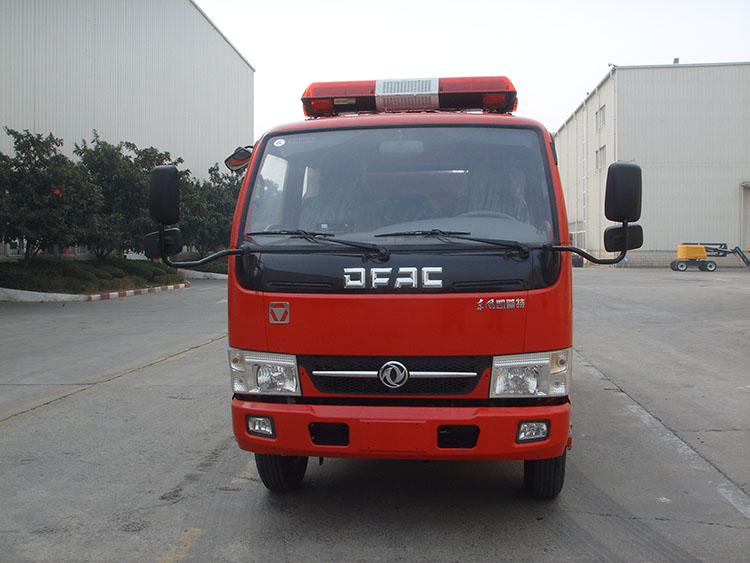

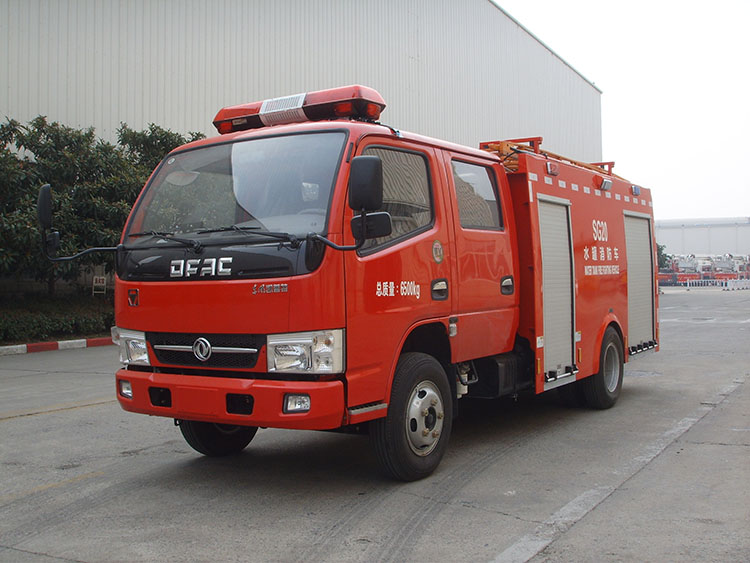

The SG20 water tank fire truck is a miniature fire truck
developed by XCMG, which is positioned to extinguish fires in towns,
communities and rural areas.
The vehicle has a short wheelbase, narrow body,
maneuverability, flexibility, and good passability. It can adapt to complex
urban and rural roads and traffic conditions. It is the first choice for
miniature fire station configuration.
Product advantages and highlights:
1. Strong single-vehicle combat capability
The Dongfeng chassis with double-row cab and 5 crew
members is suitable for centralized delivery of fire fighting formations.
2. Diverse functions and easy operation
With fire-fighting and emergency rescue functions, it can
not only meet the fire and rescue needs of towns, rural areas and households,
but also meet common emergency rescue operations.
3. Strong corrosion resistance
The whole car is made of PP material, so there will be no
corrosion.
4. High cost performance
Adapt to the purchasing power of the township.
|
Item |
Parameter |
|
|
Overall dimensions |
Length |
6130mm |
|
Width |
1980mm |
|
|
Height |
2650mm |
|
|
Axle base |
3308mm |
|
|
Wheelbase |
1503/1494mm |
|
|
Front/rear suspension |
1040/1782mm |
|
|
Front/rear extension |
—— |
|
|
Maximum speed |
>90km/h |
|
|
Minimum turning diameter |
16m |
|
|
Braking length (full load, initial braking speed 30 km/h) |
10m |
|
|
Approach Angle/Departure Angle |
14/13° |
|
|
Maximum climbing ability |
30% |
|
|
Rated fire extinguishing agent |
Water |
2200kg |
|
Full load weight |
||
|
Curb weight |
Total weight |
3916kg |
|
Maximum allowable value |
Total weight |
6500kg |
|
Total weight |
||
|
Type |
EQ1070DJ3BDF |
|
|
Type |
II |
|
|
Driving type |
4×2 |
|
|
Manufacturer |
Dongfeng |
|
|
Engine |
Fuel type |
Diesel |
|
Power kw |
85 |
|
|
Emission level |
National 5 |
|
|
Steel spring number |
6/6+5 |
|
|
Tire size |
7.00R16 |
|
|
Number of tires (excluding spare tires) |
6 |
|
|
Passengers allowed in the cab |
2+3 |
|
