- Summary
- Details
- Model Number:SG80F2
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Size:8510*2500*3500mm
- Max Work Height:17m
- Fuel Type:Diesel
- Emission Standard:National Ⅴ
- Tank Capacity:7800kg
- Horsepower:251 - 350hp
- Transmission:Manual
- Type:Tanker
- Drive Wheel:4x2
- Certification:CE/ISO9001
- Product Name:G5F915C301EA1A
- Display online time:2020-10-23
- weight:19000.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:other
- Maximum speed:90km/h
- Wheelbase:2035/1844mm

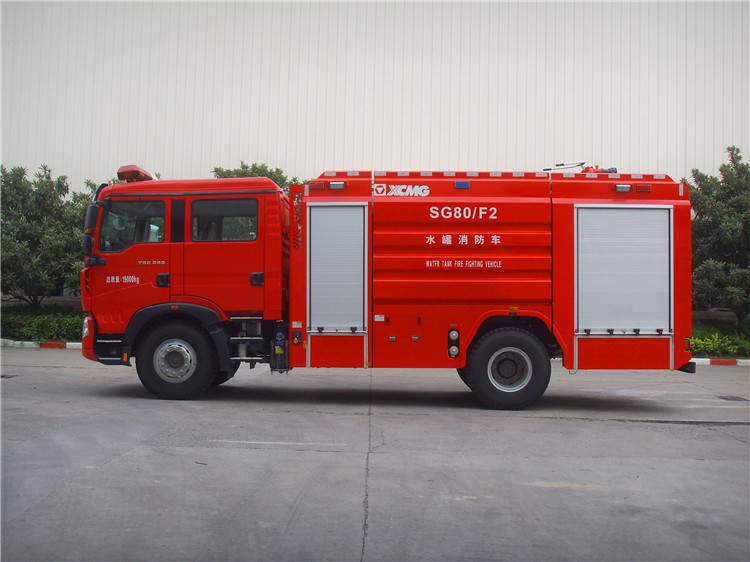

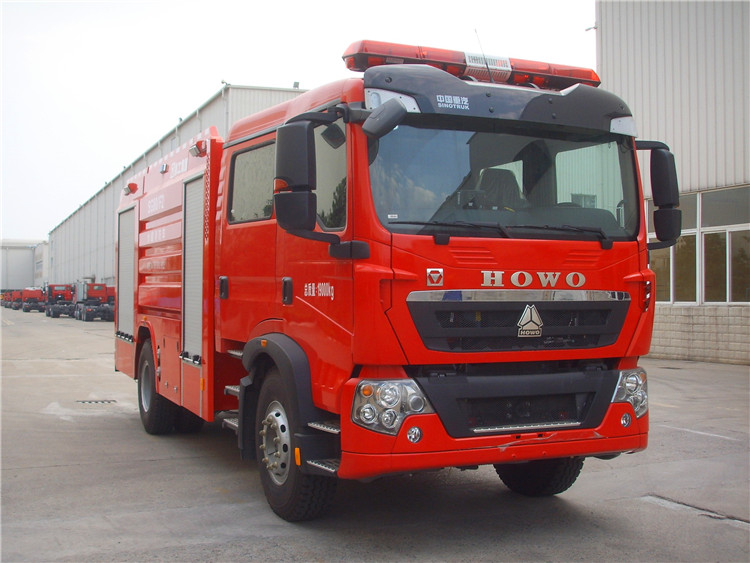

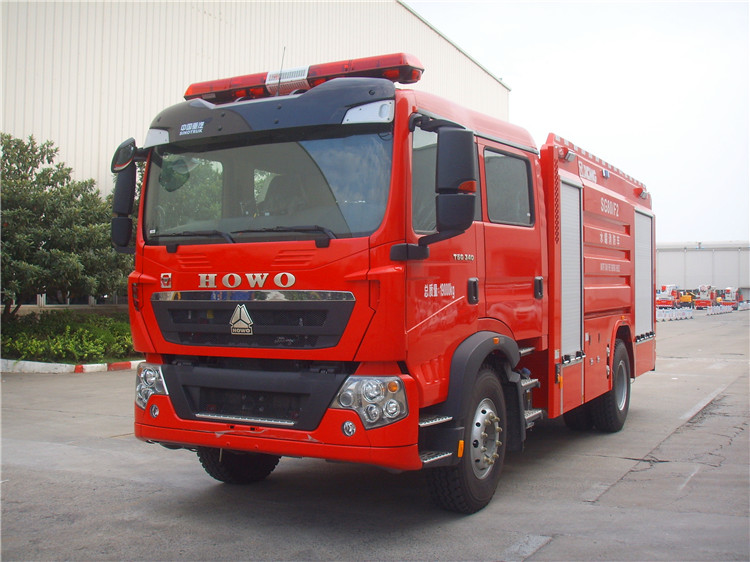

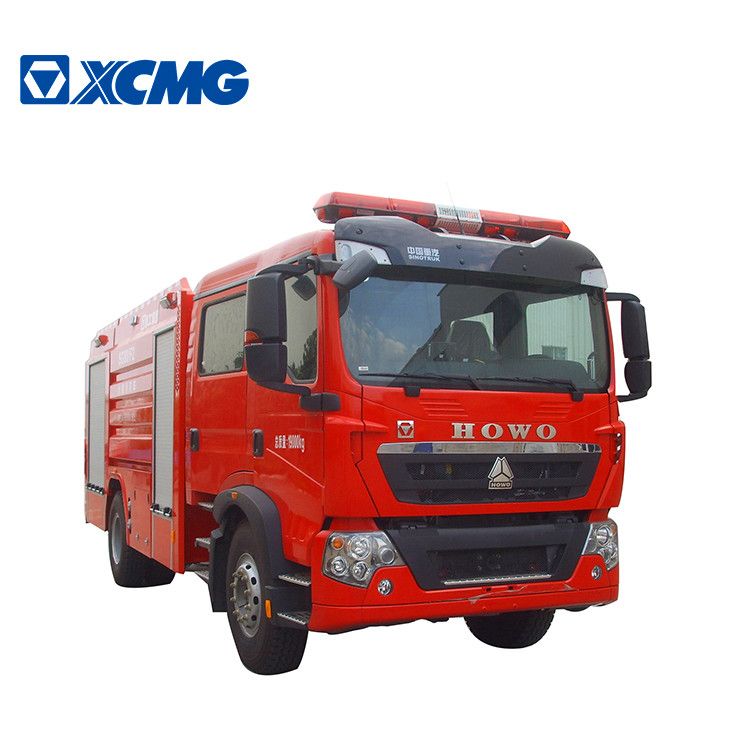

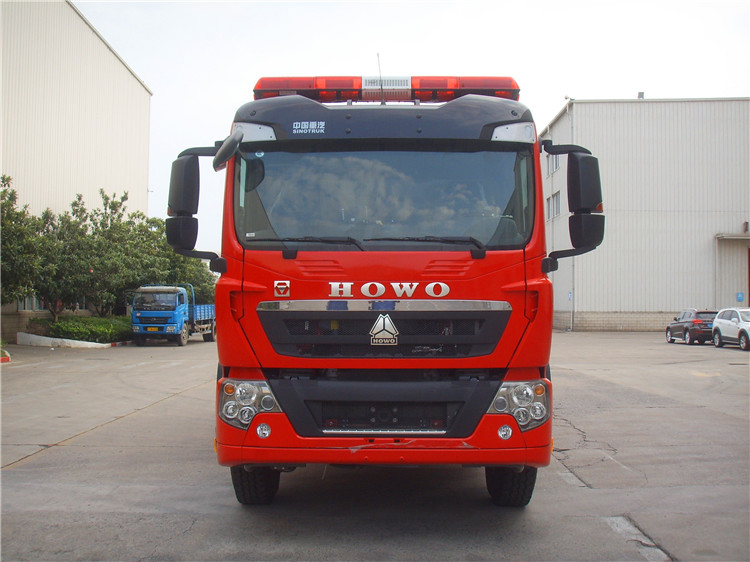

8 ton 4x2 fire truck SG80F2 China water tank rescue fire
fighting truck with HOWO chassis.
SG80F2 fire truck is an 8-ton mobility water tank fire
truck developed by XCMG. It is widely used in urban construction, residential
building and shopping centers and other construction fire fighting, is the
first choice of outstanding performance vehicles.
1.Strong single-vehicle operational capability
The heavy truck T5 chassis with double-row cab has strong
power performance, safe and reliable quality, which can carry 6 persons and is
suitable for marshaling fire fighting.
2. Fire control system is convenient and efficient, and
has high safety
Fire system operation is designed to be humanized that
making the operation convenient and fast.
3. Security protection settings and high intelligence
The vehicle adopts a variety of safety protection devices
to ensure that driving, rescue, and firefighting are safe and reliable. With
details considered, multilayer storage compartment structures use light bars to
realize multi-layer space lighting to meet usage requirements.
|
Project |
Parameter |
||
|
Dimension Parameters |
Overall dimensions |
Length |
8510 |
|
Width |
2500 |
||
|
Height |
3500 |
||
|
Axle base(mm) |
4500 |
||
|
Wheelbase(mm) |
2035/1844 |
||
|
Front/rear
suspension(mm) |
1430/2580 |
||
|
Front/rear extension(m) |
—— |
||
|
Driving Parameters |
Maximum
speed(km/h) |
>90 |
|
|
Minimum turning diameter(m) |
17 |
||
|
Braking length
(full load, initial braking speed 30 km/h) m |
10 |
||
|
Approach Angle/Departure Angle |
14/13 |
||
|
Maximum
climbing ability (%) |
25 |
||
|
Quality Parameters |
Rated fire extinguishing agent |
Water(kg) |
7800 |
|
Full load
weight |
|||
|
Curb weight |
Total weight(kg) |
11000 |
|
|
Maximum
allowable value |
Total
weight(kg) |
19000 |
|
|
Total weight |
|||
|
Chassis Piece Parameter |
Type |
ZZ5207TXFV471GE5 |
|
|
Type |
II |
||
|
Driving type |
4×2 |
||
|
Manufacturer |
China Heavy Truck |
||
|
Engine |
Type |
MC07.34-50 |
|
|
Fuel type |
Diesel |
||
|
Power(kw) |
248 |
||
|
Emission level |
Nationa |
||
|
Manufacturer |
China Heavy
Truck |
||
|
Steel spring number |
3.5 |
||
|
Tire size |
12.00R20 |
||
|
Number of tires (excluding spare tires) |
6 |
||
|
Passengers
allowed in the cab |
2+4 |
||
