XCMG Official 90 Ton Mobile Truck Mounted Crane SQZ4500 for Sale

  • XCMG Official 90 Ton Mobile Truck Mounted Crane SQZ4500 for Sale
  • XCMG Official 90 Ton Mobile Truck Mounted Crane SQZ4500 for Sale
  • XCMG Official 90 Ton Mobile Truck Mounted Crane SQZ4500 for Sale
  • XCMG Official 90 Ton Mobile Truck Mounted Crane SQZ4500 for Sale
  • XCMG Official 90 Ton Mobile Truck Mounted Crane SQZ4500 for Sale
  • XCMG Official 90 Ton Mobile Truck Mounted Crane SQZ4500 for Sale

Share:
XCMG Official 90 Ton Mobile Truck Mounted Crane SQZ4500 for Sale
FOB for Cranes Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Model: SQZ4500
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG Official 90 Ton Mobile Truck Mounted Crane SQZ4500 for Sale
XCMG Official 90 Ton Mobile Truck Mounted Crane SQZ4500 for Sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
Summary
  • Certification:CE/ISO9001
  • Model Number:SQZ4500
  • Brand Name:XCMG
  • Place of Origin:Jiangsu,China
  • Span:7720m
  • Max. Lifting Height:26.5m
  • Max. Lifting Load:92500kg
  • Rated Lifting Moment:425.5t•m
  • Application:Construction
Details
  • weight:53000.000kg
  • Condition:New
  • Moving Type:Wheel

XCMG Official 90 Ton Mobile Truck Mounted Crane SQZ4500 for Sale

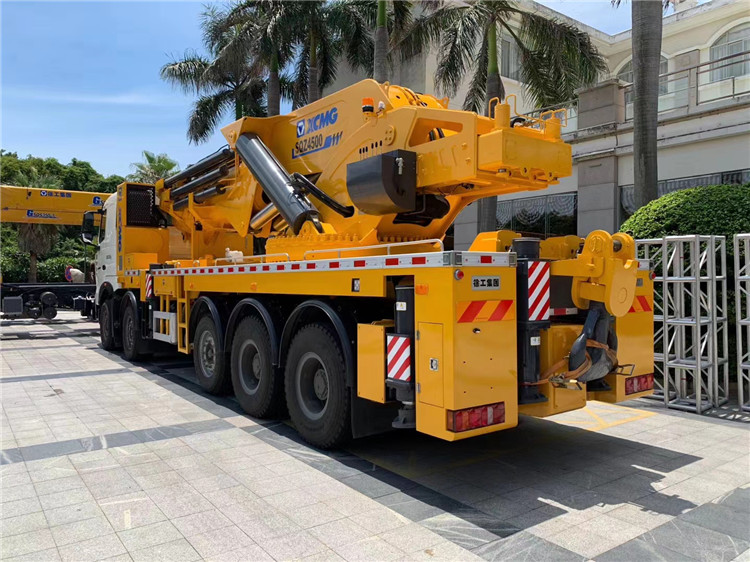

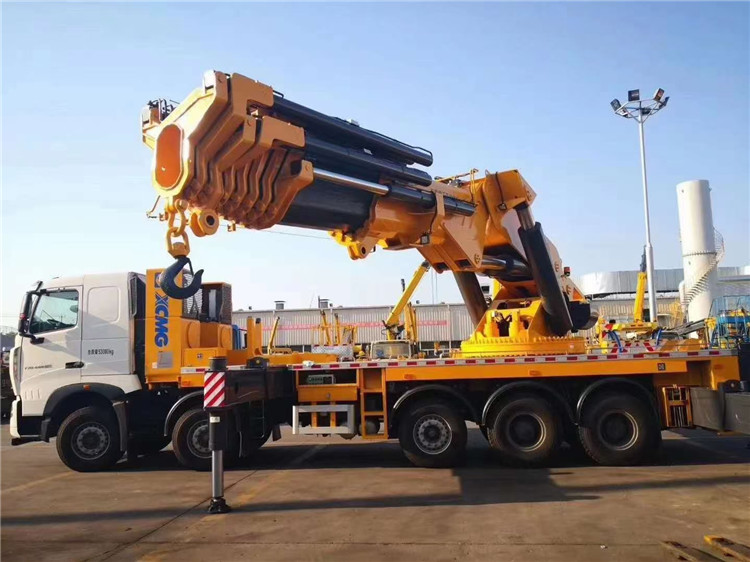

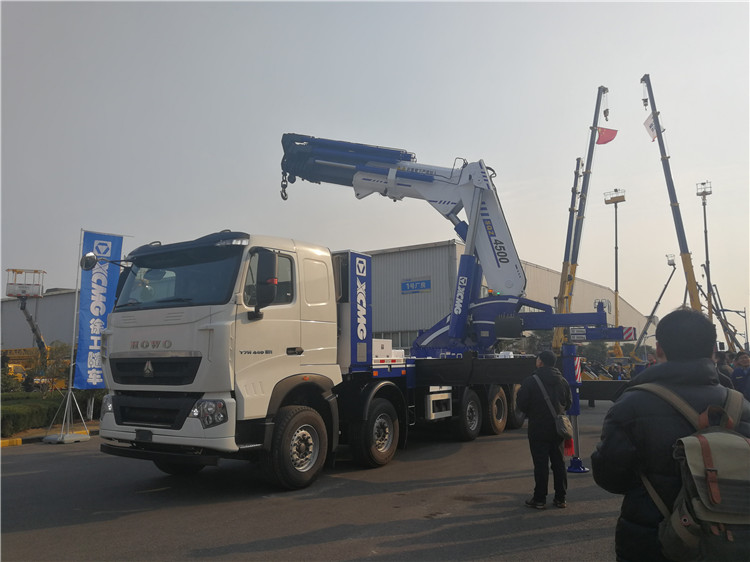

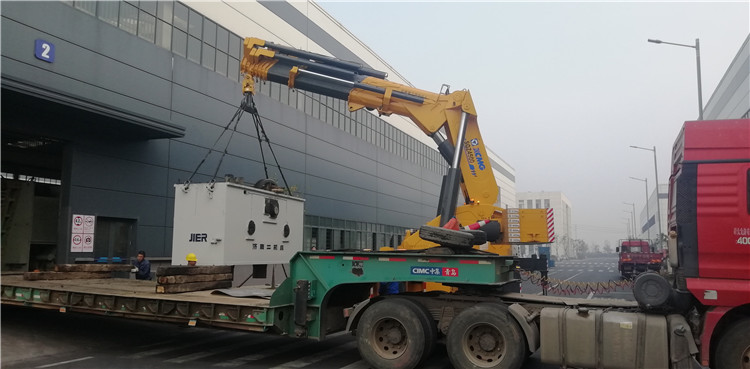

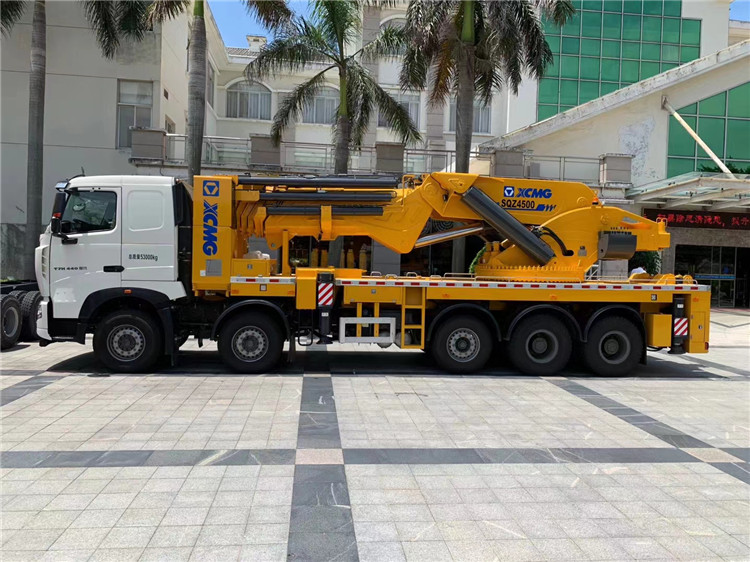

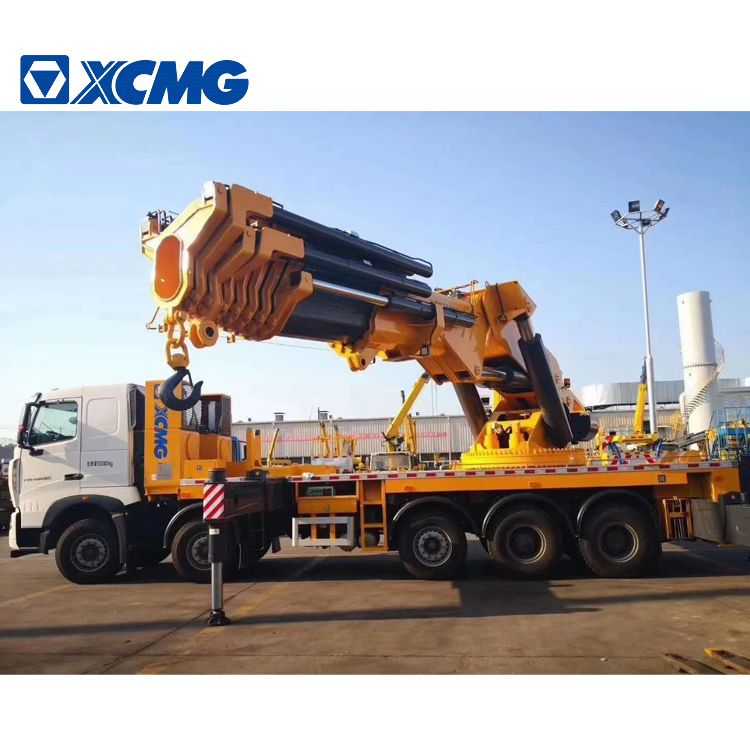

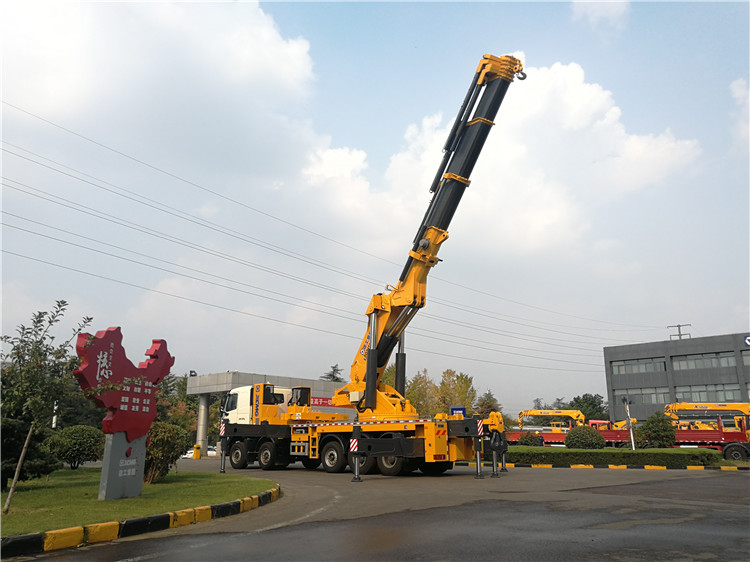

XCMG Official 90 Ton Mobile Truck Mounted Crane SQZ4500.



1. The dodecagonal arm section has better anti-buckling performance and stronger lifting capacity;



2. One-piece square box sub-frame, with better torsion and bending resistance;



3. The integrated design of the turntable and the counterweight square box has better structural strength and rigidity to ensure the stable expansion and contraction of the counterweight;



4. The standard 20t balance weight, the crane can realize self-loading and unloading, the loading and unloading process is simple and fast;



5. The front and rear outriggers on the side are all double-stage large-span outriggers, which improves the stability of the whole vehicle and makes the side lifting ability stronger;



6. The structure of the whole machine is reasonably arranged, and the weight is distributed to each axle. The appearance is compact and beautiful, and each bridge is not overloaded, which ensures that the crane can pass smoothly on high speed;



7. The whole machine has an ultra-low design, and the height is less than 3.6m, which can smoothly enter various workshops and workshops;



8. Adopt double pump confluence technology and flow regeneration technology to increase luffing and boom speed, and improve work efficiency;



9. Two high-power radiators are equipped as standard to ensure that the hydraulic oil temperature is not too high during long-term continuous operation of the crane;



10. The hydraulic proportional valve on the vehicle has good micro-motion performance and can perform compound actions with good controllability. It is equipped with a wireless remote control to improve the operator's vision and operating comfort;



11. Equipped with an anti-overturning control system to detect the status of each outrigger in real time to prevent the crane from overturning due to overload and improve operational safety;



12. Standard L-HM (CY) XCMG special wide temperature hydraulic oil can be used in winter and summer.

XCMG Official 90 Ton Mobile Truck Mounted Crane SQZ4500 for Sale

Project

Unit

SQZ4500

Maximum lifting moment

t•m

425.5

Maximum lifting mass

kg

92500

Maximum working range

m

23.9

Lifting height

m

26.5

Luffing range

°

076°

Rotation angle

°

Full rotation

Outrigger span

Front leg

mm

7720

Back leg

mm

7700

Back leg

mm

3860From the center of rotation

Dimensions (length, width and height)

mm

12093×2550×3550

Maximum total mass

kg

53000
