After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG Official TY160 Bulldozers for sale
XCMG Official TY160 Bulldozers for sale
Quantity:
- + /EA

Content:

Or choose from these questions:
What is the best price you can offer?
Do you support customization?
What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

Specs & Compare
Details
Specs & Compare
Select 3 models for comparison
Dimension(Long * Breadth * High)
Machine Weight
Model Number
Brand Name
Place of Origin
Certification
Dimension(L*W*H)
Weight
Power(W)
Voltage
Power Type
Type
Engineering & Construction Machinery
--
--
TY160
XCMG
China
CE/ISO9001
4996×3416×3165mm
17800kg
122kW
24V
Electric
Bulldozers
+   Add a Product
+   Add a Product

Summary

  • Model Number:TY160
  • Brand Name:XCMG
  • Place of Origin:China
  • Certification:CE/ISO9001
  • Dimension(L*W*H):4996×3416×3165mm
  • Weight:17800kg
  • Power(W):122kW
  • Voltage:24V
  • Power Type:Electric
  • Type:Bulldozers

Specifications

  • weight:17800.000kg
  • Condition:New
  • Moving Type:Crawler
  • Blade type:Straight tilt blade
  • Width * Height:3416mm×1150mm
  • Max.lift above ground:1090mm
  • Max.drop below ground:530mm
  • Pitch adjustment:55°
  • Max.Tiit:400mm
  • Blacle capacity:4.5m³
  • Max. working pressure of hydraulic system:14Mpa
  • Rated speed:1850r/min
  • Min fuel consumption ratio:208g/kw·h
  • Track width:510mm

Packaging & Shipping

  • Delivery Lead Time:7 days for ready goods
  • Minimum Order:1 Piece
  • Supply Ability:10,000 Set/ Sets per Month
  • Total Quantity In Stock:Over 5000
  • Delivery Port:Any Port In China


XCMG Official TY160 Bulldozers for sale


XCMG Official TY160 Bulldozers for sale



XCMG Official TY160 Bulldozers for sale



XCMG Official TY160 Bulldozers for sale



XCMG Official TY160 Bulldozers for sale


XCMG Official TY160 Bulldozers for sale


XCMG Official TY160 Bulldozers for sale


XCMG Official TY160 Bulldozers for sale

WORK EQUIPMENT

Blade type

Straight tilt blade

Angle

U dozer

Width x Height (mm)

3416x1150

4019x1050

3400x1150

Max.lift above ground (mm)

1090

1110

1090

Max.drop below ground (mm)

530

530

530

Pitch adjustment (° )

55

55

55

Max. Tilt (mm)

400

/

400

Blade capacity(m3)

4.5

4.5

5.6

Ripper

Type

Three Teeth

Max. dig below ground(mm)

572

Max. lift above ground (mm)

492

ENGINE

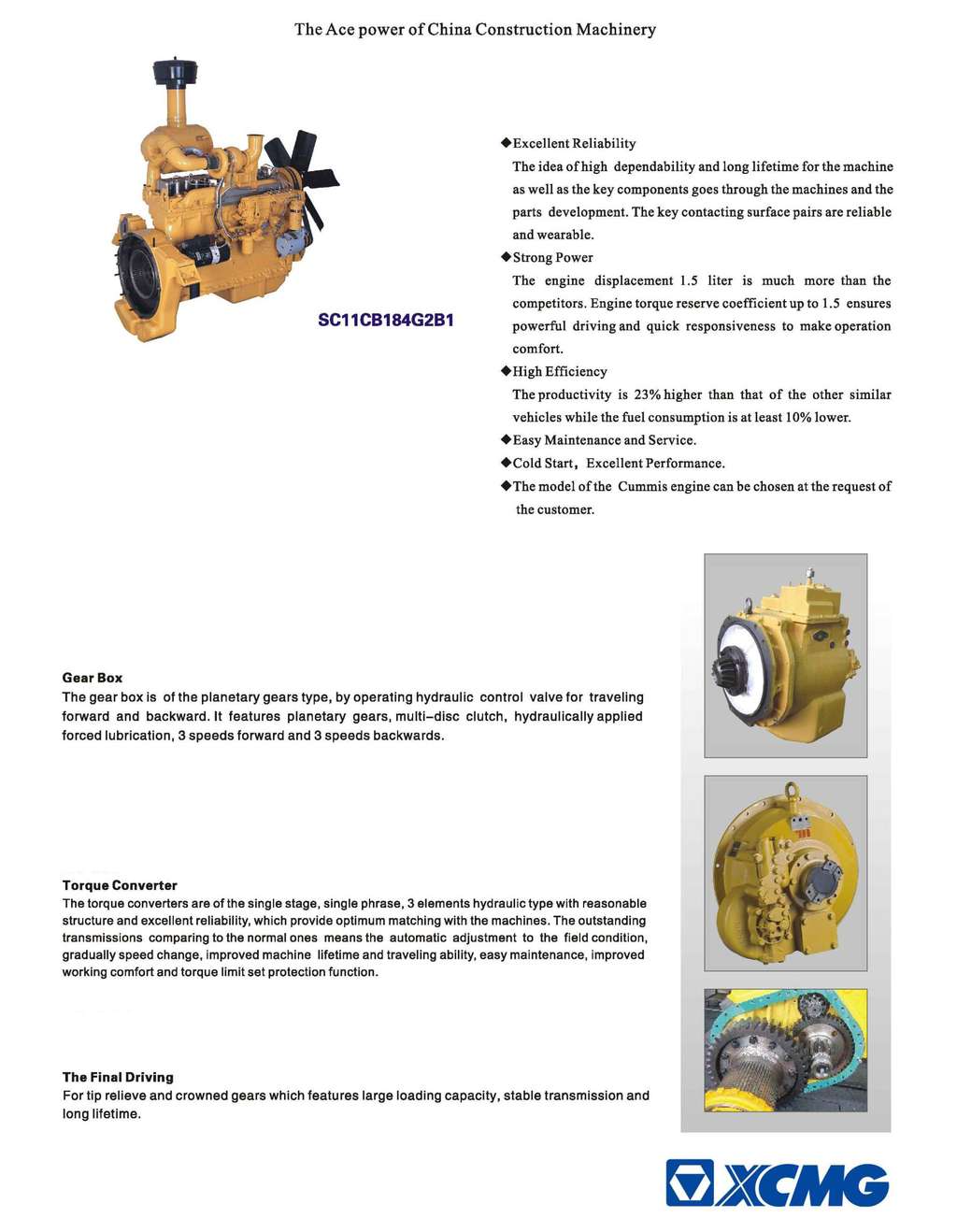

Model

SC11CB184G2B1

Type

Straight vertical,four-stroke, water cooling, direct injection type

Flywheel power(kW)

122

Rated speedr/min

1850

Number of cylinders-bore x stroke (mm)

6-121x152

Starting method

Electric startingmotor 24V,7.5kW

Battery

24V(12Vx2)

Air cleaner

Dry horizontal type with precleaner

Min fuel consumption ratio(min)

208

TRANSMISSION

Torque converter

3-elementsingle-stage, single-phase

Gearbox

Hand-operated,Hydraulic shift, Planetary gear, muliple-disc clutch,forced lubrication by gearpump

Bevel gear

Helical bevel gear, Splash lubricated

Steering clutch

Wet, multiple-disc clutch, spring loaded, Hand-operated with booster and hydraulic-released

steering brake

Wet ,band brake, operatedwith hydraulic booster

Final drive

Spur Gear,One Reduction,Interplanetary Gear, one Reduction,splash Lubricated

TRACK

Type

Sealed andlubricated single grouser or sealed single grouser

Track pitch (mm)

203.2

Track width (mm)

510

Number of track shoes(each side)

37

Length of track on ground (mm)

2430

Track gauge (mm)

1880

TRAVELSPEED(km/h)

1st

2nd

3rd

Forward

3.8

6.6

10.6

Reverse

4.9

8.5

13.6

HYDRAULIC SYSTEM OF WORK EQUIPMENT

Working pressure (Mpa)

14

Rated flow (L/min) (2000r/min)

243

Pump

gear pump

Control valve

Hand-operated, sliding type

Cylinder, Bore x Rod x Stroke (mm)

Φ110xΦ65x1026

UNDER CARRIAGE

Sprocket

Segmented

No. of carrier roller (each side)

2

No. of track rollers (each side)

6(4 Single, 2double)

Track tension

Hydraulic-adjusted

Floating seals are used in all sprockets, track rollers, carrier rollers and front idlers


WORK EQUIPMENT

Blade type

Straight tilt blade

Angle

U dozer

Folded blade

Width x Height (mm)

3416x1150

3400x1150

工作:4019x1050

运输:2995x1050

Max.lift above ground (mm)

1090

1110

1090

1130

Max.drop below ground (mm)

530

530

530

530

Pitch adjustment (° )

55

55

55

55

Max. Tilt (mm)

400

/

400

400

Blade capacity(m3)

4.5

4.5

5.6

4.5

Ripper

Type

Three Teeth

Max. dig below ground(mm)

572

Max. lift above ground (mm)

492

Weight(kg)

1700

ENGINE

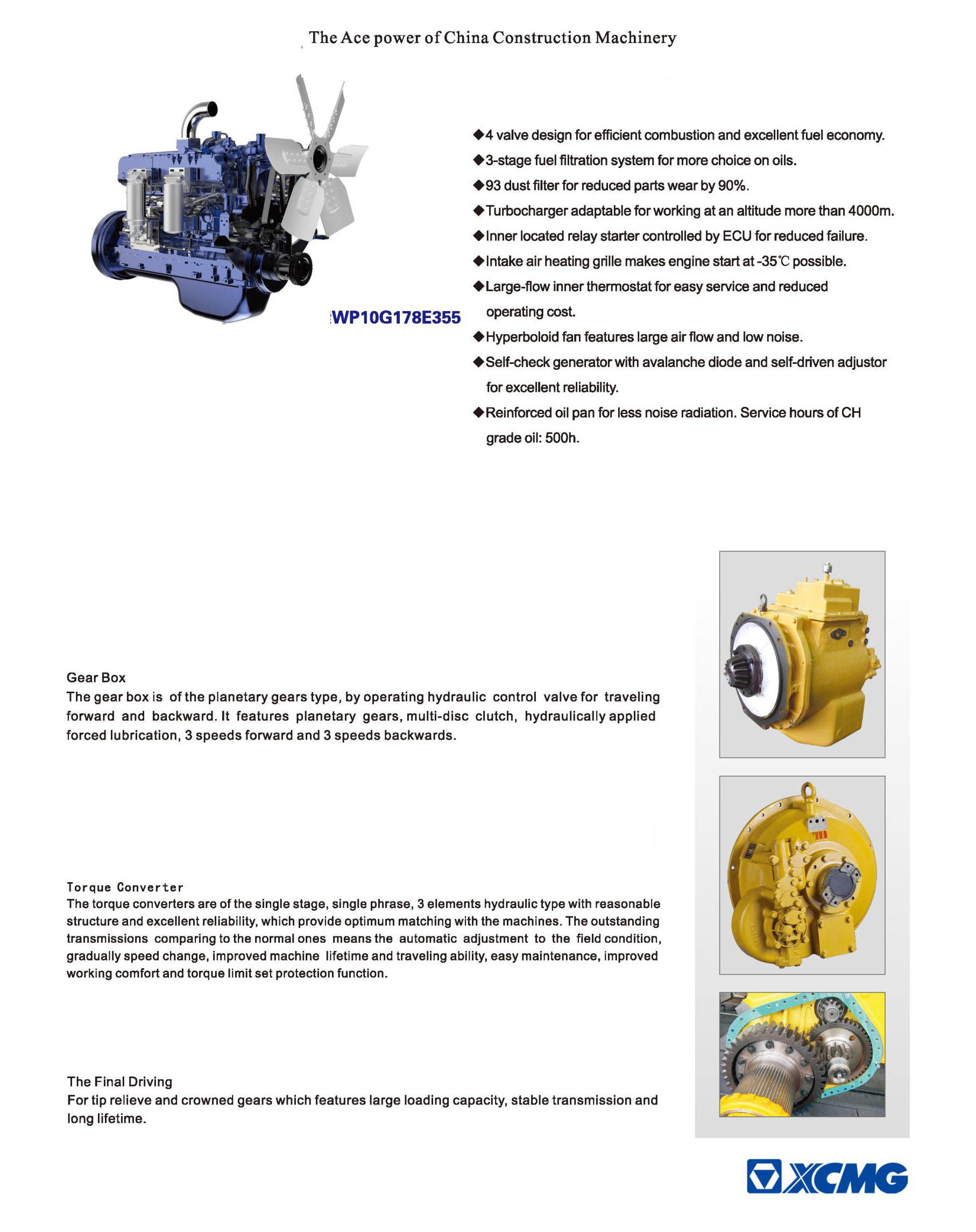

Model

WP10G178E355

Type

Straight vertical,four-stroke, water cooling, direct injection type

Flywheel power(kW)

121

Rated powerr/min

131

Rated speedr/min

1850

Number of cylinders-bore x stroke (mm)

6-126x130

Starting method

Electric starting motor 24V,5.5kW

Battery

24V(12Vx2)

Air cleaner

Dry type,radial seal 93 dust filter configuration

Min fuel consumption ratio(min)

191.2

TRANSMISSION

Torque converter

3-elementsingle-stage, single-phase

Gearbox

Hand-operated,Hydraulic shift, Planetary gear, muliple-disc clutch,forced lubrication by gearpump

Bevel gear

Helical bevel gear, Splash lubricated

Steering clutch

Wet, multiple-disc clutch, spring loaded, Hand-operated with booster and hydraulic-released

steering brake

Wet ,band brake, operatedwith hydraulic booster

Final drive

Spur Gear,One Reduction,Interplanetary Gear, one Reduction,splash Lubricated

TRACK

Type

Sealed andlubricated single grouser or sealed single grouser

Track pitch (mm)

203.2

Track width (mm)

510

Number of track shoes(each side)

37

Length of track on ground (mm)

2430

Track gauge (mm)

1880

TRAVELSPEED(km/h)

1st

2nd

3rd

Forward

3.8

6.6

10.6

Reverse

4.9

8.5

13.6

HYDRAULIC SYSTEM OF WORK EQUIPMENT

Working pressure (Mpa)

14

Rated flow (L/min) (2000r/min)

243

Pump

gear pump

Control valve

Hand-operated, sliding type

Cylinder, Bore x Rod x Stroke (mm)

Φ110xΦ65x1026

UNDER CARRIAGE

Sprocket

Segmented

No. of carrier roller (each side)

2

No. of track rollers (each side)

6(4 Single, 2double)

Track tension

Hydraulic-adjusted

Floating seals are used in all sprockets, track rollers, carrier rollers and front idlers
