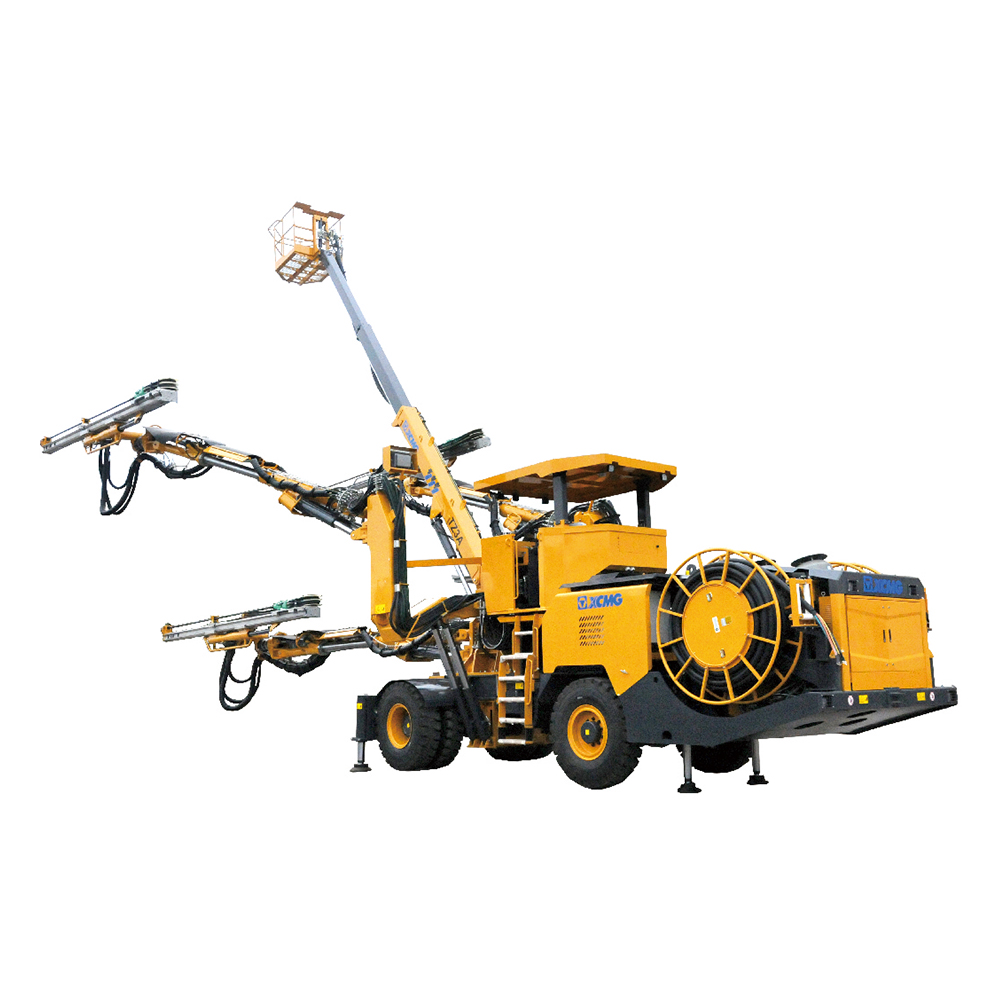

XCMG Official TZ3S Computer-aided three-boom hydraulic pilot drill jambo

  • XCMG Official TZ3S Computer-aided three-boom hydraulic pilot drill jambo
  • XCMG Official TZ3S Computer-aided three-boom hydraulic pilot drill jambo
  • XCMG Official TZ3S Computer-aided three-boom hydraulic pilot drill jambo

Share:
XCMG Official TZ3S Computer-aided three-boom hydraulic pilot drill jambo
FOB for Sanitary Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Model: TZ3S
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG Official TZ3S Computer-aided three-boom hydraulic pilot drill jambo
XCMG Official TZ3S Computer-aided three-boom hydraulic pilot drill jambo
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
Summary
  • Transport Dimension(L*W*H):17240×2926×3278 mm(opened)/17240×2926×3656 mm(closed)
  • Weight:50000 kg
  • Model Number: TZ3S
  • Brand Name:XCMG
  • Place of Origin:China
  • Certification:CE/ISO9001
Details
  • weight:50000.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:wheel
  • Maximum operating cover area:186.5 m²
  • Maximum operating height:13110 mm
  • Maximum operating width:16527 mm
  • Drill boom extended length:1602 mm
  • Drill boom lifting angle:(69/-43)°
  • Tilt angle for propeller:±45°
  • Propeller tilt angle:360°
  • Propeller compensation length:1800 mm
  • Maximum propulsive force:22.5 kN
  • Drill hole depth:5140/6015mm
  • Impact power of gadder:18.8/31 kW
  • Impact frequency of gadder:47/(63-72)Hz
  • Swing torque of gadder:780/671N·m
  • Diameter for dill hole:Φ43—Φ140 mm
  • Water flushing pressure:10—15 bar
  • Gas lubrication pressure:2—4 bar
  • Lifting height for work service platform:12000 mm
  • Swing width for work service platform:15500 mm
  • Rated load for work service platform:400 kg
  • Lifting height of cab:1200 mm
  • Lifting height of cab roof:700 mm
  • Total installed power:237/282 kW
  • External power supply:380/50 V/Hz
  • Maximum traveling speed:20 km/h
  • Maximum gradability:20°
  • Engine power:186 kW
  • Transport dimension:17240×2926×3655 mm
  • Curb weight:50000 kg


XCMG Official TZ3S Computer-aided three-boom hydraulic pilot drill jamboXCMG Official TZ3S Computer-aided three-boom hydraulic pilot drill jambo

Intelligent and efficient drilling equipment:



1. Five types of propellers and two drilling machine configurations (18KW and 33KW) realize deeper and faster drilling.

2. The multi-stage anti-seizure design reduces the drilling tool consumption by 10%.

3. The drilling pipe extension assisting system easily realizes the pipe-shed drilling, grouting-hole drilling, and advance geological exploration.

4. The enclosed cab with heating and air conditioning system and noise reduction design guarantees the comfortable and easy operations.

5. The intelligent computer guiding realizes accurate positioning of drilling boom and higher arrangement efficiency of holes.

XCMG Official TZ3S Computer-aided three-boom hydraulic pilot drill jambo

 Item Unit Parameter
 Maximum operation cover area 186.5
 Maximum operation height mm 13110
 Maximum operation width mm 16527
 Drill boom extended length mm 1602
 Drill boom lifting angle ° 69/-43
 Tit angle for propeller ° ±45
 Propeller tit angle ° 360
 Propeller compensation length mm 1800
 Maximum propulsive force kN 22.5
 Drill hole depth mm 5140/6015
 Impact power of gadder kW 18.8/31
 Impact frequency of gadder Hz 47/(63-72)
 Swing torque of gadder N·m 780/671
 Diameter for dill hole mm φ43-φ140
 Water flushing pressure bar October 15th
 Gas lubrication pressure bar February 4th
 Lifting height for working service platform mm 12000
Swing width for working service platform mm 15500
Rated load for working service platform kg 400
Lifting height of cab mm 1200
 Lifting height of cab roof mm 700
Total installed power kW 237/282
External power supply V/Hz 380/50
 Maximum traveling speed km/h 20
 Maximum gradability ° 20
 Engine power kW 186
Transport dimension(L×W×H) mm 17240*2926*3278
Transport dimension(L×W×H) mm 17240*2926*3655
Curb weight kg 50000

XCMG Official TZ3S Computer-aided three-boom hydraulic pilot drill jamboXCMG Official TZ3S Computer-aided three-boom hydraulic pilot drill jambo

XCMG Official TZ3S Computer-aided three-boom hydraulic pilot drill jamboXCMG Official TZ3S Computer-aided three-boom hydraulic pilot drill jambo

XCMG Official TZ3S Computer-aided three-boom hydraulic pilot drill jamboXCMG Official TZ3S Computer-aided three-boom hydraulic pilot drill jambo
Send your message to this supplier
Email:
to:
XCMG E-commerce Inc.
Content:
/6000

Your inquiry content must be between 20 to 6000 characters.

Quantity:
/ Set
Response Time : Within 24 hours
XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
